Wt::SDLColor

Wt::SDLColor Class Reference

#include <sdlcolor.h>

Inheritance diagram for Wt::SDLColor:

Inheritance graph
[legend]

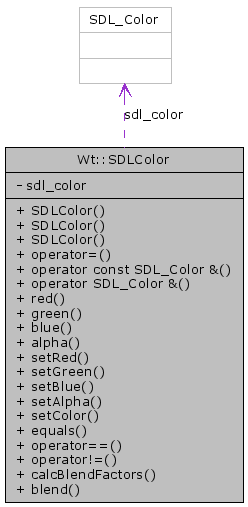

Collaboration diagram for Wt::SDLColor:

Collaboration graph
[legend]
List of all members.

Public Types

 Transparent = SDL_ALPHA_TRANSPARENT
 Opaque = SDL_ALPHA_OPAQUE
enum  { Transparent = SDL_ALPHA_TRANSPARENT, Opaque = SDL_ALPHA_OPAQUE }
 The alpha channel values for transparent and opaque. More...

Public Member Functions

 SDLColor ()
 Default constructor (opaque black).
 SDLColor (int red, int green, int blue, int alpha=Opaque)
 Construct from a triple/quadruple. (R, G, B, A).
 SDLColor (const SDL_Color &color)
 constructor from a base object
SDLColor & operator= (const SDL_Color &color)
 assign operator
 operator const SDL_Color & () const
 operator SDL_Color & ()
int red () const
int green () const
int blue () const
int alpha () const
void setRed (int red)
void setGreen (int green)
void setBlue (int blue)
void setAlpha (int alpha)
void setColor (int red, int green, int blue, int alpha)
bool equals (const SDLColor &other) const
 Compares colors (without alpha channel !).
bool operator== (const SDLColor &other) const
bool operator!= (const SDLColor &other) const
 Inequality comparison.

Static Public Member Functions

static void calcBlendFactors (int factor, int &new_factor, int &old_factor)
static SDLColor blend (const SDLColor &old_color, int old_factor, const SDLColor &new_color, int new_factor, int new_alpha_factor=Transparent, int old_alpha_factor=Opaque)

Private Attributes

SDL_Color sdl_color

Detailed Description

Note:
don't change object size to keep SDL_Color compatibility. that means:

Definition at line 37 of file sdlcolor.h.

Member Enumeration Documentation

anonymous enum

The alpha channel values for transparent and opaque.

Enumerator:
Transparent
Opaque

Definition at line 111 of file sdlcolor.h.

00111          {
00112         Transparent = SDL_ALPHA_TRANSPARENT,
00113         Opaque = SDL_ALPHA_OPAQUE
00114     };

Constructor & Destructor Documentation

Wt::SDLColor::SDLColor (  )  [inline]

Default constructor (opaque black).

Definition at line 40 of file sdlcolor.h.

References Opaque, and setColor().

Referenced by blend().

00040                {
00041         assert(sizeof(SDLColor) == sizeof(SDL_Color));
00042         setColor(0, 0, 0, Opaque);
00043     }

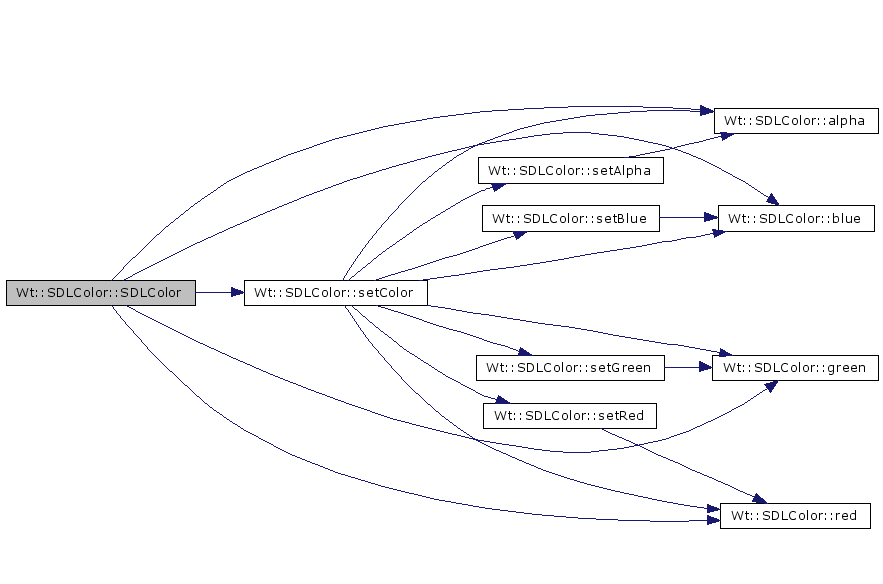

Here is the call graph for this function:

Wt::SDLColor::SDLColor ( int  red,
int  green,
int  blue,
int  alpha = Opaque
) [inline]

Construct from a triple/quadruple. (R, G, B, A).

Definition at line 46 of file sdlcolor.h.

References alpha(), blue(), green(), red(), and setColor().

00046                                                                {
00047         assert(sizeof(SDLColor) == sizeof(SDL_Color));
00048         setColor(red, green, blue, alpha);
00049     }

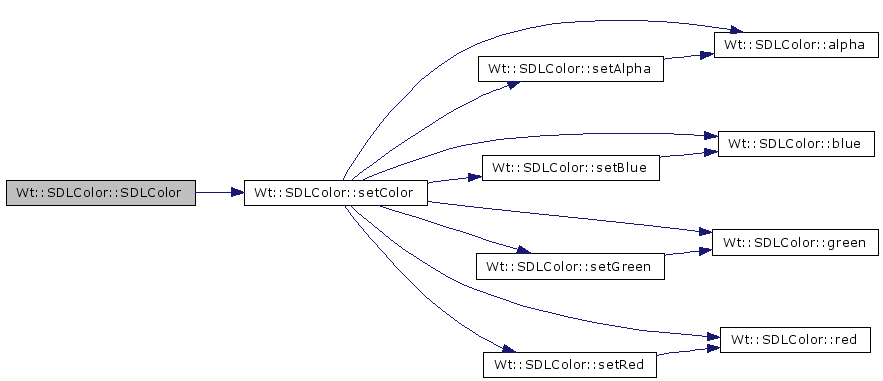

Here is the call graph for this function:

Wt::SDLColor::SDLColor ( const SDL_Color &  color  )  [inline]

constructor from a base object

Definition at line 52 of file sdlcolor.h.

00053             : sdl_color(color) {
00054         assert(sizeof(SDLColor) == sizeof(SDL_Color));
00055     }

Member Function Documentation

int Wt::SDLColor::alpha (  )  const [inline]

Definition at line 83 of file sdlcolor.h.

References sdl_color.

Referenced by blend(), Wt::PixmapOf< Wt::SDLSurface >::blitAlphaBlend(), Wt::Painter::drawText(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), SDLColor(), setAlpha(), and setColor().

00083                       {
00084         return sdl_color.unused;
00085     }

static SDLColor Wt::SDLColor::blend ( const SDLColor &  old_color,
int  old_factor,
const SDLColor &  new_color,
int  new_factor,
int  new_alpha_factor = Transparent,
int  old_alpha_factor = Opaque
) [inline, static]

Definition at line 140 of file sdlcolor.h.

References alpha(), blue(), green(), red(), and SDLColor().

Referenced by Wt::PixmapOf< Wt::SDLSurface >::blend(), and Wt::PixmapOf< Wt::SDLSurface >::blitAlphaBlend().

00142                                                                                              {
00143
00144         return SDLColor((new_factor * new_color.red() + old_factor * old_color.red()) / 255,
00145                         (new_factor * new_color.green() + old_factor * old_color.green()) / 255,
00146                         (new_factor * new_color.blue() + old_factor * old_color.blue()) / 255,
00147                         (new_alpha_factor * new_color.alpha() + old_alpha_factor * old_color.alpha()) / 255);
00148     }

Here is the call graph for this function:

int Wt::SDLColor::blue (  )  const [inline]

Definition at line 79 of file sdlcolor.h.

References sdl_color.

Referenced by blend(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), SDLColor(), setBlue(), and setColor().

00079                      {
00080         return sdl_color.b;
00081     }

static void Wt::SDLColor::calcBlendFactors ( int  factor,
int &  new_factor,
int &  old_factor
) [inline, static]

Definition at line 132 of file sdlcolor.h.

References Opaque.

Referenced by Wt::PixmapOf< Wt::SDLSurface >::blend(), and Wt::PixmapOf< Wt::SDLSurface >::blitAlphaBlend().

00132                                                                                {
00133         // it won't work in previous SDL
00134         assert(Opaque);
00135         // transparent == 0
00136         new_factor = factor;
00137         old_factor = Opaque - new_factor;
00138     }

bool Wt::SDLColor::equals ( const SDLColor &  other  )  const [inline]

Compares colors (without alpha channel !).

Definition at line 117 of file sdlcolor.h.

References sdl_color.

00117                                              {
00118         return sdl_color.r == other.sdl_color.r &&
00119                sdl_color.g == other.sdl_color.g &&
00120                sdl_color.b == other.sdl_color.b;
00121     }

int Wt::SDLColor::green (  )  const [inline]

Definition at line 75 of file sdlcolor.h.

References sdl_color.

Referenced by blend(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), SDLColor(), setColor(), and setGreen().

00075                       {
00076         return sdl_color.g;
00077     }

Wt::SDLColor::operator const SDL_Color & (  )  const [inline]

Definition at line 63 of file sdlcolor.h.

References sdl_color.

00063                                        {
00064         return sdl_color;
00065     }

Wt::SDLColor::operator SDL_Color & (  )  [inline]

Definition at line 67 of file sdlcolor.h.

References sdl_color.

00067                             {
00068         return sdl_color;
00069     }

bool Wt::SDLColor::operator!= ( const SDLColor &  other  )  const [inline]

Inequality comparison.

Definition at line 128 of file sdlcolor.h.

00128                                                  {
00129         return !(*this == other);
00130     }

SDLColor& Wt::SDLColor::operator= ( const SDL_Color &  color  )  [inline]

assign operator

Definition at line 58 of file sdlcolor.h.

References sdl_color.

00058                                                 {
00059         sdl_color = color;
00060         return *this;
00061     }

bool Wt::SDLColor::operator== ( const SDLColor &  other  )  const [inline]

Definition at line 123 of file sdlcolor.h.

References sdl_color.

00123                                                  {
00124         return (memcmp(&sdl_color, &other.sdl_color, sizeof(SDL_Color)) == 0);
00125     }

int Wt::SDLColor::red (  )  const [inline]

Definition at line 71 of file sdlcolor.h.

References sdl_color.

Referenced by blend(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), SDLColor(), setColor(), and setRed().

00071                     {
00072         return sdl_color.r;
00073     }

void Wt::SDLColor::setAlpha ( int  alpha  )  [inline]

Definition at line 99 of file sdlcolor.h.

References alpha(), and sdl_color.

Referenced by Wt::PushButton::drawButton(), and setColor().

00099                              {
00100         sdl_color.unused = alpha;
00101     }

Here is the call graph for this function:

void Wt::SDLColor::setBlue ( int  blue  )  [inline]

Definition at line 95 of file sdlcolor.h.

References blue(), and sdl_color.

Referenced by setColor().

00095                            {
00096         sdl_color.b = blue;
00097     }

Here is the call graph for this function:

void Wt::SDLColor::setColor ( int  red,
int  green,
int  blue,
int  alpha
) [inline]

Definition at line 103 of file sdlcolor.h.

References alpha(), blue(), green(), red(), setAlpha(), setBlue(), setGreen(), and setRed().

Referenced by SDLColor().

00103                                                            {
00104         setRed(red);
00105         setGreen(green);
00106         setBlue(blue);
00107         setAlpha(alpha);
00108     }

Here is the call graph for this function:

void Wt::SDLColor::setGreen ( int  green  )  [inline]

Definition at line 91 of file sdlcolor.h.

References green(), and sdl_color.

Referenced by setColor().

00091                              {
00092         sdl_color.g = green;
00093     }

Here is the call graph for this function:

void Wt::SDLColor::setRed ( int  red  )  [inline]

Definition at line 87 of file sdlcolor.h.

References red(), and sdl_color.

Referenced by setColor().

00087                          {
00088         sdl_color.r = red;
00089     }

Here is the call graph for this function:

Member Data Documentation

SDL_Color Wt::SDLColor::sdl_color [private]

Definition at line 151 of file sdlcolor.h.

Referenced by alpha(), blue(), equals(), green(), operator const SDL_Color &(), operator SDL_Color &(), operator=(), operator==(), red(), setAlpha(), setBlue(), setGreen(), and setRed().

The documentation for this class was generated from the following file:

Generated Fri Jul 28 19:31:42 2006.
