wt: Wt::Layout Class Reference

typedef std::list<Object*> Wt::Object::List [inherited]

Definition at line 47 of file object.h.

Wt::Layout::Layout	(	Widget *	parent,
		int	margin = `0`,
		int	spacing = `-1`,
		const std::string &	name = `"Layout::anon"`
	)

Definition at line 77 of file layout.cpp.

References init(), Wt::Object::parent(), and Wt::Application::sendPostedEvents().

00079         : Object(parent, name),
00080         LayoutItem(),
00081         margin(margin),
00082         spacing(spacing),
00083         autoAdd(false),
00084         deleted_li_(0),
00085 width_as_primary_length(true) {
00086     init();
00087     if (parent)
00088         parent->setLayout(this);
00089     Application::sendPostedEvents();
00090 }

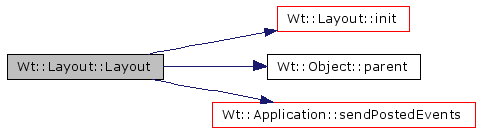

Here is the call graph for this function:

Wt::Layout::Layout	(	Layout *	parentLayout,
		int	margin = `0`,
		int	spacing = `-1`,
		const std::string &	name = `"Layout::anon"`
	)

Definition at line 92 of file layout.cpp.

References init(), Wt::Object::parent(), and Wt::Application::sendPostedEvents().

00094         : Object(parent, name),
00095         LayoutItem(),
00096         margin(margin),
00097         spacing(spacing),
00098         autoAdd(false),
00099         deleted_li_(0),
00100 width_as_primary_length(true) {
00101     init();
00102     parent->addItem(this);
00103     Application::sendPostedEvents();
00104 }

Here is the call graph for this function:

Wt::Layout::Layout	(	int	spacing = `-1`,
		const std::string &	name = `"Layout::anon"`
	)

Definition at line 106 of file layout.cpp.

References init(), and Wt::Application::sendPostedEvents().

00107         : Object(0, name),
00108         LayoutItem(),
00109         margin(0),
00110         spacing(spacing),
00111         autoAdd(false),
00112         deleted_li_(0),
00113 width_as_primary_length(true) {
00114     init();
00115     Application::sendPostedEvents();
00116 }

Here is the call graph for this function:

virtual Wt::Layout::~Layout ( ) [inline, virtual]

Definition at line 279 of file layout.h.

References markDeleted(), Wt::Object::parent(), and removeItem().

00279                       {
00280         Layout *l = dynamic_cast<Layout *>(parent());
00281         if (l) {
00282             l->markDeleted(this);
00283             l->removeItem(this);
00284         }
00285     }

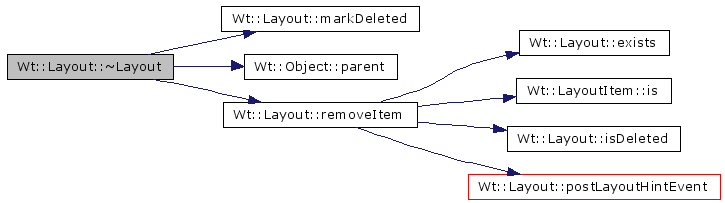

Here is the call graph for this function:

void Wt::Layout::addItem ( LayoutItem * li ) [virtual]

Reimplemented in Wt::GridLayout, Wt::LayoutStdContainer< Container >, Wt::BoxLayout, Wt::LayoutStdContainer< Wt::Matrix< MatrixLayoutItemCompound > >, Wt::LayoutStdContainer< std::list< CascadeLayoutItemCompound > >, and Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >.

Definition at line 143 of file layout.cpp.

References Wt::Object::destroyed, exists(), on_wobject_item_death(), postLayoutHintEvent(), Wt::Object::reparent(), and Wt::LayoutItem::type().

Referenced by Wt::Box::add(), Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >::addItem(), Wt::GridLayout::addItem(), Wt::BoxLayout::appendItem(), eventFilter(), and Wt::BoxLayout::prependItem().

00143                                    {
00144     assert(!exists(li));
00145
00146     // Here we care only for rogue add statements of fully created
00147     // objects and if they are layouts we put them under our
00148     // ownership. If li is already children of this then reparent
00149     // is a nop
00150     Layout *l;
00151     Object *child;
00152     if ((l = li->type<Layout *>())) {
00153         l->reparent(this);
00154     } else if ((child = li->type<Object *>())) {
00155         child->destroyed.connect(
00156             sigc::slot1<void, const Object *>(
00157                 sigc::mem_fun(*this, &Layout::on_wobject_item_death)));
00158     }
00159     postLayoutHintEvent();
00160 }

Here is the call graph for this function:

void Wt::Layout::adjustMaximumSize ( int margin ) [protected]

Definition at line 50 of file layout.cpp.

References margin, Wt::LayoutItem::maximumSize(), and Wt::LayoutItem::setMaximumSize().

Referenced by init().

00050                                          {
00051     setMaximumSize(maximumSize() >> margin);
00052 }

Here is the call graph for this function:

virtual void Wt::Object::childEvent ( ChildEvent * ) [inline, protected, virtual, inherited]

event handling specialization

Reimplemented in Wt::Window::Frame.

Definition at line 146 of file object.h.

Referenced by Wt::Object::event().

00146 {}

List& Wt::Object::children ( ) [inline, inherited]

Definition at line 61 of file object.h.

References Wt::Object::children_.

00061                      {
00062         return children_;
00063     }

const List& Wt::Object::children ( ) const [inline, inherited]

Definition at line 57 of file object.h.

References Wt::Object::children_.

Referenced by Wt::RootWindow::blit_region_ex(), Wt::Widget::childAt(), Wt::Object::deleteAllChildren(), Wt::Object::deleteFirstChild(), Wt::Object::deleteLastChild(), Wt::Widget::focusNextPrevChild(), Wt::Widget::fontChange(), Wt::Widget::lower(), Wt::postLayoutHintEventRecursively(), and Wt::Widget::raise().

00057                                  {
00058         return children_;
00059     }

virtual void Wt::Object::customEvent ( CustomEvent * ) [inline, protected, virtual, inherited]

Definition at line 147 of file object.h.

Referenced by Wt::Object::event().

00147 {}

template<typename T>

void Wt::Object::deleteAllChildren ( ) [inline, inherited]

Definition at line 106 of file object.h.

References Wt::Object::children().

00106                              {
00107         List::iterator it(children().begin());
00108         List::iterator end(children().end());
00109
00110         while (it != end) {
00111             T *t = dynamic_cast<T *>(*it);
00112             // before iteration invalidation
00113             ++it;
00114             // this will invalidate the iterator
00115             if (t) {
00116                 delete t;
00117             }
00118         }
00119     }

Here is the call graph for this function:

template<typename T>

void Wt::Object::deleteFirstChild ( ) [inline, inherited]

Definition at line 72 of file object.h.

References Wt::Object::children().

00072                             {
00073         List::iterator it(children().begin());
00074         List::iterator end(children().end());
00075
00076         while (it != end) {
00077             T *t = dynamic_cast<T *>(*it);
00078             // before iteration invalidation
00079             ++it;
00080             // this will invalidate the iterator
00081             if (t) {
00082                 delete t;
00083                 break;
00084             }
00085         }
00086     }

Here is the call graph for this function:

template<typename T>

void Wt::Object::deleteLastChild ( ) [inline, inherited]

Definition at line 89 of file object.h.

References Wt::Object::children().

00089                            {
00090         List::reverse_iterator it(children().rbegin());
00091         List::reverse_iterator end(children().rend());
00092
00093         while (it != end) {
00094             T *t = dynamic_cast<T *>(*it);
00095             // before iteration invalidation
00096             ++it;
00097             // this will invalidate the iterator
00098             if (t) {
00099                 delete t;
00100                 break;
00101             }
00102         }
00103     }

Here is the call graph for this function:

void Wt::Layout::enforce ( ) [protected]

enforces the layout in the mainWidget() children and layouts

it can be only called if there is a main widget

Definition at line 336 of file layout.cpp.

References Wt::LayoutItem::geometry(), Wt::LayoutItem::invalidateRecursively(), mainWidget(), minimumSize(), setGeometry(), sizeHint(), and Wt::Widget::updateGeometry().

Referenced by eventFilter().

00336                      {
00337     const Rect rect = geometry();
00338     const Size min_size = minimumSize();
00339     const Size hint_size = sizeHint();
00340
00341     // top downn invalidate across one widget only
00342     invalidateRecursively();
00343     // calls the virtual reimplementations
00344     setGeometry(rect);
00345     // this will notify parent of mainWidget() if exists
00346     if (rect != geometry() ||
00347             hint_size != sizeHint() ||
00348             min_size != minimumSize()) {
00349         mainWidget()->updateGeometry();
00350     }
00351 }

Here is the call graph for this function:

bool Wt::Object::event ( Event * e ) [virtual, inherited]

event handling

Reimplemented in Wt::Application, and Wt::Widget.

Definition at line 173 of file object.cpp.

References Wt::Object::childEvent(), Wt::Event::ChildInserted, Wt::Event::ChildRemoved, Wt::Object::customEvent(), Wt::Object::filterEvent(), Wt::SDLTimer::scheduleNext(), Wt::Object::timer(), Wt::Event::Timer, Wt::Object::timerEvent(), Wt::Event::type(), and Wt::Event::User.

Referenced by Wt::Widget::event(), Wt::Application::notify(), and Wt::Application::postEvent().

00173                            {
00174     bool handled = true;
00175
00176     if (filterEvent(e))
00177         return true;
00178
00179     switch (e->type()) {
00180     case Event::Timer: {
00181             TimerEvent *te = static_cast<TimerEvent *>(e);
00182             int id = te->timerid();
00183             if (timer(id)) {
00184                 timerEvent(te);
00185             }
00186             // if it is signle shot it may have been killed
00187             // during eventhandling
00188             SDLTimer *t = timer(id);
00189             if (t)
00190                 t->scheduleNext();
00191         }
00192         break;
00193     case Event::ChildInserted:
00194     case Event::ChildRemoved:
00195         childEvent(static_cast<ChildEvent *>(e));
00196         break;
00197     default:
00198         if (e->type() >= Event::User) {
00199             customEvent(static_cast<CustomEvent *>(e));
00200         } else {
00201             handled = false;
00202         }
00203         break;
00204     }
00205
00206     return handled;
00207 }

Here is the call graph for this function:

bool Wt::Layout::eventFilter	(	Object *	obj,
		Event *	e
	)			`[virtual]`

we get events from the mainWidget only if exists. The type of events are:

ChildEvent (Inserted or ChildRemoved)
ResizeEvent
LayoutHintEvent

The following uses cases has to be covered:

case 1: A widget w deep in the hierarchy changes something (sizeHint, minimumSize, sizePolicy etc..)
case 2: insert/remove layout item
case 3: add remove child in a widget with a tll
case 4: parent widget gets resized

    // we monitor the managed widgets
    // top level layout grabs it (if tll exists)
    Layout::eventFilter() {
        // on layoutHint event calls
        Layout::enforce();

        // on resize calls
        Layout::setGeometry(r);

        // on child insert / remove in mainWidget
        // this implies enforce called in the next event processing
            Application::postEvent(mainWidget(), new LayoutHintEvent());
    }

Note:

if there is no top level layout then layout is not automatically enforced
use cases 1,2,3,4 are working if we assume the presence of a tll
we do a lot of invalidateRecursively()
widgets can only have one layout child (setLayout(), layout()) and no more
a widget cannot tell if it is managed or not
Layout::setGeometry() reimplementations must call base class implementation

Reimplemented from Wt::Object.

Definition at line 228 of file layout.cpp.

References addItem(), autoAdd, Wt::ChildEvent::child(), Wt::Event::ChildInserted, Wt::Event::ChildRemoved, enforce(), Wt::Object::eventFilter(), Wt::LayoutItem::geometry(), Wt::Event::LayoutHint, Wt::Event::Move, removeItem(), Wt::Event::Resize, Wt::LayoutItem::setGeometry(), setGeometry(), trace, and Wt::Event::type().

00228                                               {
00229     Widget *w;
00230
00231     switch (e->type()) {
00232     case Event::ChildInserted:
00233         if (autoAdd) {
00234             ChildEvent *ce = static_cast<ChildEvent *>(e);
00235             Object *child = ce->child();
00236             // It is not possible to add other widgets layout. They will
00237             // be toplevels and that means we are dead
00238             LayoutItem *li = dynamic_cast<LayoutItem *>(child);
00239
00240             //assert(li == this);
00241             // we can only insert Widget items as childs of our mainWidget
00242             const bool is_window_frame = dynamic_cast<Window::Frame *>(child);
00243             const Window *wnd = dynamic_cast<Window *>(child);
00244             const bool is_frameless_window = wnd &&
00245                                              !dynamic_cast<Window::Frame *>(wnd->parent());
00246             if (li != this && !is_window_frame && !is_frameless_window
00247                     && (w = dynamic_cast<Widget *>(child))) {
00248                 trace("layout") << "Inserting to layout "
00249                 << this << " child " << w << std::endl;
00250                 addItem(w);
00251             }
00252         }
00253         break;
00254     case Event::ChildRemoved: {
00255             // we have to handle the reparenting case.
00256             // delete is handled gracefully. Problem is we don't
00257             // know if it is deleted. But if it is deleted it will
00258             // have been already removed. So we use static_cast to
00259             // go up and down the inheritance tree. It is also possible
00260             // that we don't manage this child.
00261             ChildEvent *ce = static_cast<ChildEvent *>(e);
00262             w = static_cast<Widget *>(ce->child());
00263             LayoutItem *li = static_cast<LayoutItem *>(w);
00264             // if item is already dead (removed) removeItem will do nothing
00265             removeItem(li);
00266         }
00267         break;
00268     case Event::Resize:
00269         w = dynamic_cast<Widget *>(obj);
00270         trace("layout") << "Widget Resize: " << w
00271         << " caused layout resize" << std::endl;
00272         setGeometry(w->geometry());
00273         break;
00274     case Event::Move:
00275         w = dynamic_cast<Widget *>(obj);
00276         trace("layout") << "Widget move: " << w
00277         << " caused layout move" << std::endl;
00278         LayoutItem::setGeometry(w->geometry());
00279         break;
00280     case Event::LayoutHint:
00281         enforce();
00282         break;
00283     default:
00284         break;
00285     }
00286
00287     return Object::eventFilter(obj, e);
00288 }

Here is the call graph for this function:

virtual bool Wt::Layout::exists ( const LayoutItem * li ) const [protected, pure virtual]

Implemented in Wt::LayoutStdContainer< Container >, Wt::LayoutStdContainer< Wt::Matrix< MatrixLayoutItemCompound > >, Wt::LayoutStdContainer< std::list< CascadeLayoutItemCompound > >, and Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >.

Referenced by addItem(), and removeItem().

virtual SizePolicy::ExpandData Wt::LayoutItem::expanding ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 170 of file layout.h.

References Wt::SizePolicy::expandData, and Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::expanding().

00170                                                    {
00171         return size_policy_.expandData;
00172     }

bool Wt::Layout::expandingPrimally ( const SizePolicy & sp ) const [protected]

Definition at line 410 of file layout.cpp.

References Wt::SizePolicy::expandingHorizontally(), Wt::SizePolicy::expandingVertically(), and width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00410                                                          {
00411     return (width_as_primary_length) ?
00412            sp.expandingHorizontally() : sp.expandingVertically();
00413 }

Here is the call graph for this function:

bool Wt::Object::filterEvent ( Event * ) [protected, inherited]

Definition at line 164 of file object.cpp.

References Wt::Object::eventFilters_.

Referenced by Wt::Object::event(), and Wt::Application::event().

00164                                  {
00165     for (List::iterator filter(eventFilters_.begin()),
00166             end(eventFilters_.end()); filter != end; ++filter) {
00167         if ((*filter)->eventFilter(this, e))
00168             return true;
00169     }
00170     return false;
00171 }

virtual const Rect& Wt::LayoutItem::geometry ( ) const [inline, virtual, inherited]

return the widget's geometry relative to its parent

Definition at line 175 of file layout.h.

References Wt::LayoutItem::geometry_rect_.

Referenced by Wt::Label::drawContents(), enforce(), eventFilter(), Wt::Window::frameGeometry(), Wt::Widget::height(), Wt::Widget::mapFromGlobal(), Wt::Widget::mapFromParent(), Wt::Widget::mapToGlobal(), Wt::Widget::mapToParent(), Wt::Window::Frame::mousePressEvent(), Wt::Widget::move(), Wt::Widget::resize(), Wt::Widget::setGeometry(), Wt::BoxLayout::setGeometry(), Wt::GridLayout::setGeometry(), Wt::CascadeLayout::setGeometry(), Wt::Widget::size(), Wt::Widget::width(), and Wt::Widget::~Widget().

00175                                          {
00176         return geometry_rect_;
00177     }

Point Wt::Layout::getPoint	(	int	primary_offset,
		int	secondary_offset
	)			const `[protected]`

Definition at line 376 of file layout.cpp.

References width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00376                                                                      {
00377     return (width_as_primary_length) ?
00378            Point(primary_offset, secondary_offset) :
00379            Point(secondary_offset, primary_offset);
00380 }

Rect Wt::Layout::getRect	(	int	primary_offset,
		int	secondary_offset,
		int	primary_size,
		int	secondary_size
	)			const `[protected]`

Definition at line 388 of file layout.cpp.

References width_as_primary_length.

00389                                                                  {
00390     return (width_as_primary_length) ?
00391            Rect(primary_offset, secondary_offset, primary_size, secondary_size) :
00392            Rect(secondary_offset, primary_offset, secondary_size, primary_size);
00393 }

Size Wt::Layout::getSize	(	int	primary,
		int	secondary
	)			const `[protected]`

Definition at line 382 of file layout.cpp.

References width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00382                                                      {
00383     return (width_as_primary_length) ?
00384            Size(primary, secondary) :
00385            Size(secondary, primary);
00386 }

virtual bool Wt::LayoutItem::hasHeightForWidth ( ) const [inline, virtual, inherited]

Definition at line 192 of file layout.h.

00192                                            {
00193         return false;
00194     }

virtual int Wt::LayoutItem::heightForWidth ( int ) const [inline, virtual, inherited]

Definition at line 195 of file layout.h.

00195                                           {
00196         return -1;
00197     }

void Wt::Layout::init ( ) [private]

Reimplemented in Wt::CascadeLayout, and Wt::GridLayout.

Definition at line 54 of file layout.cpp.

References Wt::WVarBase< VARTYPE >::aboutToChange, adjustMaximumSize(), autoAdd, Wt::WVarBase< VARTYPE >::changed, Wt::Signal012< R, ARG1, ARG2 >::connect(), Wt::Signal012M< R, ARG1, ARG2, M >::connect(), margin, onAboutToChangeAutoAdd(), onSpacingOverride(), Wt::WVarBase< VARTYPE >::override, postLayoutHintEvent(), and spacing.

Referenced by Layout().

00054                   {
00055     autoAdd.aboutToChange.connect(
00056         sigc::slot1<bool, bool>(
00057             sigc::mem_fun(*this, &Layout::onAboutToChangeAutoAdd)));
00058
00059     spacing.override.connect(
00060         sigc::slot1<int, int>(
00061             sigc::mem_fun(*this, &Layout::onSpacingOverride)));
00062
00063     sigc::slot0<void> post_layouthint_slot = sigc::mem_fun(*this,
00064             &Layout::postLayoutHintEvent);
00065
00066     spacing.changed.connect(post_layouthint_slot);
00067
00068     margin.changed.connect(
00069         sigc::slot1<void, int>(
00070             sigc::mem_fun(*this,
00071                           &Layout::adjustMaximumSize)));
00072     margin.changed.connect(post_layouthint_slot);
00073
00074     adjustMaximumSize(margin);
00075 }

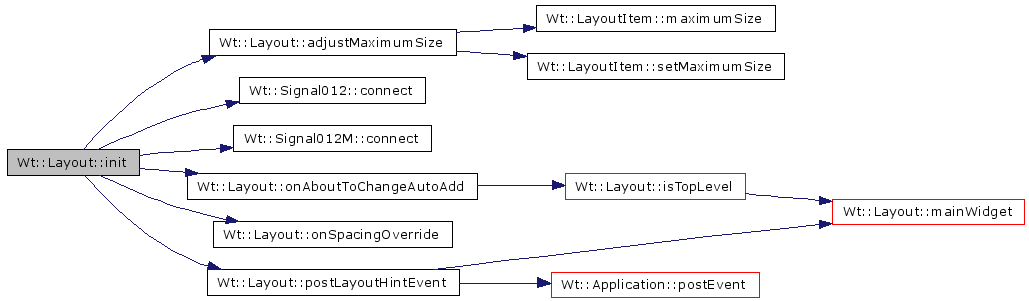

Here is the call graph for this function:

void Wt::Object::insertChild ( Object * obj ) [virtual, inherited]

Definition at line 81 of file object.cpp.

References Wt::Event::ChildInserted, Wt::Object::children_, Wt::Object::parent_, and Wt::Application::postEvent().

Referenced by Wt::Object::Object(), and Wt::Object::reparent().

00081                                     {
00082     children_.push_back(obj);
00083     obj->parent_ = this;
00084     Event *child_event = new ChildEvent(Event::ChildInserted, obj);
00085     Application::postEvent(this, child_event);
00086 }

Here is the call graph for this function:

void Wt::Object::installEventFilter ( const Object * filterObj ) [inherited]

Definition at line 124 of file object.cpp.

References Wt::Object::destroyed, Wt::Object::eventFilters_, and Wt::Object::removeEventFilter().

Referenced by Wt::Widget::setLayout().

00124                                                        {
00125     // we have to deconstify here. We cannot deliver event to const objects
00126     Object *obj = const_cast<Object *>(filterObj);
00127     eventFilters_.push_back(obj);
00128     obj->destroyed.connect(sigc::slot1<void, const Object *>(
00129                                sigc::mem_fun(*this, &Object::removeEventFilter)));
00130 }

Here is the call graph for this function:

bool Wt::LayoutItem::invalidated ( ) const [inline, protected, inherited]

Definition at line 227 of file layout.h.

References Wt::LayoutItem::invalidated_.

Referenced by minimumSize(), and sizeHint().

00227                              {
00228         return invalidated_;
00229     }

void Wt::LayoutItem::invalidateRecursively ( ) [protected, inherited]

Definition at line 28 of file layout.cpp.

References Wt::LayoutIterator::finish(), Wt::LayoutItem::invalidated_, Wt::LayoutItem::isNonEmpty(), Wt::LayoutItem::iterator(), Wt::LayoutIterator::start(), and trace.

Referenced by enforce().

00028                                        {
00029     // if null means empty item. don't bother (used on Grid)
00030     // we can't handle it in isEmpty() because it is virtual
00031     // and the null dereference crashes
00032     trace("layout") << "Trying to invalidate " << this
00033     << " == "  << dynamic_cast<Object *>(this) << std::endl;
00034     if (isNonEmpty()) {
00035         trace("layout") << "Invalidating " << this << std::endl;
00036         LayoutIterator it = iterator();
00037         invalidated_ = true;
00038         for (it.start(); !it.finish(); it++) {
00039             LayoutItem *li = *it;
00040             li->invalidateRecursively();
00041         }
00042         trace("layout") << "Invalidation finished " << this << std::endl;
00043     }
00044 }

Here is the call graph for this function:

template<typename TEST_TYPE>

bool Wt::LayoutItem::is ( ) const [inline, inherited]

Definition at line 209 of file layout.h.

Referenced by Wt::Cascade::pop(), and removeItem().

00209                     {
00210         return (type<TEST_TYPE>() != 0);
00211     }

bool Wt::Layout::isDeleted ( LayoutItem * li ) const [inline, protected]

Definition at line 314 of file layout.h.

References deleted_li_.

Referenced by removeItem().

00314                                          {
00315         return deleted_li_ == li;
00316     }

bool Wt::Object::isDescendant ( const Object * p ) const [inherited]

Definition at line 67 of file object.cpp.

References Wt::Object::parent().

Referenced by Wt::SDLInput::EventInfo::EventInfo(), and Wt::SDLInput::handleKeyEvent().

00067                                                {
00068     if (!p)
00069         return false;
00070
00071     const Object *q = this;
00072
00073     do {
00074         if (p == q)
00075             return true;
00076     } while ((q = q->parent()));
00077
00078     return false;
00079 }

Here is the call graph for this function:

virtual bool Wt::LayoutItem::isEmpty ( ) const [inline, virtual, inherited]

Reimplemented in Wt::LayoutStdContainer< Container >, Wt::Widget, Wt::LayoutStdContainer< Wt::Matrix< MatrixLayoutItemCompound > >, Wt::LayoutStdContainer< std::list< CascadeLayoutItemCompound > >, and Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >.

Definition at line 184 of file layout.h.

Referenced by Wt::LayoutItem::isNonEmpty().

00184                                  {
00185         return false;
00186     }

bool Wt::LayoutItem::isNonEmpty ( ) const [inline, inherited]

Definition at line 188 of file layout.h.

References Wt::LayoutItem::isEmpty().

Referenced by Wt::LayoutItem::invalidateRecursively().

00188                             {
00189         return (this) ? !isEmpty() : false;
00190     }

Here is the call graph for this function:

bool Wt::Layout::isTopLevel ( ) const

Definition at line 129 of file layout.cpp.

References mainWidget(), and Wt::Object::parent().

Referenced by onAboutToChangeAutoAdd(), and setGeometry().

00129                               {
00130     return (parent() && mainWidget() == parent());
00131 }

Here is the call graph for this function:

bool Wt::Layout::isWidthPrimaryLength ( ) const [inline, protected]

Definition at line 321 of file layout.h.

References width_as_primary_length.

Referenced by Wt::GridLayout::calcEdge(), Wt::GridLayout::expandingPrimally(), Wt::GridLayout::mayGrowPrimally(), Wt::GridLayout::primaryCellItemLength(), Wt::GridLayout::primaryCellLength(), Wt::GridLayout::primaryHintLength(), Wt::GridLayout::primaryMinLength(), Wt::GridLayout::secondaryEdges(), Wt::GridLayout::secondaryEffectiveStretch(), Wt::GridLayout::secondaryExtraSpace(), Wt::GridLayout::secondaryStretch(), and Wt::Box::setStretchFactor().

00321                                       {
00322         return width_as_primary_length;
00323     }

virtual LayoutIterator Wt::LayoutItem::iterator ( ) [inline, virtual, inherited]

Reimplemented in Wt::LayoutStdContainer< Container >, Wt::LayoutStdContainer< Wt::Matrix< MatrixLayoutItemCompound > >, Wt::LayoutStdContainer< std::list< CascadeLayoutItemCompound > >, and Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >.

Definition at line 199 of file layout.h.

Referenced by Wt::LayoutItem::invalidateRecursively(), and setGeometry().

00199                                       {
00200         return LayoutIterator(new NullLayoutIterator());
00201     }

void Wt::Object::killTimer ( int id ) [inherited]

Definition at line 145 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Timer::stop().

00145                              {
00146     delete timers_[id];
00147     timers_.erase(id);
00148 }

void Wt::Object::killTimers ( ) [inherited]

Definition at line 150 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Object::~Object().

00150                         {
00151     uint n = timers_.size() + 1;
00152     for (uint i = 1; i < n; i++) {
00153         delete timers_[i];
00154     }
00155     timers_.clear();
00156 }

Widget * Wt::Layout::mainWidget ( ) const

Definition at line 118 of file layout.cpp.

References Wt::Object::parent().

Referenced by enforce(), isTopLevel(), postLayoutHintEvent(), Wt::BoxLayout::setGeometry(), setGeometry(), Wt::GridLayout::setGeometry(), and Wt::CascadeLayout::setGeometry().

00118                                  {
00119     const Object *p = this;
00120     while ((p = p->parent())) {
00121         Widget *w = dynamic_cast<Widget *>(const_cast<Object *>(p));
00122         if (w) {
00123             return w;
00124         }
00125     }
00126     return 0;
00127 }

Here is the call graph for this function:

void Wt::Layout::markDeleted ( LayoutItem * li ) [inline, protected]

Definition at line 311 of file layout.h.

References deleted_li_.

Referenced by on_wobject_item_death(), and ~Layout().

00311                                      {
00312         deleted_li_ = li;
00313     }

virtual Size Wt::LayoutItem::maximumSize ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 155 of file layout.h.

References Wt::LayoutItem::maximum_size_.

Referenced by adjustMaximumSize(), Wt::Widget::maximumSize(), and setGeometry().

00155                                      {
00156         return maximum_size_;
00157     }

bool Wt::Layout::mayGrowPrimally ( const SizePolicy & sp ) const [protected]

Definition at line 400 of file layout.cpp.

References Wt::SizePolicy::mayGrowHorizontally(), Wt::SizePolicy::mayGrowVertically(), and width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00400                                                        {
00401     return (width_as_primary_length) ?
00402            sp.mayGrowHorizontally() : sp.mayGrowVertically();
00403 }

Here is the call graph for this function:

bool Wt::Layout::mayShrinkPrimally ( const SizePolicy & sp ) const [protected]

Definition at line 405 of file layout.cpp.

References Wt::SizePolicy::mayShrinkHorizontally(), Wt::SizePolicy::mayShrinkVertically(), and width_as_primary_length.

00405                                                          {
00406     return (width_as_primary_length) ?
00407            sp.mayShrinkHorizontally() : sp.mayShrinkVertically();
00408 }

Here is the call graph for this function:

Size Wt::Layout::minimumSize ( ) const [virtual]

Reimplemented from Wt::LayoutItem.

Definition at line 415 of file layout.cpp.

References Wt::LayoutItem::invalidated(), and Wt::LayoutItem::minimumSize().

Referenced by Wt::GridLayout::calcEdge(), enforce(), Wt::Widget::minimumSize(), Wt::BoxLayout::setGeometry(), and setGeometry().

00415                                {
00416     if (invalidated()) {
00417         Layout &self(*const_cast<Layout *>(this));
00418         self.validate();
00419     }
00420     return LayoutItem::minimumSize();
00421 }

Here is the call graph for this function:

const std::string& Wt::Object::name ( ) const [inline, inherited]

Definition at line 124 of file object.h.

References Wt::Object::name_.

Referenced by Wt::operator<<(), Wt::Application::parseArgs(), and Wt::PushButton::setButtonSize().

00124                                   {
00125         return name_;
00126     }

void Wt::Layout::on_wobject_item_death ( const Object * obj ) [private]

Definition at line 180 of file layout.cpp.

References markDeleted(), and removeItem().

Referenced by addItem().

00180                                                     {
00181     // we cannot do dynamic_cast because Widget does not exist anymore
00182     Widget *w = static_cast<Widget *>(const_cast<Object *>(obj));
00183     LayoutItem *li = static_cast<LayoutItem *>(w);
00184     // do not delete this bastard. It is alerady deleted
00185     markDeleted(li);
00186     removeItem(li);
00187 }

Here is the call graph for this function:

bool Wt::Layout::onAboutToChangeAutoAdd ( bool auto_add ) [protected, virtual]

Definition at line 133 of file layout.cpp.

References isTopLevel().

Referenced by init().

00133                                                  {
00134     return (auto_add && !isTopLevel());
00135 }

Here is the call graph for this function:

int Wt::Layout::onSpacingOverride ( int spacing ) [protected, virtual]

Definition at line 46 of file layout.cpp.

References margin.

Referenced by init().

00046                                     {
00047     return (sp == -1) ? static_cast<int>(margin) : sp;
00048 }

Object* Wt::Object::parent ( ) const [inline, inherited]

Definition at line 53 of file object.h.

References Wt::Object::parent_.

Referenced by Wt::Widget::event(), Wt::Widget::focusNextPrevChild(), Wt::Window::Frame::Frame(), Wt::Widget::is_hidden(), Wt::Object::isDescendant(), isTopLevel(), Layout(), Wt::Widget::lower(), mainWidget(), Wt::operator<<(), Wt::Widget::paintEvent(), Wt::Widget::parentWidget(), Wt::Application::postEvent(), Wt::Widget::raise(), Wt::Widget::updateGeometry(), Wt::Widget::Widget(), Wt::Window::Window(), ~Layout(), and Wt::Widget::~Widget().

00053                            {
00054         return parent_;
00055     };

void Wt::Layout::postLayoutHintEvent ( ) [protected]

Definition at line 137 of file layout.cpp.

References mainWidget(), and Wt::Application::postEvent().

Referenced by addItem(), init(), Wt::CascadeLayout::init(), removeItem(), Wt::GridLayout::setColStretch(), and Wt::GridLayout::setRowStretch().

00137                                  {
00138     if (mainWidget()) {
00139         Application::postEvent(mainWidget(), new LayoutHintEvent());
00140     }
00141 }

Here is the call graph for this function:

int Wt::Layout::preferredLength	(	const LayoutItem *	li,
		bool	expand
	)			const `[protected]`

Definition at line 357 of file layout.cpp.

References Wt::LayoutItem::minimumSize(), primaryLength(), and Wt::LayoutItem::sizeHint().

Referenced by Wt::BoxLayout::setGeometry().

00357                                                                    {
00358     return primaryLength((expand) ? li->sizeHint() : li->minimumSize());
00359 }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::primaryLength ( const TYPE & t ) const [inline, protected]

Definition at line 326 of file layout.h.

References width_as_primary_length.

Referenced by Wt::GridLayout::calcEdge(), preferredLength(), Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00326                                            {
00327         return (width_as_primary_length) ? t.width() : t.height();
00328     }

template<typename TYPE>

int Wt::Layout::primaryOffset ( const TYPE & t ) const [protected]

Definition at line 367 of file layout.cpp.

References width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00367                                              {
00368     return (width_as_primary_length) ? t.left() : t.top();
00369 }

int Wt::Layout::primaryStretch ( const SizePolicy & sp ) const [protected]

Definition at line 395 of file layout.cpp.

References Wt::SizePolicy::horizontalStretch, Wt::SizePolicy::verticalStretch, and width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00395                                                      {
00396     return (width_as_primary_length) ?
00397            sp.horizontalStretch : sp.verticalStretch;
00398 }

void Wt::Object::removeChild ( Object * obj ) [virtual, inherited]

Definition at line 88 of file object.cpp.

References Wt::Event::ChildRemoved, Wt::Object::children_, Wt::Object::parent_, and Wt::Application::postEvent().

Referenced by Wt::Object::reparent(), and Wt::Object::~Object().

00088                                     {
00089     List::iterator end = children_.end();
00090     List::iterator p = find(children_.begin(), end, obj);
00091
00092     if (p != end) {
00093         children_.erase(p);
00094         obj->parent_ = 0;
00095         Event *child_event = new ChildEvent(Event::ChildRemoved, obj);
00096         Application::postEvent(this, child_event);
00097     }
00098 }

Here is the call graph for this function:

void Wt::Object::removeEventFilter ( const Object * obj ) [inherited]

Definition at line 132 of file object.cpp.

References Wt::Object::eventFilters_.

Referenced by Wt::Object::installEventFilter().

00132                                                 {
00133     List::iterator p, end(eventFilters_.end());
00134     p = find(eventFilters_.begin(), end, obj);
00135     if (p != end)
00136         eventFilters_.erase(p);
00137 }

bool Wt::Layout::removeItem ( LayoutItem * li ) [virtual]

returns true if a layoutitem is actually removed

Reimplemented in Wt::LayoutStdContainer< Container >, Wt::LayoutStdContainer< Wt::Matrix< MatrixLayoutItemCompound > >, Wt::LayoutStdContainer< std::list< CascadeLayoutItemCompound > >, and Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >.

Definition at line 162 of file layout.cpp.

References exists(), Wt::LayoutItem::is(), isDeleted(), and postLayoutHintEvent().

Referenced by eventFilter(), on_wobject_item_death(), Wt::LayoutStdContainer< std::list< BoxLayoutItemCompound > >::removeItem(), and ~Layout().

00162                                       {
00163     bool exist = exists(li);
00164     // It is possible to be asked to remove a non existing li
00165     if (exist) {
00166         // Delete only non Objects, Objects will be deleted by ~Object()
00167         // also delete child layouts here when removed but do not delete
00168         // them again if they are already deleted
00169
00170         if (!isDeleted(li) && (li->is<Layout *>() || !li->is<Object *>())
00171            ) {
00172             delete li;
00173         }
00174
00175         postLayoutHintEvent();
00176     }
00177     return exist;
00178 }

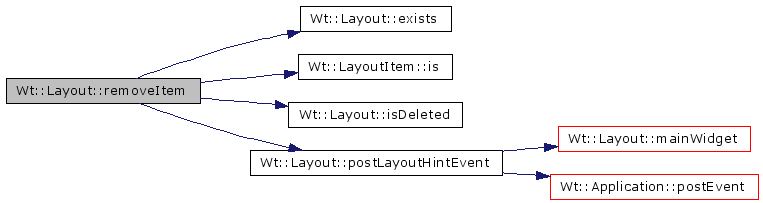

Here is the call graph for this function:

void Wt::Object::reparent ( Object * new_parent ) [inherited]

Definition at line 100 of file object.cpp.

References Wt::Object::insertChild(), Wt::Object::parent_, Wt::Object::removeChild(), and trace.

Referenced by addItem(), Wt::Widget::reparent(), and Wt::Widget::setLayout().

00100                                         {
00101     if (parent_ == new_parent)
00102         return;
00103     trace("obj") << "Reparenting " <<  this << std::endl;
00104
00105     if (parent_) {
00106         trace("obj") << "   Leaving parent " <<  parent_ << std::endl;
00107         parent_->removeChild(this);
00108     }
00109     if (new_parent) {
00110         trace("obj") << "   Going to new parent " <<  new_parent << std::endl;
00111         new_parent->insertChild(this);
00112     }
00113     parent_ = new_parent;
00114 }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::secondaryLength ( const TYPE & t ) const [protected]

Definition at line 362 of file layout.cpp.

References width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00362                                                {
00363     return (width_as_primary_length) ? t.height() : t.width();
00364 }

template<typename TYPE>

int Wt::Layout::secondaryOffset ( const TYPE & t ) const [protected]

Definition at line 372 of file layout.cpp.

References width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00372                                                {
00373     return (width_as_primary_length) ? t.top() : t.left();
00374 }

void Wt::Layout::setGeometry ( const Rect & r ) [virtual]

Reimplemented from Wt::LayoutItem.

Reimplemented in Wt::CascadeLayout, Wt::GridLayout, and Wt::BoxLayout.

Definition at line 290 of file layout.cpp.

References Wt::Size::boundedTo(), Wt::Size::contains(), Wt::Size::expandedTo(), Wt::LayoutIterator::finish(), Wt::Widget::isHidden(), isTopLevel(), isTrace, Wt::LayoutItem::iterator(), mainWidget(), margin, Wt::LayoutItem::maximumSize(), minimumSize(), Wt::LayoutItem::setGeometry(), Wt::Widget::setGeometry(), Wt::Rect::setSize(), Wt::Rect::size(), sizeHint(), Wt::LayoutIterator::start(), and trace.

Referenced by enforce(), eventFilter(), Wt::BoxLayout::setGeometry(), Wt::GridLayout::setGeometry(), and Wt::CascadeLayout::setGeometry().

00290                                       {
00291     Rect widget_rect = r;
00292
00293     if (isTopLevel()) {
00294         const Rect& layout_rect = r >> margin;
00295         Size new_size = layout_rect.size();
00296
00297         trace("layout") <<  "Is Widget hidden ? "
00298         << mainWidget()->isHidden() << std::endl;
00299         trace("layout") << this << " requested new_size " << new_size
00300         << " min_size " << minimumSize()
00301         << " hint_size " << sizeHint() << std::endl;
00302
00303         if (isTrace("layout")) {
00304             LayoutIterator it = iterator();
00305             for (it.start(); !it.finish(); it++) {
00306                 LayoutItem *li = *it;
00307                 if (li->is<Object *>()) {
00308                     trace("layout") << "Listing item " << dynamic_cast<Object *>(li)
00309                     << " min_size " << li->minimumSize()
00310                     << " hint_size " << li->sizeHint() << std::endl;
00311                 }
00312             }
00313         }
00314
00315         if (!new_size.contains(minimumSize())) {
00316             new_size = minimumSize().expandedTo(new_size);
00317         }
00318
00319         if (!maximumSize().contains(new_size)) {
00320             new_size = new_size.boundedTo(maximumSize());
00321         }
00322
00323         trace("layout") << this << " accepted new_size " << new_size << std::endl;
00324
00325         widget_rect.setSize(new_size << margin);
00326         mainWidget()->setGeometry(widget_rect);
00327     }
00328     trace("layout") << this << " Layout::setGeometry()" << widget_rect << std::endl;
00329     // It is weird but in the layout::LayoutItem component
00330     // we store widget's geometry (<< margin)
00331     LayoutItem::setGeometry(widget_rect);
00332 }

Here is the call graph for this function:

virtual void Wt::LayoutItem::setMaximumSize ( const Size & size ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 158 of file layout.h.

References Wt::LayoutItem::maximum_size_.

Referenced by adjustMaximumSize(), and Wt::Widget::setMaximumSize().

00158                                                   {
00159         maximum_size_ = size;
00160     }

virtual void Wt::LayoutItem::setMinimumSize ( const Size & size ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 151 of file layout.h.

References Wt::LayoutItem::minimum_size_.

Referenced by Wt::Widget::setMinimumSize(), Wt::BoxLayout::validate(), Wt::GridLayout::validate(), and Wt::CascadeLayout::validate().

00151                                                   {
00152         minimum_size_ = size;
00153     }

virtual void Wt::LayoutItem::setSizeHint ( const Size & size ) [inline, protected, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 231 of file layout.h.

References Wt::LayoutItem::size_hint_.

Referenced by Wt::Widget::setSizeHint(), Wt::BoxLayout::validate(), Wt::GridLayout::validate(), and Wt::CascadeLayout::validate().

00231                                                {
00232         size_hint_ = size;
00233     }

virtual void Wt::LayoutItem::setSizePolicy ( const SizePolicy & size_policy ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 166 of file layout.h.

References Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::setSizePolicy().

00166                                                               {
00167         size_policy_ = size_policy;
00168     }

void Wt::Layout::setWidthasPrimaryLength ( bool width = true ) [protected]

Definition at line 353 of file layout.cpp.

References width_as_primary_length.

Referenced by Wt::GridLayout::calcEdge().

00353                                                {
00354     width_as_primary_length = width;
00355 }

Size Wt::Layout::sizeHint ( ) const [virtual]

Reimplemented from Wt::LayoutItem.

Definition at line 423 of file layout.cpp.

References Wt::LayoutItem::invalidated(), and Wt::LayoutItem::sizeHint().

Referenced by Wt::GridLayout::calcEdge(), enforce(), Wt::BoxLayout::setGeometry(), setGeometry(), Wt::CascadeLayout::setGeometry(), and Wt::Widget::sizeHint().

00423                             {
00424     if (invalidated()) {
00425         Layout &self(*const_cast<Layout *>(this));
00426         self.validate();
00427     }
00428     return LayoutItem::sizeHint();
00429 }

Here is the call graph for this function:

virtual SizePolicy Wt::LayoutItem::sizePolicy ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 162 of file layout.h.

References Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::sizePolicy().

00162                                           {
00163         return size_policy_;
00164     }

int Wt::Object::startTimer ( int interval ) [inherited]

Definition at line 139 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Timer::start().

00139                                    {
00140     int id = timers_.size() + 1;
00141     timers_[id] = new SDLTimer(this, id, interval);
00142     return id;
00143 }

virtual void Wt::Object::timerEvent ( TimerEvent * ) [inline, protected, virtual, inherited]

Reimplemented in Wt::Timer.

Definition at line 148 of file object.h.

Referenced by Wt::Object::event(), and Wt::Timer::timerEvent().

00148 {}

Object * Wt::Object::topParent ( ) const [inherited]

returns top level parent: it may return itself

Definition at line 116 of file object.cpp.

References Wt::Object::parent_.

Referenced by Wt::Widget::topParentWidget().

00116                                 {
00117     const Object *p = this;
00118     while (p->parent_) {
00119         p = p->parent_;
00120     }
00121     return const_cast<Object *>(p);
00122 }

template<typename TEST_TYPE>

TEST_TYPE Wt::LayoutItem::type ( ) const [inline, inherited]

Definition at line 204 of file layout.h.

Referenced by addItem().

00204                            {
00205         return dynamic_cast<TEST_TYPE>(const_cast<LayoutItem *>(this));
00206     }

virtual void Wt::LayoutItem::validate ( ) [inline, protected, virtual, inherited]

Reimplemented in Wt::CascadeLayout, Wt::GridLayout, and Wt::BoxLayout.

Definition at line 223 of file layout.h.

References Wt::LayoutItem::invalidated_.

Referenced by Wt::BoxLayout::validate(), Wt::GridLayout::validate(), and Wt::CascadeLayout::validate().

00223                             {
00224         invalidated_ = false;
00225     }

WVar<int> Wt::LayoutItem::alignment [inherited]

Reimplemented in Wt::Label.

Definition at line 218 of file layout.h.

Referenced by Wt::PushButton::drawButtonLabel(), Wt::CascadeLayout::init(), Wt::Cascade::setAlignment(), Wt::Widget::setBackgroundPixmap(), Wt::Widget::setBackgroundPixmapFlags(), and Wt::CascadeLayout::setGeometry().

WVar<bool> Wt::Layout::autoAdd

Definition at line 304 of file layout.h.

Referenced by Wt::Box::Box(), Wt::Cascade::Cascade(), eventFilter(), Wt::Grid::Grid(), and init().

const int Wt::LayoutItem::default_hint_size = 100 [static, inherited]

Definition at line 216 of file layout.h.

const int Wt::LayoutItem::default_max_size = ((int) ((unsigned int) (~0) >> 1)) [static, inherited]

Definition at line 214 of file layout.h.

const int Wt::LayoutItem::default_min_size = 30 [static, inherited]

Definition at line 215 of file layout.h.

LayoutItem* Wt::Layout::deleted_li_ [private]

Definition at line 353 of file layout.h.

Referenced by isDeleted(), and markDeleted().

Signal01<void, const Object *> Wt::Object::destroyed [inherited]

signals

Definition at line 139 of file object.h.

Referenced by addItem(), Wt::Object::installEventFilter(), and Wt::Object::~Object().

WVar<int> Wt::Layout::margin

Definition at line 302 of file layout.h.

Referenced by adjustMaximumSize(), init(), Wt::Widget::maximumSize(), Wt::Widget::minimumSize(), Wt::Frame::onLayoutChange(), onSpacingOverride(), Wt::BoxLayout::setGeometry(), setGeometry(), Wt::GridLayout::setGeometry(), Wt::CascadeLayout::setGeometry(), Wt::Widget::setMaximumSize(), Wt::Widget::setMinimumSize(), and Wt::Widget::sizeHint().

WVar<int> Wt::Layout::spacing

Definition at line 303 of file layout.h.

Referenced by init(), Wt::Frame::onLayoutChange(), Wt::BoxLayout::setGeometry(), Wt::GridLayout::setGeometry(), Wt::BoxLayout::validate(), and Wt::GridLayout::validate().

bool Wt::Layout::width_as_primary_length [private]

Definition at line 356 of file layout.h.

Referenced by expandingPrimally(), getPoint(), getRect(), getSize(), isWidthPrimaryLength(), mayGrowPrimally(), mayShrinkPrimally(), primaryLength(), primaryOffset(), primaryStretch(), secondaryLength(), secondaryOffset(), and setWidthasPrimaryLength().

Wt::Layout Class Reference

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation


Public Types
typedef std::list< Object * >	List
Public Member Functions
	Layout (Widget *parent, int margin=0, int spacing=-1, const std::string &name="Layout::anon")
	Layout (Layout *parentLayout, int margin=0, int spacing=-1, const std::string &name="Layout::anon")
	Layout (int spacing=-1, const std::string &name="Layout::anon")
virtual	~Layout ()
Widget *	mainWidget () const
bool	isTopLevel () const
virtual Size	sizeHint () const
virtual Size	minimumSize () const
virtual void	addItem (LayoutItem *li)
virtual bool	removeItem (LayoutItem *li)
	returns true if a layoutitem is actually removed
virtual bool	eventFilter (Object , Event )
virtual void	setGeometry (const Rect &r)
Object *	parent () const
const List &	children () const
List &	children ()
bool	isDescendant (const Object *p) const
virtual void	insertChild (Object *obj)
virtual void	removeChild (Object *obj)
void	reparent (Object *new_parent)
template<typename T>
void	deleteFirstChild ()
template<typename T>
void	deleteLastChild ()
template<typename T>
void	deleteAllChildren ()
Object *	topParent () const
	returns top level parent: it may return itself
const std::string &	name () const
void	installEventFilter (const Object *filterObj)
void	removeEventFilter (const Object *obj)
int	startTimer (int interval)
void	killTimer (int id)
void	killTimers ()
virtual bool	event (Event *e)
	event handling
virtual void	setMinimumSize (const Size &size)
virtual Size	maximumSize () const
virtual void	setMaximumSize (const Size &size)
virtual SizePolicy	sizePolicy () const
virtual void	setSizePolicy (const SizePolicy &size_policy)
virtual SizePolicy::ExpandData	expanding () const
virtual const Rect &	geometry () const
	return the widget's geometry relative to its parent
virtual bool	isEmpty () const
bool	isNonEmpty () const
virtual bool	hasHeightForWidth () const
virtual int	heightForWidth (int) const
virtual LayoutIterator	iterator ()
template<typename TEST_TYPE>
TEST_TYPE	type () const
template<typename TEST_TYPE>
bool	is () const
Public Attributes
WVar< int >	margin
WVar< int >	spacing
WVar< bool >	autoAdd
Signal01< void, const Object * >	destroyed
	signals
WVar< int >	alignment
Static Public Attributes
static const int	default_max_size = ((int) ((unsigned int) (~0) >> 1))
static const int	default_min_size = 30
static const int	default_hint_size = 100
Protected Member Functions
virtual bool	onAboutToChangeAutoAdd (bool auto_add)
virtual int	onSpacingOverride (int spacing)
void	adjustMaximumSize (int margin)
virtual bool	exists (const LayoutItem *li) const =0
void	markDeleted (LayoutItem *li)
bool	isDeleted (LayoutItem *li) const
void	enforce ()
	enforces the layout in the mainWidget() children and layouts
void	postLayoutHintEvent ()
void	setWidthasPrimaryLength (bool width=true)
bool	isWidthPrimaryLength () const
template<typename TYPE>
int	primaryLength (const TYPE &t) const
int	preferredLength (const LayoutItem *li, bool expand) const
template<typename TYPE>
int	secondaryLength (const TYPE &t) const
template<typename TYPE>
int	primaryOffset (const TYPE &t) const
template<typename TYPE>
int	secondaryOffset (const TYPE &t) const
Point	getPoint (int primary_offset, int secondary_offset) const
Size	getSize (int primary, int secondary) const
Rect	getRect (int primary_offset, int secondary_offset, int primary_size, int secondary_size) const
int	primaryStretch (const SizePolicy &sp) const
bool	mayGrowPrimally (const SizePolicy &sp) const
bool	mayShrinkPrimally (const SizePolicy &sp) const
bool	expandingPrimally (const SizePolicy &sp) const
virtual void	childEvent (ChildEvent *)
	event handling specialization
virtual void	customEvent (CustomEvent *)
virtual void	timerEvent (TimerEvent *)
bool	filterEvent (Event *)
void	invalidateRecursively ()
virtual void	validate ()
bool	invalidated () const
virtual void	setSizeHint (const Size &size)
Private Member Functions
void	on_wobject_item_death (const Object *obj)
void	init ()
Private Attributes
LayoutItem *	deleted_li_
bool	width_as_primary_length
