wt: Wt::GridLayout Class Reference

template<typename Container>

typedef Container::value_type Wt::LayoutStdContainer< Container >::Compound [inherited]

Definition at line 463 of file layout.h.

typedef MatrixLayoutItemMatrix::Edge Wt::GridLayout::Edge [private]

Definition at line 82 of file gridlayout.h.

typedef std::list<Object*> Wt::Object::List [inherited]

Definition at line 47 of file object.h.

Wt::GridLayout::GridLayout	(	Widget *	parent,
		int	margin = `0`,
		int	spacing = `-1`,
		const std::string &	name = `"GridLayout::anon"`
	)

Definition at line 44 of file gridlayout.cpp.

References init().

00045                                               :
00046 GridLayoutBase(parent, margin, spacing, name) {
00047     init();
00048 }

Here is the call graph for this function:

Wt::GridLayout::GridLayout	(	Layout *	parent_layout,
		int	margin = `0`,
		int	spacing = `-1`,
		const std::string &	name = `"GridLayout::anon"`
	)

Definition at line 50 of file gridlayout.cpp.

References init().

00051                                                           :
00052 GridLayoutBase(parent_layout, margin, spacing, name) {
00053     init();
00054 }

Here is the call graph for this function:

Wt::GridLayout::GridLayout	(	int	spacing = `-1`,
		const std::string &	name = `"GridLayout::anon"`
	)

Definition at line 56 of file gridlayout.cpp.

References init().

00056                                                          :
00057 GridLayoutBase(spacing, name) {
00058     init();
00059 }

Here is the call graph for this function:

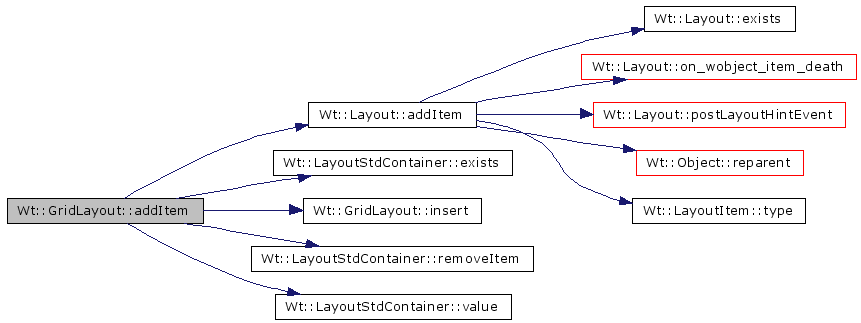

void Wt::GridLayout::addItem ( LayoutItem * li ) [virtual]

Reimplemented from Wt::LayoutStdContainer< Container >.

Definition at line 497 of file gridlayout.cpp.

References Wt::Layout::addItem(), cellSpanQueue, Wt::LayoutStdContainer< Container >::exists(), insert(), Wt::LayoutStdContainer< Container >::removeItem(), trace, and Wt::LayoutStdContainer< Container >::value().

Referenced by Wt::Grid::operator=().

00497                                        {
00498     // obvious optimization. if exists and it is already in position do nothing
00499     GridLayout::const_iterator it = find(begin(), end(), li);
00500     bool exists = (it != end());
00501
00502     if (exists && !cellSpanQueue.empty()) {
00503         const CellSpan& cs = cellSpanQueue.front();
00504         const MatrixLayoutItemValue& value = *it;
00505         if (it.row() == cs.rowFrom() && it.column() == cs.columnFrom() &&
00506                 value.rowSpan() == cs.rowSpan() && value.columnSpan() == cs.columnSpan()) {
00507             cellSpanQueue.pop();
00508             return;
00509         }
00510     }
00511
00512     // remove if already exists. This is used for cell reassigning
00513     if (exists) {
00514         removeItem(li);
00515     }
00516     trace("gridlayout", "GridLayout::addItem layoutItem %p\n", li);
00517     Layout::addItem(li);
00518
00519     if (!cellSpanQueue.empty()) {
00520         const CellSpan& cs = cellSpanQueue.front();
00521         if (cs.layoutItem() == li) {
00522             insert(cs.layoutItem(), cs.rowFrom(), cs.rowTo(),
00523                    cs.columnFrom(), cs.columnTo());
00524             cellSpanQueue.pop();
00525             return;
00526         }
00527     }
00528     push_back(li);
00529 }

Here is the call graph for this function:

void Wt::Layout::adjustMaximumSize ( int margin ) [protected, inherited]

Definition at line 50 of file layout.cpp.

References Wt::Layout::margin, Wt::LayoutItem::maximumSize(), and Wt::LayoutItem::setMaximumSize().

Referenced by Wt::Layout::init().

00050                                          {
00051     setMaximumSize(maximumSize() >> margin);
00052 }

Here is the call graph for this function:

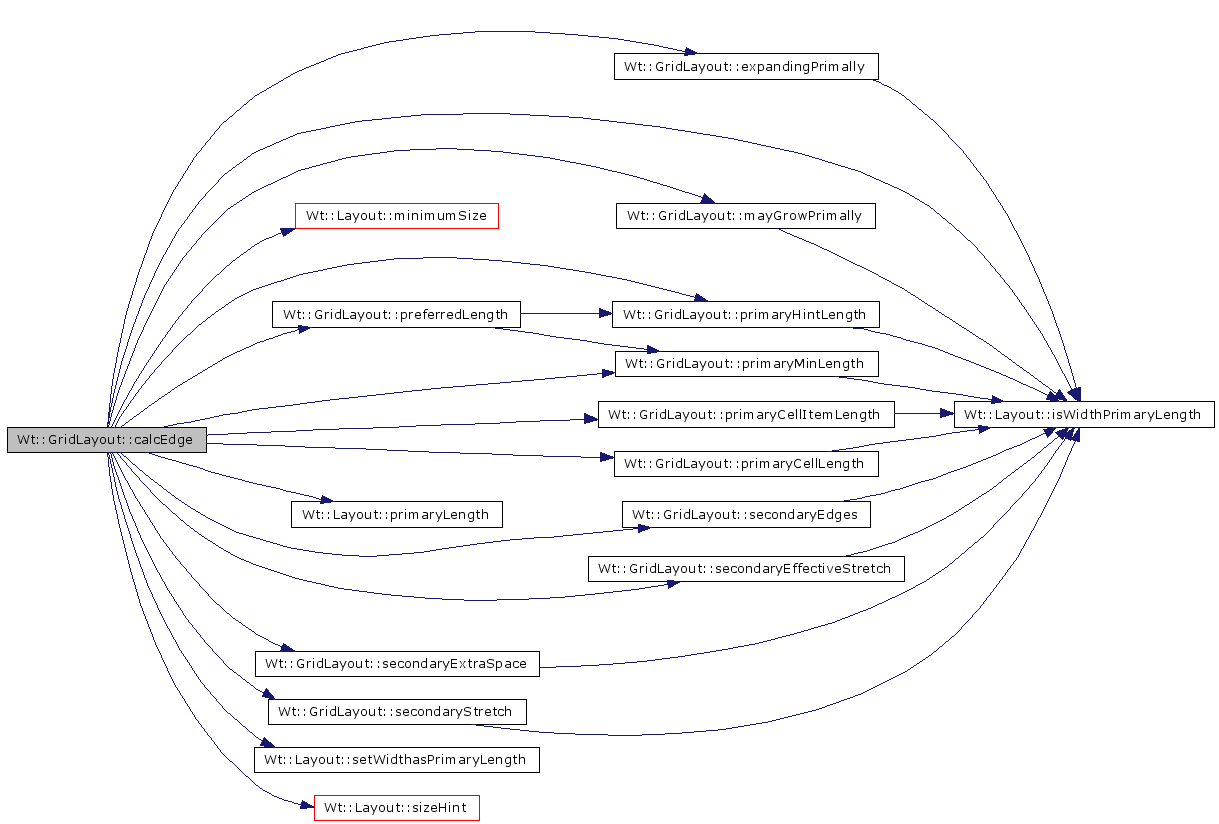

void Wt::GridLayout::calcEdge	(	const int	available_space,
		bool	width_as_primary
	)			`[private]`

calcs the width of the columns and the height of the rows

it's not funny if we have to do it two times both for width and height so we are are heavily using the generic names length and edge to indicate width or height and row or column.

Todo:: find biggest offender not the first one

Definition at line 228 of file gridlayout.cpp.

References expandingPrimally(), Wt::Layout::isWidthPrimaryLength(), mayGrowPrimally(), Wt::Layout::minimumSize(), preferredLength(), primaryCellItemLength(), primaryCellLength(), primaryHintLength(), Wt::Layout::primaryLength(), primaryMinLength(), secondaryEdges(), secondaryEffectiveStretch(), secondaryExtraSpace(), secondaryStretch(), Wt::Layout::setWidthasPrimaryLength(), Wt::Layout::sizeHint(), and trace.

Referenced by setGeometry().

00228                                                                 {
00229     int expansion;
00230     bool expand;
00231     int stretch_sum = 0;
00232     int may_grow_num = 0;
00233     int unclaimed_space = 0;
00234     int j;
00235
00236     setWidthasPrimaryLength(width_as_primary);
00237
00238     std::vector<int>& hint_length = primaryHintLength();
00239     std::vector<int>& min_length = primaryMinLength();
00240     std::vector<int>& effective_stretch = secondaryEffectiveStretch();
00241     std::vector<int>& stretch = secondaryStretch();
00242     std::vector<int>& extra_space = secondaryExtraSpace();
00243     std::vector<int>& length = primaryCellItemLength();
00244     std::vector<int>& container_length = primaryCellLength();
00245
00246     int edges = secondaryEdges();
00247
00248     effective_stretch.resize(edges);
00249     extra_space.resize(edges);
00250     length.resize(edges);
00251     container_length.resize(edges);
00252
00253     trace("gridlayout", "GridLayout:: Available space for %s %d\n",
00254           (isWidthPrimaryLength()) ? "width" : "height", total_space);
00255     expansion = total_space - Layout::primaryLength(sizeHint());
00256     expand = expansion >= 0;
00257     if (!expand) {
00258         expansion = total_space - Layout::primaryLength(minimumSize());
00259     }
00260
00261     // initialize effective stretch to zero
00262     for (j = 0; j < edges; j++) {
00263         effective_stretch[j] = 0;
00264     }
00265
00266     // we have to expand
00267     // first check if there are any stretch values
00268     for (j = 0; j < edges; j++) {
00269         int li_stretch = stretch[j];
00270         if (li_stretch && mayGrowPrimally(j)) {
00271             unclaimed_space += preferredLength(j, expand);
00272             stretch_sum += li_stretch;
00273             effective_stretch[j] = li_stretch;
00274             may_grow_num++;
00275         }
00276     }
00277
00278     // check if we have to split the extra space among expanding
00279     if (!stretch_sum) {
00280         may_grow_num = 0;
00281         unclaimed_space = 0;
00282         for (j = 0; j < edges; j++) {
00283             if (expandingPrimally(j)) {
00284                 unclaimed_space += preferredLength(j, expand);
00285                 effective_stretch[j] = 1;
00286                 may_grow_num++;
00287             }
00288         }
00289         stretch_sum = may_grow_num;
00290     }
00291
00292     // check if we have to split the extra space among may Grow simply (preferred)
00293     if (!may_grow_num) {
00294         unclaimed_space = 0;
00295         for (j = 0; j < edges; j++) {
00296             if (mayGrowPrimally(j)) {
00297                 unclaimed_space += preferredLength(j, expand);
00298                 effective_stretch[j] = 1;
00299                 may_grow_num++;
00300             }
00301         }
00302         stretch_sum = may_grow_num;
00303     }
00304
00305     // none of the fuckers grows -- all fixed size
00306     if (!may_grow_num) {
00307         unclaimed_space = 0;
00308         for (j = 0; j < edges; j++) {
00309             int preferred_length = preferredLength(j, expand);
00310             if (preferred_length) {
00311                 unclaimed_space += preferred_length;
00312                 effective_stretch[j] = 1;
00313                 may_grow_num++;
00314             }
00315         }
00316         stretch_sum = may_grow_num;
00317     }
00318
00319     // Now we will remove offenders until we can distribute evenly
00320     int available_space;
00321     int claimed_space;
00322 restart:
00323     /// \todo find biggest offender not the first one
00324     available_space = expansion + unclaimed_space;
00325     claimed_space = 0;
00326     for (j = 0; j < edges; j++) {
00327         if (effective_stretch[j]) {
00328             int li_p = (effective_stretch[j] *
00329                         available_space) / stretch_sum;
00330             int preferred_length = preferredLength(j, expand);
00331             if (li_p < preferred_length) {
00332                 // problem: offender found, remove him
00333                 trace("gridlayout", "Removing offender at pos %d with "
00334                       "stretch %d stretch_sum %d unclaimed_space %d\n",
00335                       j, effective_stretch[j], stretch_sum, unclaimed_space);
00336                 unclaimed_space -= preferred_length;
00337                 stretch_sum -= effective_stretch[j];
00338                 effective_stretch[j] = 0;
00339                 may_grow_num--;
00340                 goto restart;
00341             }
00342             claimed_space += li_p;
00343         }
00344     }
00345
00346     // now we have to distribute evenly the difference
00347     // that got truncated in the integer division
00348     int rest_space = available_space - claimed_space;
00349     int div = 0;
00350     int modulo = 0;
00351     if (may_grow_num) {
00352         div = rest_space / may_grow_num;
00353         modulo = rest_space % may_grow_num;
00354     }
00355
00356     int count = 0;
00357     for (j = 0; j < edges; j++) {
00358         if (effective_stretch[j]) {
00359             extra_space[j] = div + (count < modulo) ? 1 : 0;
00360         } else {
00361             extra_space[j] = 0;
00362         }
00363         count++;
00364     }
00365
00366     // finally calc the size
00367     for (j = 0; j < edges; j++) {
00368         const int space = ( (effective_stretch[j]) ?
00369                             (effective_stretch[j] * available_space) /
00370                             stretch_sum :
00371                             preferredLength(j, expand) ) + extra_space[j];
00372         container_length[j] = space;
00373         length[j] = (mayGrowPrimally(j)) ?
00374                     space : (hint_length[j] <= space) ?
00375                     hint_length[j] : min_length[j];
00376         trace("gridlayout", "GridLayout:: Allocating space "
00377               "(%d) %d for edge %d\n", isWidthPrimaryLength(), space, j);
00378     }
00379 }

Here is the call graph for this function:

virtual void Wt::Object::childEvent ( ChildEvent * ) [inline, protected, virtual, inherited]

event handling specialization

Reimplemented in Wt::Window::Frame.

Definition at line 146 of file object.h.

Referenced by Wt::Object::event().

00146 {}

List& Wt::Object::children ( ) [inline, inherited]

Definition at line 61 of file object.h.

References Wt::Object::children_.

00061                      {
00062         return children_;
00063     }

const List& Wt::Object::children ( ) const [inline, inherited]

Definition at line 57 of file object.h.

References Wt::Object::children_.

Referenced by Wt::RootWindow::blit_region_ex(), Wt::Widget::childAt(), Wt::Object::deleteAllChildren(), Wt::Object::deleteFirstChild(), Wt::Object::deleteLastChild(), Wt::Widget::focusNextPrevChild(), Wt::Widget::fontChange(), Wt::Widget::lower(), Wt::postLayoutHintEventRecursively(), and Wt::Widget::raise().

00057                                  {
00058         return children_;
00059     }

int Wt::GridLayout::colStretch ( int col ) const [inline]

Definition at line 107 of file gridlayout.h.

References column_stretch.

00107                                    {
00108         return column_stretch[col];
00109     }

virtual void Wt::Object::customEvent ( CustomEvent * ) [inline, protected, virtual, inherited]

Definition at line 147 of file object.h.

Referenced by Wt::Object::event().

00147 {}

template<typename T>

void Wt::Object::deleteAllChildren ( ) [inline, inherited]

Definition at line 106 of file object.h.

References Wt::Object::children().

00106                              {
00107         List::iterator it(children().begin());
00108         List::iterator end(children().end());
00109
00110         while (it != end) {
00111             T *t = dynamic_cast<T *>(*it);
00112             // before iteration invalidation
00113             ++it;
00114             // this will invalidate the iterator
00115             if (t) {
00116                 delete t;
00117             }
00118         }
00119     }

Here is the call graph for this function:

template<typename T>

void Wt::Object::deleteFirstChild ( ) [inline, inherited]

Definition at line 72 of file object.h.

References Wt::Object::children().

00072                             {
00073         List::iterator it(children().begin());
00074         List::iterator end(children().end());
00075
00076         while (it != end) {
00077             T *t = dynamic_cast<T *>(*it);
00078             // before iteration invalidation
00079             ++it;
00080             // this will invalidate the iterator
00081             if (t) {
00082                 delete t;
00083                 break;
00084             }
00085         }
00086     }

Here is the call graph for this function:

template<typename T>

void Wt::Object::deleteLastChild ( ) [inline, inherited]

Definition at line 89 of file object.h.

References Wt::Object::children().

00089                            {
00090         List::reverse_iterator it(children().rbegin());
00091         List::reverse_iterator end(children().rend());
00092
00093         while (it != end) {
00094             T *t = dynamic_cast<T *>(*it);
00095             // before iteration invalidation
00096             ++it;
00097             // this will invalidate the iterator
00098             if (t) {
00099                 delete t;
00100                 break;
00101             }
00102         }
00103     }

Here is the call graph for this function:

void Wt::Layout::enforce ( ) [protected, inherited]

enforces the layout in the mainWidget() children and layouts

it can be only called if there is a main widget

Definition at line 336 of file layout.cpp.

References Wt::LayoutItem::geometry(), Wt::LayoutItem::invalidateRecursively(), Wt::Layout::mainWidget(), Wt::Layout::minimumSize(), Wt::Layout::setGeometry(), Wt::Layout::sizeHint(), and Wt::Widget::updateGeometry().

Referenced by Wt::Layout::eventFilter().

00336                      {
00337     const Rect rect = geometry();
00338     const Size min_size = minimumSize();
00339     const Size hint_size = sizeHint();
00340
00341     // top downn invalidate across one widget only
00342     invalidateRecursively();
00343     // calls the virtual reimplementations
00344     setGeometry(rect);
00345     // this will notify parent of mainWidget() if exists
00346     if (rect != geometry() ||
00347             hint_size != sizeHint() ||
00348             min_size != minimumSize()) {
00349         mainWidget()->updateGeometry();
00350     }
00351 }

Here is the call graph for this function:

bool Wt::Object::event ( Event * e ) [virtual, inherited]

event handling

Reimplemented in Wt::Application, and Wt::Widget.

Definition at line 173 of file object.cpp.

References Wt::Object::childEvent(), Wt::Event::ChildInserted, Wt::Event::ChildRemoved, Wt::Object::customEvent(), Wt::Object::filterEvent(), Wt::SDLTimer::scheduleNext(), Wt::Object::timer(), Wt::Event::Timer, Wt::Object::timerEvent(), Wt::Event::type(), and Wt::Event::User.

Referenced by Wt::Widget::event(), Wt::Application::notify(), and Wt::Application::postEvent().

00173                            {
00174     bool handled = true;
00175
00176     if (filterEvent(e))
00177         return true;
00178
00179     switch (e->type()) {
00180     case Event::Timer: {
00181             TimerEvent *te = static_cast<TimerEvent *>(e);
00182             int id = te->timerid();
00183             if (timer(id)) {
00184                 timerEvent(te);
00185             }
00186             // if it is signle shot it may have been killed
00187             // during eventhandling
00188             SDLTimer *t = timer(id);
00189             if (t)
00190                 t->scheduleNext();
00191         }
00192         break;
00193     case Event::ChildInserted:
00194     case Event::ChildRemoved:
00195         childEvent(static_cast<ChildEvent *>(e));
00196         break;
00197     default:
00198         if (e->type() >= Event::User) {
00199             customEvent(static_cast<CustomEvent *>(e));
00200         } else {
00201             handled = false;
00202         }
00203         break;
00204     }
00205
00206     return handled;
00207 }

Here is the call graph for this function:

bool Wt::Layout::eventFilter	(	Object *	obj,
		Event *	e
	)			`[virtual, inherited]`

we get events from the mainWidget only if exists. The type of events are:

ChildEvent (Inserted or ChildRemoved)
ResizeEvent
LayoutHintEvent

The following uses cases has to be covered:

case 1: A widget w deep in the hierarchy changes something (sizeHint, minimumSize, sizePolicy etc..)
case 2: insert/remove layout item
case 3: add remove child in a widget with a tll
case 4: parent widget gets resized

    // we monitor the managed widgets
    // top level layout grabs it (if tll exists)
    Layout::eventFilter() {
        // on layoutHint event calls
        Layout::enforce();

        // on resize calls
        Layout::setGeometry(r);

        // on child insert / remove in mainWidget
        // this implies enforce called in the next event processing
            Application::postEvent(mainWidget(), new LayoutHintEvent());
    }

Note:

if there is no top level layout then layout is not automatically enforced
use cases 1,2,3,4 are working if we assume the presence of a tll
we do a lot of invalidateRecursively()
widgets can only have one layout child (setLayout(), layout()) and no more
a widget cannot tell if it is managed or not
Layout::setGeometry() reimplementations must call base class implementation

Reimplemented from Wt::Object.

Definition at line 228 of file layout.cpp.

References Wt::Layout::addItem(), Wt::Layout::autoAdd, Wt::ChildEvent::child(), Wt::Event::ChildInserted, Wt::Event::ChildRemoved, Wt::Layout::enforce(), Wt::Object::eventFilter(), Wt::LayoutItem::geometry(), Wt::Event::LayoutHint, Wt::Event::Move, Wt::Layout::removeItem(), Wt::Event::Resize, Wt::LayoutItem::setGeometry(), Wt::Layout::setGeometry(), trace, and Wt::Event::type().

00228                                               {
00229     Widget *w;
00230
00231     switch (e->type()) {
00232     case Event::ChildInserted:
00233         if (autoAdd) {
00234             ChildEvent *ce = static_cast<ChildEvent *>(e);
00235             Object *child = ce->child();
00236             // It is not possible to add other widgets layout. They will
00237             // be toplevels and that means we are dead
00238             LayoutItem *li = dynamic_cast<LayoutItem *>(child);
00239
00240             //assert(li == this);
00241             // we can only insert Widget items as childs of our mainWidget
00242             const bool is_window_frame = dynamic_cast<Window::Frame *>(child);
00243             const Window *wnd = dynamic_cast<Window *>(child);
00244             const bool is_frameless_window = wnd &&
00245                                              !dynamic_cast<Window::Frame *>(wnd->parent());
00246             if (li != this && !is_window_frame && !is_frameless_window
00247                     && (w = dynamic_cast<Widget *>(child))) {
00248                 trace("layout") << "Inserting to layout "
00249                 << this << " child " << w << std::endl;
00250                 addItem(w);
00251             }
00252         }
00253         break;
00254     case Event::ChildRemoved: {
00255             // we have to handle the reparenting case.
00256             // delete is handled gracefully. Problem is we don't
00257             // know if it is deleted. But if it is deleted it will
00258             // have been already removed. So we use static_cast to
00259             // go up and down the inheritance tree. It is also possible
00260             // that we don't manage this child.
00261             ChildEvent *ce = static_cast<ChildEvent *>(e);
00262             w = static_cast<Widget *>(ce->child());
00263             LayoutItem *li = static_cast<LayoutItem *>(w);
00264             // if item is already dead (removed) removeItem will do nothing
00265             removeItem(li);
00266         }
00267         break;
00268     case Event::Resize:
00269         w = dynamic_cast<Widget *>(obj);
00270         trace("layout") << "Widget Resize: " << w
00271         << " caused layout resize" << std::endl;
00272         setGeometry(w->geometry());
00273         break;
00274     case Event::Move:
00275         w = dynamic_cast<Widget *>(obj);
00276         trace("layout") << "Widget move: " << w
00277         << " caused layout move" << std::endl;
00278         LayoutItem::setGeometry(w->geometry());
00279         break;
00280     case Event::LayoutHint:
00281         enforce();
00282         break;
00283     default:
00284         break;
00285     }
00286
00287     return Object::eventFilter(obj, e);
00288 }

Here is the call graph for this function:

template<typename Container>

virtual bool Wt::LayoutStdContainer< Container >::exists ( const LayoutItem * li ) const [inline, protected, virtual, inherited]

Implements Wt::Layout.

Definition at line 514 of file layout.h.

Referenced by addItem(), and Wt::Box::setStretchFactor().

00514                                                     {
00515         typename Container::const_iterator end = Container::end();
00516         typename Container::const_iterator p = find(Container::begin(), end, li);
00517         return (p != end);
00518     }

virtual SizePolicy::ExpandData Wt::LayoutItem::expanding ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 170 of file layout.h.

References Wt::SizePolicy::expandData, and Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::expanding().

00170                                                    {
00171         return size_policy_.expandData;
00172     }

bool Wt::Layout::expandingPrimally ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 410 of file layout.cpp.

References Wt::SizePolicy::expandingHorizontally(), Wt::SizePolicy::expandingVertically(), and Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00410                                                          {
00411     return (width_as_primary_length) ?
00412            sp.expandingHorizontally() : sp.expandingVertically();
00413 }

Here is the call graph for this function:

bool Wt::GridLayout::expandingPrimally ( int edge_index ) const [inline, protected]

Definition at line 146 of file gridlayout.h.

References expanding_horizontally, expanding_vertically, and Wt::Layout::isWidthPrimaryLength().

Referenced by calcEdge().

00146                                                  {
00147         return isWidthPrimaryLength() ?
00148                expanding_horizontally[edge_index] :
00149                expanding_vertically[edge_index];
00150     }

Here is the call graph for this function:

bool Wt::Object::filterEvent ( Event * ) [protected, inherited]

Definition at line 164 of file object.cpp.

References Wt::Object::eventFilters_.

Referenced by Wt::Object::event(), and Wt::Application::event().

00164                                  {
00165     for (List::iterator filter(eventFilters_.begin()),
00166             end(eventFilters_.end()); filter != end; ++filter) {
00167         if ((*filter)->eventFilter(this, e))
00168             return true;
00169     }
00170     return false;
00171 }

virtual const Rect& Wt::LayoutItem::geometry ( ) const [inline, virtual, inherited]

return the widget's geometry relative to its parent

Definition at line 175 of file layout.h.

References Wt::LayoutItem::geometry_rect_.

Referenced by Wt::Label::drawContents(), Wt::Layout::enforce(), Wt::Layout::eventFilter(), Wt::Window::frameGeometry(), Wt::Widget::height(), Wt::Widget::mapFromGlobal(), Wt::Widget::mapFromParent(), Wt::Widget::mapToGlobal(), Wt::Widget::mapToParent(), Wt::Window::Frame::mousePressEvent(), Wt::Widget::move(), Wt::Widget::resize(), Wt::Widget::setGeometry(), Wt::BoxLayout::setGeometry(), setGeometry(), Wt::CascadeLayout::setGeometry(), Wt::Widget::size(), Wt::Widget::width(), and Wt::Widget::~Widget().

00175                                          {
00176         return geometry_rect_;
00177     }

Point Wt::Layout::getPoint	(	int	primary_offset,
		int	secondary_offset
	)			const `[protected, inherited]`

Definition at line 376 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00376                                                                      {
00377     return (width_as_primary_length) ?
00378            Point(primary_offset, secondary_offset) :
00379            Point(secondary_offset, primary_offset);
00380 }

Rect Wt::Layout::getRect	(	int	primary_offset,
		int	secondary_offset,
		int	primary_size,
		int	secondary_size
	)			const `[protected, inherited]`

Definition at line 388 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

00389                                                                  {
00390     return (width_as_primary_length) ?
00391            Rect(primary_offset, secondary_offset, primary_size, secondary_size) :
00392            Rect(secondary_offset, primary_offset, secondary_size, primary_size);
00393 }

Size Wt::Layout::getSize	(	int	primary,
		int	secondary
	)			const `[protected, inherited]`

Definition at line 382 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00382                                                      {
00383     return (width_as_primary_length) ?
00384            Size(primary, secondary) :
00385            Size(secondary, primary);
00386 }

virtual bool Wt::LayoutItem::hasHeightForWidth ( ) const [inline, virtual, inherited]

Definition at line 192 of file layout.h.

00192                                            {
00193         return false;
00194     }

virtual int Wt::LayoutItem::heightForWidth ( int ) const [inline, virtual, inherited]

Definition at line 195 of file layout.h.

00195                                           {
00196         return -1;
00197     }

void Wt::GridLayout::init ( ) [private]

Reimplemented from Wt::Layout.

Definition at line 40 of file gridlayout.cpp.

References onGridSizeChange().

Referenced by GridLayout().

00040                       {
00041     gridSizeChanged.connect(sigc::mem_fun(*this, &GridLayout::onGridSizeChange));
00042 }

Here is the call graph for this function:

void Wt::GridLayout::insert	(	const LayoutItem *	li,
		int	row_from,
		int	row_to,
		int	column_from,
		int	column_to
	)

Definition at line 480 of file gridlayout.cpp.

References Wt::MatrixLayoutItemValue::Original, Wt::MatrixLayoutItemValue::Reference, trace, and Wt::LayoutStdContainer< Container >::value().

00481                                                                     {
00482     const int row_span = row_to - row_from + 1;
00483     const int col_span = column_to - column_from + 1;
00484     trace("gridlayout", "Span insertion [%d %d] to [%d %d]\n",
00485           row_from, column_from, row_to, column_to);
00486     for (int r = row_from; r <= row_to; r++) {
00487         for (int c = column_from; c <= column_to; c++) {
00488             MatrixLayoutItemValue value(
00489                 (r == row_from && c == column_from) ?
00490                 MatrixLayoutItemValue::Original :
00491                 MatrixLayoutItemValue::Reference, row_span, col_span);
00492             (*this)(r, c) = MatrixLayoutItemCompound(li, value);
00493         }
00494     }
00495 }

Here is the call graph for this function:

void Wt::GridLayout::insert	(	const LayoutItem *	li,
		int	row,
		int	column
	)

Definition at line 476 of file gridlayout.cpp.

Referenced by addItem().

00476                                                                  {
00477     (*this)(row, column) = li;
00478 }

void Wt::Object::insertChild ( Object * obj ) [virtual, inherited]

Definition at line 81 of file object.cpp.

References Wt::Event::ChildInserted, Wt::Object::children_, Wt::Object::parent_, and Wt::Application::postEvent().

Referenced by Wt::Object::Object(), and Wt::Object::reparent().

00081                                     {
00082     children_.push_back(obj);
00083     obj->parent_ = this;
00084     Event *child_event = new ChildEvent(Event::ChildInserted, obj);
00085     Application::postEvent(this, child_event);
00086 }

Here is the call graph for this function:

void Wt::Object::installEventFilter ( const Object * filterObj ) [inherited]

Definition at line 124 of file object.cpp.

References Wt::Object::destroyed, Wt::Object::eventFilters_, and Wt::Object::removeEventFilter().

Referenced by Wt::Widget::setLayout().

00124                                                        {
00125     // we have to deconstify here. We cannot deliver event to const objects
00126     Object *obj = const_cast<Object *>(filterObj);
00127     eventFilters_.push_back(obj);
00128     obj->destroyed.connect(sigc::slot1<void, const Object *>(
00129                                sigc::mem_fun(*this, &Object::removeEventFilter)));
00130 }

Here is the call graph for this function:

bool Wt::LayoutItem::invalidated ( ) const [inline, protected, inherited]

Definition at line 227 of file layout.h.

References Wt::LayoutItem::invalidated_.

Referenced by Wt::Layout::minimumSize(), and Wt::Layout::sizeHint().

00227                              {
00228         return invalidated_;
00229     }

void Wt::LayoutItem::invalidateRecursively ( ) [protected, inherited]

Definition at line 28 of file layout.cpp.

References Wt::LayoutIterator::finish(), Wt::LayoutItem::invalidated_, Wt::LayoutItem::isNonEmpty(), Wt::LayoutItem::iterator(), Wt::LayoutIterator::start(), and trace.

Referenced by Wt::Layout::enforce().

00028                                        {
00029     // if null means empty item. don't bother (used on Grid)
00030     // we can't handle it in isEmpty() because it is virtual
00031     // and the null dereference crashes
00032     trace("layout") << "Trying to invalidate " << this
00033     << " == "  << dynamic_cast<Object *>(this) << std::endl;
00034     if (isNonEmpty()) {
00035         trace("layout") << "Invalidating " << this << std::endl;
00036         LayoutIterator it = iterator();
00037         invalidated_ = true;
00038         for (it.start(); !it.finish(); it++) {
00039             LayoutItem *li = *it;
00040             li->invalidateRecursively();
00041         }
00042         trace("layout") << "Invalidation finished " << this << std::endl;
00043     }
00044 }

Here is the call graph for this function:

template<typename TEST_TYPE>

bool Wt::LayoutItem::is ( ) const [inline, inherited]

Definition at line 209 of file layout.h.

Referenced by Wt::Cascade::pop(), and Wt::Layout::removeItem().

00209                     {
00210         return (type<TEST_TYPE>() != 0);
00211     }

bool Wt::Layout::isDeleted ( LayoutItem * li ) const [inline, protected, inherited]

Definition at line 314 of file layout.h.

References Wt::Layout::deleted_li_.

Referenced by Wt::Layout::removeItem().

00314                                          {
00315         return deleted_li_ == li;
00316     }

bool Wt::Object::isDescendant ( const Object * p ) const [inherited]

Definition at line 67 of file object.cpp.

References Wt::Object::parent().

Referenced by Wt::SDLInput::EventInfo::EventInfo(), and Wt::SDLInput::handleKeyEvent().

00067                                                {
00068     if (!p)
00069         return false;
00070
00071     const Object *q = this;
00072
00073     do {
00074         if (p == q)
00075             return true;
00076     } while ((q = q->parent()));
00077
00078     return false;
00079 }

Here is the call graph for this function:

template<typename Container>

virtual bool Wt::LayoutStdContainer< Container >::isEmpty ( ) const [inline, virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 490 of file layout.h.

00490                                  {
00491         return Container::empty();
00492     }

bool Wt::LayoutItem::isNonEmpty ( ) const [inline, inherited]

Definition at line 188 of file layout.h.

References Wt::LayoutItem::isEmpty().

Referenced by Wt::LayoutItem::invalidateRecursively().

00188                             {
00189         return (this) ? !isEmpty() : false;
00190     }

Here is the call graph for this function:

bool Wt::Layout::isTopLevel ( ) const [inherited]

Definition at line 129 of file layout.cpp.

References Wt::Layout::mainWidget(), and Wt::Object::parent().

Referenced by Wt::Layout::onAboutToChangeAutoAdd(), and Wt::Layout::setGeometry().

00129                               {
00130     return (parent() && mainWidget() == parent());
00131 }

Here is the call graph for this function:

bool Wt::Layout::isWidthPrimaryLength ( ) const [inline, protected, inherited]

Definition at line 321 of file layout.h.

References Wt::Layout::width_as_primary_length.

Referenced by calcEdge(), expandingPrimally(), mayGrowPrimally(), primaryCellItemLength(), primaryCellLength(), primaryHintLength(), primaryMinLength(), secondaryEdges(), secondaryEffectiveStretch(), secondaryExtraSpace(), secondaryStretch(), and Wt::Box::setStretchFactor().

00321                                       {
00322         return width_as_primary_length;
00323     }

template<typename Container>

virtual LayoutIterator Wt::LayoutStdContainer< Container >::iterator ( ) [inline, virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 509 of file layout.h.

00509                                       {
00510         return LayoutIterator(new LayoutStdContainerIterator<Container>(*this));
00511     }

void Wt::Object::killTimer ( int id ) [inherited]

Definition at line 145 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Timer::stop().

00145                              {
00146     delete timers_[id];
00147     timers_.erase(id);
00148 }

void Wt::Object::killTimers ( ) [inherited]

Definition at line 150 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Object::~Object().

00150                         {
00151     uint n = timers_.size() + 1;
00152     for (uint i = 1; i < n; i++) {
00153         delete timers_[i];
00154     }
00155     timers_.clear();
00156 }

Widget * Wt::Layout::mainWidget ( ) const [inherited]

Definition at line 118 of file layout.cpp.

References Wt::Object::parent().

Referenced by Wt::Layout::enforce(), Wt::Layout::isTopLevel(), Wt::Layout::postLayoutHintEvent(), Wt::BoxLayout::setGeometry(), Wt::Layout::setGeometry(), setGeometry(), and Wt::CascadeLayout::setGeometry().

00118                                  {
00119     const Object *p = this;
00120     while ((p = p->parent())) {
00121         Widget *w = dynamic_cast<Widget *>(const_cast<Object *>(p));
00122         if (w) {
00123             return w;
00124         }
00125     }
00126     return 0;
00127 }

Here is the call graph for this function:

void Wt::Layout::markDeleted ( LayoutItem * li ) [inline, protected, inherited]

Definition at line 311 of file layout.h.

References Wt::Layout::deleted_li_.

Referenced by Wt::Layout::on_wobject_item_death(), and Wt::Layout::~Layout().

00311                                      {
00312         deleted_li_ = li;
00313     }

virtual Size Wt::LayoutItem::maximumSize ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 155 of file layout.h.

References Wt::LayoutItem::maximum_size_.

Referenced by Wt::Layout::adjustMaximumSize(), Wt::Widget::maximumSize(), and Wt::Layout::setGeometry().

00155                                      {
00156         return maximum_size_;
00157     }

bool Wt::Layout::mayGrowPrimally ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 400 of file layout.cpp.

References Wt::SizePolicy::mayGrowHorizontally(), Wt::SizePolicy::mayGrowVertically(), and Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00400                                                        {
00401     return (width_as_primary_length) ?
00402            sp.mayGrowHorizontally() : sp.mayGrowVertically();
00403 }

Here is the call graph for this function:

bool Wt::GridLayout::mayGrowPrimally ( int edge_index ) const [inline, protected]

Definition at line 140 of file gridlayout.h.

References Wt::Layout::isWidthPrimaryLength(), may_grow_horizontally, and may_grow_vertically.

Referenced by calcEdge().

00140                                                {
00141         return isWidthPrimaryLength() ?
00142                may_grow_horizontally[edge_index] :
00143                may_grow_vertically[edge_index];
00144     }

Here is the call graph for this function:

bool Wt::Layout::mayShrinkPrimally ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 405 of file layout.cpp.

References Wt::SizePolicy::mayShrinkHorizontally(), Wt::SizePolicy::mayShrinkVertically(), and Wt::Layout::width_as_primary_length.

00405                                                          {
00406     return (width_as_primary_length) ?
00407            sp.mayShrinkHorizontally() : sp.mayShrinkVertically();
00408 }

Here is the call graph for this function:

Size Wt::Layout::minimumSize ( ) const [virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 415 of file layout.cpp.

References Wt::LayoutItem::invalidated(), and Wt::LayoutItem::minimumSize().

Referenced by calcEdge(), Wt::Layout::enforce(), Wt::Widget::minimumSize(), Wt::BoxLayout::setGeometry(), and Wt::Layout::setGeometry().

00415                                {
00416     if (invalidated()) {
00417         Layout &self(*const_cast<Layout *>(this));
00418         self.validate();
00419     }
00420     return LayoutItem::minimumSize();
00421 }

Here is the call graph for this function:

const std::string& Wt::Object::name ( ) const [inline, inherited]

Definition at line 124 of file object.h.

References Wt::Object::name_.

Referenced by Wt::operator<<(), Wt::Application::parseArgs(), and Wt::PushButton::setButtonSize().

00124                                   {
00125         return name_;
00126     }

bool Wt::Layout::onAboutToChangeAutoAdd ( bool auto_add ) [protected, virtual, inherited]

Definition at line 133 of file layout.cpp.

References Wt::Layout::isTopLevel().

Referenced by Wt::Layout::init().

00133                                                  {
00134     return (auto_add && !isTopLevel());
00135 }

Here is the call graph for this function:

void Wt::GridLayout::onGridSizeChange	(	int	rows_old,
		int	cols_old,
		int	rows,
		int	cols
	)			`[private]`

Definition at line 61 of file gridlayout.cpp.

References col_empty, column_stretch, expanding_horizontally, expanding_vertically, max_hint_height, max_hint_width, max_min_height, max_min_width, may_grow_horizontally, may_grow_vertically, row_empty, row_stretch, and trace.

Referenced by init().

00062                                                                     {
00063     trace("gridlayout",
00064           "GridSizeChange: from %dx%d --> %dx%d\n",
00065           rows_old, cols_old, rows, cols);
00066
00067     if (!rows || !cols)
00068         return;
00069
00070     row_stretch.resize(rows);
00071     column_stretch.resize(cols);
00072
00073     max_min_width.resize(cols);
00074     max_min_height.resize(rows);
00075     max_hint_width.resize(cols);
00076     max_hint_height.resize(rows);
00077     row_empty.resize(rows);
00078     col_empty.resize(cols);
00079
00080     may_grow_horizontally.resize(cols);
00081     may_grow_vertically.resize(rows);
00082     expanding_horizontally.resize(cols);
00083     expanding_vertically.resize(rows);
00084
00085     for (int r = rows_old; r < rows; r++) {
00086         row_stretch[r] = 0;
00087         max_min_height[r] = 0;
00088         max_hint_height[r] = 0;
00089         row_empty[r] = true;
00090         may_grow_vertically[r] = false;
00091         expanding_vertically[r] = false;
00092     }
00093
00094     for (int c = 0; c < cols_old; c++) {
00095         column_stretch[c] = 0;
00096         max_min_width[c] = 0;
00097         max_hint_width[c] = 0;
00098         col_empty[c] = true;
00099         may_grow_horizontally[c] = false;
00100         expanding_horizontally[c] = false;
00101     }
00102 }

int Wt::Layout::onSpacingOverride ( int spacing ) [protected, virtual, inherited]

Definition at line 46 of file layout.cpp.

References Wt::Layout::margin.

Referenced by Wt::Layout::init().

00046                                     {
00047     return (sp == -1) ? static_cast<int>(margin) : sp;
00048 }

template<typename Container>

Compound::LayoutItemValue& Wt::LayoutStdContainer< Container >::operator[] ( const LayoutItem * li ) [inline, protected, inherited]

Definition at line 528 of file layout.h.

00528                                                                        {
00529         return value(li);
00530     }

Object* Wt::Object::parent ( ) const [inline, inherited]

Definition at line 53 of file object.h.

References Wt::Object::parent_.

Referenced by Wt::Widget::event(), Wt::Widget::focusNextPrevChild(), Wt::Window::Frame::Frame(), Wt::Widget::is_hidden(), Wt::Object::isDescendant(), Wt::Layout::isTopLevel(), Wt::Layout::Layout(), Wt::Widget::lower(), Wt::Layout::mainWidget(), Wt::operator<<(), Wt::Widget::paintEvent(), Wt::Widget::parentWidget(), Wt::Application::postEvent(), Wt::Widget::raise(), Wt::Widget::updateGeometry(), Wt::Widget::Widget(), Wt::Window::Window(), Wt::Layout::~Layout(), and Wt::Widget::~Widget().

00053                            {
00054         return parent_;
00055     };

void Wt::Layout::postLayoutHintEvent ( ) [protected, inherited]

Definition at line 137 of file layout.cpp.

References Wt::Layout::mainWidget(), and Wt::Application::postEvent().

Referenced by Wt::Layout::addItem(), Wt::Layout::init(), Wt::CascadeLayout::init(), Wt::Layout::removeItem(), setColStretch(), and setRowStretch().

00137                                  {
00138     if (mainWidget()) {
00139         Application::postEvent(mainWidget(), new LayoutHintEvent());
00140     }
00141 }

Here is the call graph for this function:

int Wt::Layout::preferredLength	(	const LayoutItem *	li,
		bool	expand
	)			const `[protected, inherited]`

Definition at line 357 of file layout.cpp.

References Wt::LayoutItem::minimumSize(), Wt::Layout::primaryLength(), and Wt::LayoutItem::sizeHint().

Referenced by Wt::BoxLayout::setGeometry().

00357                                                                    {
00358     return primaryLength((expand) ? li->sizeHint() : li->minimumSize());
00359 }

Here is the call graph for this function:

int Wt::GridLayout::preferredLength	(	int	edge_index,
		bool	expand
	)			`[inline, protected]`

Definition at line 160 of file gridlayout.h.

References primaryHintLength(), and primaryMinLength().

Referenced by calcEdge().

00160                                                      {
00161         return (expand) ? primaryHintLength()[edge_index] :
00162                primaryMinLength()[edge_index];
00163     }

Here is the call graph for this function:

std::vector<int>& Wt::GridLayout::primaryCellItemLength ( ) [inline, protected]

Definition at line 131 of file gridlayout.h.

References column_width, Wt::Layout::isWidthPrimaryLength(), and row_height.

Referenced by calcEdge().

00131                                             {
00132         return isWidthPrimaryLength() ? column_width : row_height;
00133     }

Here is the call graph for this function:

std::vector<int>& Wt::GridLayout::primaryCellLength ( ) [inline, protected]

Definition at line 135 of file gridlayout.h.

References container_column_width, container_row_height, and Wt::Layout::isWidthPrimaryLength().

Referenced by calcEdge().

00135                                         {
00136         return isWidthPrimaryLength() ?
00137                container_column_width : container_row_height;
00138     }

Here is the call graph for this function:

std::vector<int>& Wt::GridLayout::primaryHintLength ( ) [inline, protected]

Definition at line 156 of file gridlayout.h.

References Wt::Layout::isWidthPrimaryLength(), max_hint_height, and max_hint_width.

Referenced by calcEdge(), and preferredLength().

00156                                         {
00157         return isWidthPrimaryLength() ? max_hint_width : max_hint_height;
00158     }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::primaryLength ( const TYPE & t ) const [inline, protected, inherited]

Definition at line 326 of file layout.h.

References Wt::Layout::width_as_primary_length.

Referenced by calcEdge(), Wt::Layout::preferredLength(), Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00326                                            {
00327         return (width_as_primary_length) ? t.width() : t.height();
00328     }

std::vector<int>& Wt::GridLayout::primaryMinLength ( ) [inline, protected]

Definition at line 152 of file gridlayout.h.

References Wt::Layout::isWidthPrimaryLength(), max_min_height, and max_min_width.

Referenced by calcEdge(), and preferredLength().

00152                                        {
00153         return isWidthPrimaryLength() ? max_min_width : max_min_height;
00154     }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::primaryOffset ( const TYPE & t ) const [protected, inherited]

Definition at line 367 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00367                                              {
00368     return (width_as_primary_length) ? t.left() : t.top();
00369 }

int Wt::Layout::primaryStretch ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 395 of file layout.cpp.

References Wt::SizePolicy::horizontalStretch, Wt::SizePolicy::verticalStretch, and Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00395                                                      {
00396     return (width_as_primary_length) ?
00397            sp.horizontalStretch : sp.verticalStretch;
00398 }

void Wt::Object::removeChild ( Object * obj ) [virtual, inherited]

Definition at line 88 of file object.cpp.

References Wt::Event::ChildRemoved, Wt::Object::children_, Wt::Object::parent_, and Wt::Application::postEvent().

Referenced by Wt::Object::reparent(), and Wt::Object::~Object().

00088                                     {
00089     List::iterator end = children_.end();
00090     List::iterator p = find(children_.begin(), end, obj);
00091
00092     if (p != end) {
00093         children_.erase(p);
00094         obj->parent_ = 0;
00095         Event *child_event = new ChildEvent(Event::ChildRemoved, obj);
00096         Application::postEvent(this, child_event);
00097     }
00098 }

Here is the call graph for this function:

void Wt::Object::removeEventFilter ( const Object * obj ) [inherited]

Definition at line 132 of file object.cpp.

References Wt::Object::eventFilters_.

Referenced by Wt::Object::installEventFilter().

00132                                                 {
00133     List::iterator p, end(eventFilters_.end());
00134     p = find(eventFilters_.begin(), end, obj);
00135     if (p != end)
00136         eventFilters_.erase(p);
00137 }

template<typename Container>

virtual bool Wt::LayoutStdContainer< Container >::removeItem ( LayoutItem * li ) [inline, virtual, inherited]

returns true if a layoutitem is actually removed

Reimplemented from Wt::Layout.

Definition at line 500 of file layout.h.

Referenced by addItem(), and Wt::Cascade::pop().

00500                                             {
00501         bool exist = Layout::removeItem(li);
00502         if (exist) {
00503             Container::remove
00504                 (li);
00505         }
00506         return exist;
00507     }

void Wt::Object::reparent ( Object * new_parent ) [inherited]

Definition at line 100 of file object.cpp.

References Wt::Object::insertChild(), Wt::Object::parent_, Wt::Object::removeChild(), and trace.

Referenced by Wt::Layout::addItem(), Wt::Widget::reparent(), and Wt::Widget::setLayout().

00100                                         {
00101     if (parent_ == new_parent)
00102         return;
00103     trace("obj") << "Reparenting " <<  this << std::endl;
00104
00105     if (parent_) {
00106         trace("obj") << "   Leaving parent " <<  parent_ << std::endl;
00107         parent_->removeChild(this);
00108     }
00109     if (new_parent) {
00110         trace("obj") << "   Going to new parent " <<  new_parent << std::endl;
00111         new_parent->insertChild(this);
00112     }
00113     parent_ = new_parent;
00114 }

Here is the call graph for this function:

int Wt::GridLayout::rowStretch ( int row ) const [inline]

Definition at line 104 of file gridlayout.h.

References row_stretch.

00104                                    {
00105         return row_stretch[row];
00106     }

int Wt::GridLayout::secondaryEdges ( ) const [inline, protected]

Definition at line 114 of file gridlayout.h.

References Wt::Layout::isWidthPrimaryLength().

Referenced by calcEdge().

00114                                {
00115         return isWidthPrimaryLength() ? numCols() : numRows();
00116     }

Here is the call graph for this function:

std::vector<int>& Wt::GridLayout::secondaryEffectiveStretch ( ) [inline, protected]

Definition at line 122 of file gridlayout.h.

References column_stretch_effective, Wt::Layout::isWidthPrimaryLength(), and row_stretch_effective.

Referenced by calcEdge().

00122                                                 {
00123         return isWidthPrimaryLength() ?
00124                column_stretch_effective : row_stretch_effective;
00125     }

Here is the call graph for this function:

std::vector<int>& Wt::GridLayout::secondaryExtraSpace ( ) [inline, protected]

Definition at line 127 of file gridlayout.h.

References column_extra_space, Wt::Layout::isWidthPrimaryLength(), and row_extra_space.

Referenced by calcEdge().

00127                                           {
00128         return isWidthPrimaryLength() ? column_extra_space : row_extra_space;
00129     }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::secondaryLength ( const TYPE & t ) const [protected, inherited]

Definition at line 362 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00362                                                {
00363     return (width_as_primary_length) ? t.height() : t.width();
00364 }

template<typename TYPE>

int Wt::Layout::secondaryOffset ( const TYPE & t ) const [protected, inherited]

Definition at line 372 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00372                                                {
00373     return (width_as_primary_length) ? t.top() : t.left();
00374 }

std::vector<int>& Wt::GridLayout::secondaryStretch ( ) [inline, protected]

Definition at line 118 of file gridlayout.h.

References column_stretch, Wt::Layout::isWidthPrimaryLength(), and row_stretch.

Referenced by calcEdge().

00118                                        {
00119         return isWidthPrimaryLength() ? column_stretch : row_stretch;
00120     }

Here is the call graph for this function:

void Wt::GridLayout::setColStretch	(	int	col,
		int	stretch
	)			`[virtual]`

Definition at line 471 of file gridlayout.cpp.

References column_stretch, and Wt::Layout::postLayoutHintEvent().

00471                                                    {
00472     column_stretch[col] = stretch;
00473     postLayoutHintEvent();
00474 }

Here is the call graph for this function:

void Wt::GridLayout::setGeometry ( const Rect & r ) [virtual]

fixup all managed widgets geometry

Reimplemented from Wt::Layout.

Definition at line 382 of file gridlayout.cpp.

References Wt::Rect::align(), calcEdge(), column_width, Wt::MatrixLayoutItemValue::columnSpan(), container_column_width, container_row_height, Wt::LayoutStdContainerIterator< Container >::finish(), Wt::LayoutItem::geometry(), Wt::Size::height(), Wt::SDLRect::height(), Wt::MatrixLayoutItemValue::isReference(), Wt::Layout::mainWidget(), Wt::Layout::margin, row_height, Wt::MatrixLayoutItemValue::rowSpan(), Wt::Layout::setGeometry(), Wt::Layout::spacing, Wt::LayoutStdContainerIterator< Container >::start(), trace, Wt::Size::width(), Wt::SDLRect::width(), Wt::SDLRect::x(), and Wt::SDLRect::y().

00382                                           {
00383     GridLayoutIterator it(*this);
00384     trace("gridlayout") << this <<  " GridLayout::setGeometry()" << std::endl;
00385
00386     // store geometry first
00387     Layout::setGeometry(r);
00388     // if smaller than the minSize it is possible that
00389     // we have to reacquire the size to perform the layout
00390     Rect rect = LayoutItem::geometry() >> margin;
00391
00392     // obvious optimization. If they are empty do nothing
00393     bool empty = true;
00394     for (it.start(); !it.finish(); it++) {
00395         LayoutItem *li = *it;
00396         if (li->isNonEmpty()) {
00397             empty = false;
00398             break;
00399         }
00400     }
00401     if (empty)
00402         return;
00403
00404     calcEdge(rect.width(), true);
00405     calcEdge(rect.height(), false);
00406
00407     // finally place them
00408     int covered_y = rect.y();
00409     GridLayout& self = *this;
00410     for (int i = 0; i < numRows(); i++) {
00411         int covered_x = rect.x();
00412         for (int j = 0; j < numCols(); j++) {
00413             LayoutItem *li = self(i, j);
00414             const MatrixLayoutItemValue& v = self(i, j);
00415
00416             if (!li->isNonEmpty())
00417                 continue;
00418
00419             // let's count the relevent sizes
00420             int container_width = 0;
00421             int container_height = 0;
00422
00423             const Size& hint_size = li->sizeHint();
00424             const Size& min_size = li->minimumSize();
00425
00426             for (int dr = 0; dr < v.rowSpan(); dr++)
00427                 container_height += container_row_height[i + dr];
00428             container_height += (v.rowSpan() - 1) * spacing;
00429
00430             for (int dc = 0; dc < v.columnSpan(); dc++)
00431                 container_width += container_column_width[j + dc];
00432             container_width += (v.columnSpan() - 1) * spacing;
00433
00434             const Size& container_size = Size(container_width,
00435                                               container_height);
00436
00437             const int cell_height = (li->sizePolicy().mayGrowVertically())
00438                                     ? container_size.height()
00439                                     : (hint_size.height() <= container_size.height())
00440                                     ? hint_size.height()
00441                                     : min_size.height();
00442
00443             const int cell_width = (li->sizePolicy().mayGrowHorizontally())
00444                                    ? container_size.width()
00445                                    : (hint_size.width() <= container_size.width())
00446                                    ? hint_size.width()
00447                                    : min_size.width();
00448
00449             const Size& cell_size = Size(cell_width, cell_height);
00450
00451             if (!v.isReference()) {
00452                 trace("gridlayout") << "GridLayout:: layoutItem " << li
00453                 << " in ("  << i << "," << j << ") " << cell_size
00454                 << " in " << container_size << std::endl;
00455                 li->setGeometry(
00456                     Rect::align(Rect(mainWidget()->
00457                                      mapFromParent(Point(covered_x, covered_y)),
00458                                      container_size), cell_size, li->alignment));
00459             }
00460             covered_x += column_width[j] + spacing;
00461         }
00462         covered_y += row_height[i] + spacing;
00463     }
00464 }

Here is the call graph for this function:

virtual void Wt::LayoutItem::setMaximumSize ( const Size & size ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 158 of file layout.h.

References Wt::LayoutItem::maximum_size_.

Referenced by Wt::Layout::adjustMaximumSize(), and Wt::Widget::setMaximumSize().

00158                                                   {
00159         maximum_size_ = size;
00160     }

virtual void Wt::LayoutItem::setMinimumSize ( const Size & size ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 151 of file layout.h.

References Wt::LayoutItem::minimum_size_.

Referenced by Wt::Widget::setMinimumSize(), Wt::BoxLayout::validate(), validate(), and Wt::CascadeLayout::validate().

00151                                                   {
00152         minimum_size_ = size;
00153     }

void Wt::GridLayout::setRowStretch	(	int	row,
		int	stretch
	)			`[virtual]`

Definition at line 466 of file gridlayout.cpp.

References Wt::Layout::postLayoutHintEvent(), and row_stretch.

00466                                                    {
00467     row_stretch[row] = stretch;
00468     postLayoutHintEvent();
00469 }

Here is the call graph for this function:

virtual void Wt::LayoutItem::setSizeHint ( const Size & size ) [inline, protected, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 231 of file layout.h.

References Wt::LayoutItem::size_hint_.

Referenced by Wt::Widget::setSizeHint(), Wt::BoxLayout::validate(), validate(), and Wt::CascadeLayout::validate().

00231                                                {
00232         size_hint_ = size;
00233     }

virtual void Wt::LayoutItem::setSizePolicy ( const SizePolicy & size_policy ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 166 of file layout.h.

References Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::setSizePolicy().

00166                                                               {
00167         size_policy_ = size_policy;
00168     }

void Wt::Layout::setWidthasPrimaryLength ( bool width = true ) [protected, inherited]

Definition at line 353 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by calcEdge().

00353                                                {
00354     width_as_primary_length = width;
00355 }

Size Wt::Layout::sizeHint ( ) const [virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 423 of file layout.cpp.

References Wt::LayoutItem::invalidated(), and Wt::LayoutItem::sizeHint().

Referenced by calcEdge(), Wt::Layout::enforce(), Wt::BoxLayout::setGeometry(), Wt::Layout::setGeometry(), Wt::CascadeLayout::setGeometry(), and Wt::Widget::sizeHint().

00423                             {
00424     if (invalidated()) {
00425         Layout &self(*const_cast<Layout *>(this));
00426         self.validate();
00427     }
00428     return LayoutItem::sizeHint();
00429 }

Here is the call graph for this function:

virtual SizePolicy Wt::LayoutItem::sizePolicy ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 162 of file layout.h.

References Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::sizePolicy().

00162                                           {
00163         return size_policy_;
00164     }

int Wt::Object::startTimer ( int interval ) [inherited]

Definition at line 139 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Timer::start().

00139                                    {
00140     int id = timers_.size() + 1;
00141     timers_[id] = new SDLTimer(this, id, interval);
00142     return id;
00143 }

virtual void Wt::Object::timerEvent ( TimerEvent * ) [inline, protected, virtual, inherited]

Reimplemented in Wt::Timer.

Definition at line 148 of file object.h.

Referenced by Wt::Object::event(), and Wt::Timer::timerEvent().

00148 {}

Object * Wt::Object::topParent ( ) const [inherited]

returns top level parent: it may return itself

Definition at line 116 of file object.cpp.

References Wt::Object::parent_.

Referenced by Wt::Widget::topParentWidget().

00116                                 {
00117     const Object *p = this;
00118     while (p->parent_) {
00119         p = p->parent_;
00120     }
00121     return const_cast<Object *>(p);
00122 }

template<typename TEST_TYPE>

TEST_TYPE Wt::LayoutItem::type ( ) const [inline, inherited]

Definition at line 204 of file layout.h.

Referenced by Wt::Layout::addItem().

00204                            {
00205         return dynamic_cast<TEST_TYPE>(const_cast<LayoutItem *>(this));
00206     }

void Wt::GridLayout::validate ( ) [protected, virtual]

let's calc again sizeHint, minimumSize etc

Reimplemented from Wt::LayoutItem.

Definition at line 105 of file gridlayout.cpp.

References Wt::adjust_cell_size(), col_empty, Wt::MatrixLayoutItemValue::columnSpan(), expanding_horizontally, expanding_vertically, Wt::MatrixLayoutItemValue::isMultiCell(), Wt::MatrixLayoutItemValue::isReference(), max_hint_height, max_hint_width, max_min_height, max_min_width, may_grow_horizontally, may_grow_vertically, row_empty, Wt::MatrixLayoutItemValue::rowSpan(), Wt::LayoutItem::setMinimumSize(), Wt::LayoutItem::setSizeHint(), Wt::Layout::spacing, trace, and Wt::LayoutItem::validate().

00105                           {
00106     int hint_w = 0, hint_h = 0;
00107     int min_w = 0, min_h = 0;
00108     int row_count = 0, col_count = 0;
00109     int r, c;
00110     GridLayout& self = *this;
00111     int sp = spacing;
00112
00113     trace("gridlayout") << this << " GridLayout::invalidate()" << std::endl;
00114
00115     for (c = 0; c < numCols(); c++) {
00116         max_min_width[c] = 0;
00117         max_hint_width[c] = 0;
00118         col_empty[c] = true;
00119         may_grow_horizontally[c] = false;
00120         expanding_horizontally[c] = false;
00121     }
00122
00123     for (r = 0; r < numRows(); r++) {
00124         max_min_height[r] = 0;
00125         max_hint_height[r] = 0;
00126         row_empty[r] = true;
00127         may_grow_vertically[r] = false;
00128         expanding_vertically[r] = false;
00129
00130         for (c = 0; c < numCols(); c++) {
00131             const LayoutItem *li = self(r, c);
00132             const MatrixLayoutItemValue& v = self(r, c);
00133
00134             // skip multicells
00135             if (li->isNonEmpty() && !v.isMultiCell()) {
00136                 max_min_width[c] = std::max(max_min_width[c], li->minimumSize().width());
00137                 max_min_height[r] = std::max(max_min_height[r], li->minimumSize().height());
00138                 max_hint_width[c] = std::max(max_hint_width[c], li->sizeHint().width());
00139                 max_hint_height[r] = std::max(max_hint_height[r], li->sizeHint().height());
00140             }
00141             if (li->isNonEmpty()) {
00142                 row_empty[r] = false;
00143                 col_empty[c] = false;
00144                 may_grow_horizontally[c] = may_grow_horizontally[c] ||
00145                                            li->sizePolicy().mayGrowHorizontally();
00146                 may_grow_vertically[r] = may_grow_vertically[r] ||
00147                                          li->sizePolicy().mayGrowVertically();
00148                 expanding_horizontally[c] = expanding_horizontally[c] ||
00149                                             li->sizePolicy().expandingHorizontally();
00150                 expanding_vertically[r] = expanding_vertically[r] ||
00151                                           li->sizePolicy().expandingVertically();
00152             }
00153         }
00154     }
00155
00156     // for all multicells
00157     for (r = 0; r < numRows(); r++) {
00158         for (c = 0; c < numCols(); c++) {
00159             const LayoutItem *li = self(r, c);
00160             const MatrixLayoutItemValue& v = self(r, c);
00161             if (li->isNonEmpty() && v.isMultiCell() && !v.isReference()) {
00162                 int dr, dc;
00163                 int min_width_sum = 0, hint_width_sum = 0;
00164                 int min_height_sum = 0, hint_height_sum = 0;
00165                 // first mark the relevent row and columns non-empty
00166                 // also let's count the relevent sizes
00167                 for (dr = 0; dr < v.rowSpan(); dr++) {
00168                     row_empty[r + dr] = false;
00169                     min_height_sum += max_min_height[r + dr];
00170                     hint_height_sum += max_hint_height[r + dr];
00171                 }
00172
00173                 for (dc = 0; dc < v.columnSpan(); dc++) {
00174                     col_empty[c + dc] = false;
00175                     min_width_sum += max_min_width[c + dc];
00176                     hint_width_sum += max_hint_width[c + dc];
00177                 }
00178                 // for rows and columns for hint and min sizes
00179                 adjust_cell_size(li->minimumSize().width(), min_width_sum,
00180                                  v.columnSpan(), c, max_min_width);
00181                 adjust_cell_size(li->minimumSize().height(), min_height_sum,
00182                                  v.rowSpan(), r, max_min_height);
00183                 adjust_cell_size(li->sizeHint().width(), hint_width_sum,
00184                                  v.columnSpan(), c, max_hint_width);
00185                 adjust_cell_size(li->sizeHint().height(), hint_height_sum,
00186                                  v.rowSpan(), r, max_hint_height);
00187             }
00188         }
00189     }
00190
00191     for (r = 0; r < numRows(); r++) {
00192         if (!row_empty[r]) {
00193             row_count++;
00194             min_h += max_min_height[r];
00195             hint_h += max_hint_height[r];
00196         }
00197     }
00198
00199     for (c = 0; c < numCols(); c++) {
00200         if (!col_empty[c]) {
00201             col_count++;
00202             min_w += max_min_width[c];
00203             hint_w += max_hint_width[c];
00204         }
00205     }
00206
00207     // don't forget spacing
00208     if (row_count) {
00209         min_h += (row_count - 1) * sp;
00210         hint_h += (row_count - 1) * sp;
00211     }
00212
00213     if (col_count) {
00214         min_w += (col_count - 1) * sp;
00215         hint_w += (col_count - 1) * sp;
00216     }
00217
00218     setSizeHint(Size(hint_w, hint_h));
00219     setMinimumSize(Size(min_w, min_h));
00220     Layout::validate();
00221 }

Here is the call graph for this function:

template<typename Container>

Compound::LayoutItemValue& Wt::LayoutStdContainer< Container >::value ( const LayoutItem * li ) [inline, protected, inherited]

Definition at line 520 of file layout.h.

Referenced by addItem(), insert(), and Wt::BoxLayout::setGeometry().

00520                                                                   {
00521         if (li != cached_li_) {
00522             cached_li_ = li;
00523             cached_it_ = find(Container::begin(), Container::end(), li);
00524         }
00525         return (cached_it_ != Container::end()) ? *cached_it_ : null_;
00526     }

friend class Grid [friend]

Definition at line 80 of file gridlayout.h.

WVar<int> Wt::LayoutItem::alignment [inherited]

Reimplemented in Wt::Label.

Definition at line 218 of file layout.h.

Referenced by Wt::PushButton::drawButtonLabel(), Wt::CascadeLayout::init(), Wt::Cascade::setAlignment(), Wt::Widget::setBackgroundPixmap(), Wt::Widget::setBackgroundPixmapFlags(), and Wt::CascadeLayout::setGeometry().

WVar<bool> Wt::Layout::autoAdd [inherited]

Definition at line 304 of file layout.h.

Referenced by Wt::Box::Box(), Wt::Cascade::Cascade(), Wt::Layout::eventFilter(), Wt::Grid::Grid(), and Wt::Layout::init().

std::queue<CellSpan> Wt::GridLayout::cellSpanQueue [protected]

Definition at line 242 of file gridlayout.h.

Referenced by addItem(), and Wt::Grid::operator=().

std::vector<bool> Wt::GridLayout::col_empty [private]

Definition at line 254 of file gridlayout.h.

Referenced by onGridSizeChange(), and validate().

std::vector<int> Wt::GridLayout::column_extra_space [private]

Definition at line 266 of file gridlayout.h.

Referenced by secondaryExtraSpace().

std::vector<int> Wt::GridLayout::column_stretch [private]

Definition at line 262 of file gridlayout.h.

Referenced by colStretch(), onGridSizeChange(), secondaryStretch(), and setColStretch().

std::vector<int> Wt::GridLayout::column_stretch_effective [private]

Definition at line 264 of file gridlayout.h.

Referenced by secondaryEffectiveStretch().

std::vector<int> Wt::GridLayout::column_width [private]

Definition at line 268 of file gridlayout.h.

Referenced by primaryCellItemLength(), and setGeometry().

std::vector<int> Wt::GridLayout::container_column_width [private]

Definition at line 270 of file gridlayout.h.

Referenced by primaryCellLength(), and setGeometry().

std::vector<int> Wt::GridLayout::container_row_height [private]

Definition at line 269 of file gridlayout.h.

Referenced by primaryCellLength(), and setGeometry().

const int Wt::LayoutItem::default_hint_size = 100 [static, inherited]

Definition at line 216 of file layout.h.

const int Wt::LayoutItem::default_max_size = ((int) ((unsigned int) (~0) >> 1)) [static, inherited]

Definition at line 214 of file layout.h.

const int Wt::LayoutItem::default_min_size = 30 [static, inherited]

Definition at line 215 of file layout.h.

Signal01<void, const Object *> Wt::Object::destroyed [inherited]

signals

Definition at line 139 of file object.h.

Referenced by Wt::Layout::addItem(), Wt::Object::installEventFilter(), and Wt::Object::~Object().

std::vector<bool> Wt::GridLayout::expanding_horizontally [private]

Definition at line 258 of file gridlayout.h.

Referenced by expandingPrimally(), onGridSizeChange(), and validate().

std::vector<bool> Wt::GridLayout::expanding_vertically [private]

Definition at line 259 of file gridlayout.h.

Referenced by expandingPrimally(), onGridSizeChange(), and validate().

WVar<int> Wt::Layout::margin [inherited]

Definition at line 302 of file layout.h.

Referenced by Wt::Layout::adjustMaximumSize(), Wt::Layout::init(), Wt::Widget::maximumSize(), Wt::Widget::minimumSize(), Wt::Frame::onLayoutChange(), Wt::Layout::onSpacingOverride(), Wt::BoxLayout::setGeometry(), Wt::Layout::setGeometry(), setGeometry(), Wt::CascadeLayout::setGeometry(), Wt::Widget::setMaximumSize(), Wt::Widget::setMinimumSize(), and Wt::Widget::sizeHint().

std::vector<int> Wt::GridLayout::max_hint_height [private]

Definition at line 252 of file gridlayout.h.

Referenced by onGridSizeChange(), primaryHintLength(), and validate().

std::vector<int> Wt::GridLayout::max_hint_width [private]

Definition at line 251 of file gridlayout.h.

Referenced by onGridSizeChange(), primaryHintLength(), and validate().

std::vector<int> Wt::GridLayout::max_min_height [private]

Definition at line 250 of file gridlayout.h.

Referenced by onGridSizeChange(), primaryMinLength(), and validate().

std::vector<int> Wt::GridLayout::max_min_width [private]

Definition at line 249 of file gridlayout.h.

Referenced by onGridSizeChange(), primaryMinLength(), and validate().

std::vector<bool> Wt::GridLayout::may_grow_horizontally [private]

Definition at line 256 of file gridlayout.h.

Referenced by mayGrowPrimally(), onGridSizeChange(), and validate().

std::vector<bool> Wt::GridLayout::may_grow_vertically [private]

Definition at line 257 of file gridlayout.h.

Referenced by mayGrowPrimally(), onGridSizeChange(), and validate().

std::vector<bool> Wt::GridLayout::row_empty [private]

Definition at line 253 of file gridlayout.h.

Referenced by onGridSizeChange(), and validate().

std::vector<int> Wt::GridLayout::row_extra_space [private]

Definition at line 265 of file gridlayout.h.

Referenced by secondaryExtraSpace().

std::vector<int> Wt::GridLayout::row_height [private]

Definition at line 267 of file gridlayout.h.

Referenced by primaryCellItemLength(), and setGeometry().

std::vector<int> Wt::GridLayout::row_stretch [private]

Definition at line 261 of file gridlayout.h.

Referenced by onGridSizeChange(), rowStretch(), secondaryStretch(), and setRowStretch().

std::vector<int> Wt::GridLayout::row_stretch_effective [private]

Definition at line 263 of file gridlayout.h.

Referenced by secondaryEffectiveStretch().

WVar<int> Wt::Layout::spacing [inherited]

Definition at line 303 of file layout.h.

Referenced by Wt::Layout::init(), Wt::Frame::onLayoutChange(), Wt::BoxLayout::setGeometry(), setGeometry(), Wt::BoxLayout::validate(), and validate().


Public Types
typedef Container::value_type	Compound
typedef std::list< Object * >	List
Public Member Functions
	GridLayout (Widget *parent, int margin=0, int spacing=-1, const std::string &name="GridLayout::anon")
	GridLayout (Layout *parent_layout, int margin=0, int spacing=-1, const std::string &name="GridLayout::anon")
	GridLayout (int spacing=-1, const std::string &name="GridLayout::anon")
void	insert (const LayoutItem *li, int row, int column)
void	insert (const LayoutItem *li, int row_from, int row_to, int column_from, int column_to)
virtual void	addItem (LayoutItem *li)
virtual void	setGeometry (const Rect &r)
	fixup all managed widgets geometry
virtual void	setRowStretch (int row, int stretch)
virtual void	setColStretch (int col, int stretch)
int	rowStretch (int row) const
int	colStretch (int col) const
virtual bool	isEmpty () const
virtual bool	removeItem (LayoutItem *li)
	returns true if a layoutitem is actually removed
virtual LayoutIterator	iterator ()
Widget *	mainWidget () const
bool	isTopLevel () const
virtual Size	sizeHint () const
virtual Size	minimumSize () const
virtual bool	eventFilter (Object , Event )
Object *	parent () const
const List &	children () const
List &	children ()
bool	isDescendant (const Object *p) const
virtual void	insertChild (Object *obj)
virtual void	removeChild (Object *obj)
void	reparent (Object *new_parent)
template<typename T>
void	deleteFirstChild ()
template<typename T>
void	deleteLastChild ()
template<typename T>
void	deleteAllChildren ()
Object *	topParent () const
	returns top level parent: it may return itself
const std::string &	name () const
void	installEventFilter (const Object *filterObj)
void	removeEventFilter (const Object *obj)
int	startTimer (int interval)
void	killTimer (int id)
void	killTimers ()
virtual bool	event (Event *e)
	event handling
virtual void	setMinimumSize (const Size &size)
virtual Size	maximumSize () const
virtual void	setMaximumSize (const Size &size)
virtual SizePolicy	sizePolicy () const
virtual void	setSizePolicy (const SizePolicy &size_policy)
virtual SizePolicy::ExpandData	expanding () const
virtual const Rect &	geometry () const
	return the widget's geometry relative to its parent
bool	isNonEmpty () const
virtual bool	hasHeightForWidth () const
virtual int	heightForWidth (int) const
template<typename TEST_TYPE>
TEST_TYPE	type () const
template<typename TEST_TYPE>
bool	is () const
Public Attributes
WVar< int >	margin
WVar< int >	spacing
WVar< bool >	autoAdd
Signal01< void, const Object * >	destroyed
	signals
WVar< int >	alignment
Static Public Attributes
static const int	default_max_size = ((int) ((unsigned int) (~0) >> 1))
static const int	default_min_size = 30
static const int	default_hint_size = 100
Protected Member Functions
virtual void	validate ()
	let's calc again sizeHint, minimumSize etc
int	secondaryEdges () const
std::vector< int > &	secondaryStretch ()
std::vector< int > &	secondaryEffectiveStretch ()
std::vector< int > &	secondaryExtraSpace ()
std::vector< int > &	primaryCellItemLength ()
std::vector< int > &	primaryCellLength ()
bool	mayGrowPrimally (int edge_index) const
bool	expandingPrimally (int edge_index) const
std::vector< int > &	primaryMinLength ()
std::vector< int > &	primaryHintLength ()
int	preferredLength (int edge_index, bool expand)
virtual bool	exists (const LayoutItem *li) const
Compound::LayoutItemValue &	value (const LayoutItem *li)
Compound::LayoutItemValue &	operator[] (const LayoutItem *li)
virtual bool	onAboutToChangeAutoAdd (bool auto_add)
virtual int	onSpacingOverride (int spacing)
void	adjustMaximumSize (int margin)
void	markDeleted (LayoutItem *li)
bool	isDeleted (LayoutItem *li) const
void	enforce ()
	enforces the layout in the mainWidget() children and layouts
void	postLayoutHintEvent ()
void	setWidthasPrimaryLength (bool width=true)
bool	isWidthPrimaryLength () const
template<typename TYPE>
int	primaryLength (const TYPE &t) const
int	preferredLength (const LayoutItem *li, bool expand) const
template<typename TYPE>
int	secondaryLength (const TYPE &t) const
template<typename TYPE>
int	primaryOffset (const TYPE &t) const
template<typename TYPE>
int	secondaryOffset (const TYPE &t) const
Point	getPoint (int primary_offset, int secondary_offset) const
Size	getSize (int primary, int secondary) const
Rect	getRect (int primary_offset, int secondary_offset, int primary_size, int secondary_size) const
int	primaryStretch (const SizePolicy &sp) const
bool	mayGrowPrimally (const SizePolicy &sp) const
bool	mayShrinkPrimally (const SizePolicy &sp) const
bool	expandingPrimally (const SizePolicy &sp) const
virtual void	childEvent (ChildEvent *)
	event handling specialization
virtual void	customEvent (CustomEvent *)
virtual void	timerEvent (TimerEvent *)
bool	filterEvent (Event *)
void	invalidateRecursively ()
bool	invalidated () const
virtual void	setSizeHint (const Size &size)
Protected Attributes
std::queue< CellSpan >	cellSpanQueue
Private Types
typedef MatrixLayoutItemMatrix::Edge	Edge
Private Member Functions
void	init ()
void	onGridSizeChange (int rows_old, int cols_old, int rows, int cols)
void	calcEdge (const int available_space, bool width_as_primary)
	calcs the width of the columns and the height of the rows
Private Attributes
std::vector< int >	max_min_width
std::vector< int >	max_min_height
std::vector< int >	max_hint_width
std::vector< int >	max_hint_height
std::vector< bool >	row_empty
std::vector< bool >	col_empty
std::vector< bool >	may_grow_horizontally
std::vector< bool >	may_grow_vertically
std::vector< bool >	expanding_horizontally
std::vector< bool >	expanding_vertically
std::vector< int >	row_stretch
std::vector< int >	column_stretch
std::vector< int >	row_stretch_effective
std::vector< int >	column_stretch_effective
std::vector< int >	row_extra_space
std::vector< int >	column_extra_space
std::vector< int >	row_height
std::vector< int >	column_width
std::vector< int >	container_row_height
std::vector< int >	container_column_width
Friends
class	Grid
Classes
class	CellSpan

Wt::GridLayout Class Reference

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Friends

Classes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
