wt: Wt Namespace Reference

The extra space is first divided between layout items with a stretch value. If there is none then the space is divided among expanding layout items. If there is none then space is divided among layout items that have the mayGrow flag set.

Definition at line 568 of file layout.h.

typedef std::vector<Point> Wt::PointArray

Definition at line 103 of file point.h.

typedef std::vector<Rect> Wt::RectArray

Definition at line 176 of file rect.h.

enum Wt::AlignmentFlags

Enumerator:

AlignAuto
AlignLeft
AlignRight
AlignHCenter
AlignJustify
AlignTop
AlignBottom
AlignVCenter
AlignCenter
AlignHorizontal_Mask
AlignVertical_Mask

Definition at line 30 of file flags.h.

00030              {
00031     AlignAuto = 0,
00032     AlignLeft = 1 << 0,
00033     AlignRight = 1 << 1,
00034     AlignHCenter = 1 << 2,
00035     AlignJustify = 1 << 3,
00036
00037     AlignTop = 1 << 4,
00038     AlignBottom = 1 << 5,
00039     AlignVCenter = 1 << 6,
00040
00041     AlignCenter = AlignHCenter | AlignVCenter,
00042
00043     AlignHorizontal_Mask = (AlignJustify << 1) - 1,
00044     AlignVertical_Mask = (AlignVCenter << 1) - 1 & ~AlignHorizontal_Mask
00045 } AlignmentFlags;

enum Wt::BackgroundImageFlags

Enumerator:

Unscaled
Scaled
Tiled

Definition at line 99 of file flags.h.

00099              {
00100     Unscaled = 0,
00101     Scaled = 1 << 0,
00102     Tiled = 1 << 1
00103 } BackgroundImageFlags;

enum Wt::ButtonState

Enumerator:

NoButton
LeftButton
RightButton
MidButton
ShiftButton
ControlButton
AltButton
MetaButton
Keypad
MouseButtonMask
KeyButtonMask

Definition at line 105 of file flags.h.

00105              {
00106     NoButton = 0,
00107     LeftButton = 1 << 0,
00108     RightButton = 1 << 1,
00109     MidButton = 1 << 2,
00110     ShiftButton = 1 << 3,
00111     ControlButton = 1 << 4,
00112     AltButton = 1 << 5,
00113     MetaButton = 1 << 6,
00114     Keypad = 1 << 7,
00115     MouseButtonMask = (MidButton << 1) - 1,
00116     KeyButtonMask = (Keypad << 1) - 1 & ~MouseButtonMask
00117 } ButtonState;

enum Wt::Key

Enumerator:

Key_AltBase
Key_Unknown
Key_Escape
Key_Tab
Key_Backtab
Key_Backspace
Key_Return
Key_Enter
Key_Insert
Key_Delete
Key_Pause
Key_Print
Key_SysReq
Key_Home
Key_End
Key_Left
Key_Up
Key_Right
Key_Down
Key_Prior
Key_Next
Key_Shift
Key_Shift_L
Key_Shift_R
Key_Control
Key_Control_L
Key_Control_R
Key_Alt
Key_Alt_L
Key_Alt_R
Key_Meta
Key_Meta_L
Key_Meta_R
Key_CapsLock
Key_NumLock
Key_ScrollLock
Key_Clear
Key_F1
Key_F2
Key_F3
Key_F4
Key_F5
Key_F6
Key_F7
Key_F8
Key_F9
Key_F10
Key_F11
Key_F12
Key_F13
Key_F14
Key_F15
Key_Super_L
Key_Super_R
Key_Menu
Key_Help
Key_Space
Key_Exclam
Key_QuoteDbl
Key_NumberSign
Key_Dollar
Key_Ampersand
Key_Apostrophe
Key_ParenLeft
Key_ParenRight
Key_Asterisk
Key_Plus
Key_Comma
Key_Minus
Key_Period
Key_Slash
Key_0
Key_1
Key_2
Key_3
Key_4
Key_5
Key_6
Key_7
Key_8
Key_9
Key_Colon
Key_Semicolon
Key_Less
Key_Equal
Key_Greater
Key_Question
Key_At
Key_A
Key_B
Key_C
Key_D
Key_E
Key_F
Key_G
Key_H
Key_I
Key_J
Key_K
Key_L
Key_M
Key_N
Key_O
Key_P
Key_Q
Key_R
Key_S
Key_T
Key_U
Key_V
Key_W
Key_X
Key_Y
Key_Z
Key_BracketLeft
Key_Backslash
Key_BracketRight
Key_Underscore
Key_QuoteLeft
Key_KPBase
Key_KP_Period
Key_KP_Divide
Key_KP_Multiply
Key_KP_Enter
Key_KP_Equal
Key_KP_Minus
Key_KP_Plus
Key_KP_0
Key_KP_1
Key_KP_2
Key_KP_3
Key_KP_4
Key_KP_5
Key_KP_6
Key_KP_7
Key_KP_8
Key_KP_9

Definition at line 119 of file flags.h.

00119              {
00120     Key_AltBase = 500,
00121     Key_Unknown = SDLK_UNKNOWN,
00122     Key_Escape = SDLK_ESCAPE,
00123     Key_Tab = SDLK_TAB,
00124     Key_Backtab = Key_AltBase + SDLK_TAB,
00125     Key_Backspace = SDLK_BACKSPACE,
00126     Key_Return = SDLK_RETURN,
00127     Key_Enter = SDLK_RETURN,
00128     Key_Insert = SDLK_INSERT,
00129     Key_Delete = SDLK_DELETE,
00130     Key_Pause = SDLK_PAUSE,
00131     Key_Print = SDLK_PRINT,
00132     Key_SysReq = SDLK_SYSREQ,
00133     Key_Home = SDLK_HOME,
00134     Key_End = SDLK_END,
00135     Key_Left = SDLK_LEFT,
00136     Key_Up = SDLK_UP,
00137     Key_Right = SDLK_RIGHT,
00138     Key_Down = SDLK_DOWN,
00139     Key_Prior = SDLK_PAGEUP,
00140     Key_Next = SDLK_PAGEDOWN,
00141     Key_Shift = SDLK_LSHIFT,
00142     Key_Shift_L = SDLK_LSHIFT,
00143     Key_Shift_R = SDLK_RSHIFT,
00144     Key_Control = SDLK_LCTRL,
00145     Key_Control_L = SDLK_LCTRL,
00146     Key_Control_R = SDLK_RCTRL,
00147     Key_Alt = SDLK_LALT,
00148     Key_Alt_L = SDLK_LALT,
00149     Key_Alt_R = SDLK_RALT,
00150     Key_Meta = SDLK_LMETA,
00151     Key_Meta_L = SDLK_LMETA,
00152     Key_Meta_R = SDLK_RMETA,
00153     Key_CapsLock = SDLK_CAPSLOCK,
00154     Key_NumLock = SDLK_NUMLOCK,
00155     Key_ScrollLock = SDLK_SCROLLOCK,
00156     Key_Clear = SDLK_CLEAR,
00157     Key_F1 = SDLK_F1,
00158     Key_F2 = SDLK_F2,
00159     Key_F3 = SDLK_F3,
00160     Key_F4 = SDLK_F4,
00161     Key_F5 = SDLK_F5,
00162     Key_F6 = SDLK_F6,
00163     Key_F7 = SDLK_F7,
00164     Key_F8 = SDLK_F8,
00165     Key_F9 = SDLK_F9,
00166     Key_F10 = SDLK_F10,
00167     Key_F11 = SDLK_F11,
00168     Key_F12 = SDLK_F12,
00169     Key_F13 = SDLK_F13,
00170     Key_F14 = SDLK_F14,
00171     Key_F15 = SDLK_F15,
00172     Key_Super_L = SDLK_LSUPER,
00173     Key_Super_R = SDLK_RSUPER,
00174     Key_Menu = SDLK_MENU,
00175     Key_Help = SDLK_HELP,
00176     Key_Space = SDLK_SPACE,
00177     //Key_Any
00178     Key_Exclam = SDLK_EXCLAIM,
00179     Key_QuoteDbl = SDLK_QUOTEDBL,
00180     Key_NumberSign = SDLK_HASH,
00181     Key_Dollar = SDLK_DOLLAR,
00182     //Key_Percent
00183     Key_Ampersand = SDLK_AMPERSAND,
00184     Key_Apostrophe = SDLK_QUOTE,
00185     Key_ParenLeft = SDLK_LEFTPAREN,
00186     Key_ParenRight = SDLK_RIGHTPAREN,
00187     Key_Asterisk = SDLK_ASTERISK,
00188     Key_Plus = SDLK_PLUS,
00189     Key_Comma = SDLK_COMMA,
00190     Key_Minus = SDLK_MINUS,
00191     Key_Period = SDLK_PERIOD,
00192     Key_Slash = SDLK_SLASH,
00193     Key_0 = SDLK_0,
00194     Key_1 = SDLK_1,
00195     Key_2 = SDLK_2,
00196     Key_3 = SDLK_3,
00197     Key_4 = SDLK_4,
00198     Key_5 = SDLK_5,
00199     Key_6 = SDLK_6,
00200     Key_7 = SDLK_7,
00201     Key_8 = SDLK_8,
00202     Key_9 = SDLK_9,
00203     Key_Colon = SDLK_COLON,
00204     Key_Semicolon = SDLK_SEMICOLON,
00205     Key_Less = SDLK_LESS,
00206     Key_Equal = SDLK_EQUALS,
00207     Key_Greater = SDLK_GREATER,
00208     Key_Question = SDLK_QUESTION,
00209     Key_At = SDLK_AT,
00210     Key_A = SDLK_a,
00211     Key_B = SDLK_b,
00212     Key_C = SDLK_c,
00213     Key_D = SDLK_d,
00214     Key_E = SDLK_e,
00215     Key_F = SDLK_f,
00216     Key_G = SDLK_g,
00217     Key_H = SDLK_h,
00218     Key_I = SDLK_i,
00219     Key_J = SDLK_j,
00220     Key_K = SDLK_k,
00221     Key_L = SDLK_l,
00222     Key_M = SDLK_m,
00223     Key_N = SDLK_n,
00224     Key_O = SDLK_o,
00225     Key_P = SDLK_p,
00226     Key_Q = SDLK_q,
00227     Key_R = SDLK_r,
00228     Key_S = SDLK_s,
00229     Key_T = SDLK_t,
00230     Key_U = SDLK_u,
00231     Key_V = SDLK_v,
00232     Key_W = SDLK_w,
00233     Key_X = SDLK_x,
00234     Key_Y = SDLK_y,
00235     Key_Z = SDLK_z,
00236     Key_BracketLeft = SDLK_LEFTBRACKET,
00237     Key_Backslash = SDLK_BACKSLASH,
00238     Key_BracketRight = SDLK_RIGHTBRACKET,
00239     //Key_AsciiCircum
00240     Key_Underscore = SDLK_UNDERSCORE,
00241     Key_QuoteLeft = SDLK_BACKQUOTE,
00242
00243     //keypad
00244     Key_KPBase = 1000,
00245     Key_KP_Period = Key_KPBase + SDLK_KP_PERIOD,
00246     Key_KP_Divide = Key_KPBase + SDLK_KP_DIVIDE,
00247     Key_KP_Multiply = Key_KPBase + SDLK_KP_MULTIPLY,
00248     Key_KP_Enter = Key_KPBase + SDLK_KP_ENTER,
00249     Key_KP_Equal = Key_KPBase + SDLK_KP_EQUALS,
00250     Key_KP_Minus = Key_KPBase + SDLK_KP_MINUS,
00251     Key_KP_Plus = Key_KPBase + SDLK_KP_PLUS,
00252     Key_KP_0 = Key_KPBase + SDLK_KP0,
00253     Key_KP_1 = Key_KPBase + SDLK_KP1,
00254     Key_KP_2 = Key_KPBase + SDLK_KP2,
00255     Key_KP_3 = Key_KPBase + SDLK_KP3,
00256     Key_KP_4 = Key_KPBase + SDLK_KP4,
00257     Key_KP_5 = Key_KPBase + SDLK_KP5,
00258     Key_KP_6 = Key_KPBase + SDLK_KP6,
00259     Key_KP_7 = Key_KPBase + SDLK_KP7,
00260     Key_KP_8 = Key_KPBase + SDLK_KP8,
00261     Key_KP_9 = Key_KPBase + SDLK_KP9
00262 } Key;

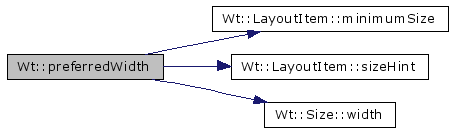

static int Wt::preferredWidth	(	const LayoutItem *	li,
		bool	expand
	)			`[static]`

Definition at line 60 of file cascadelayout.cpp.

References Wt::LayoutItem::minimumSize(), Wt::LayoutItem::sizeHint(), and Wt::Size::width().

Referenced by Wt::CascadeLayout::setGeometry().

00060                                                              {
00061     return (expand) ? li->sizeHint().width() : li->minimumSize().width();
00062 }

Here is the call graph for this function:

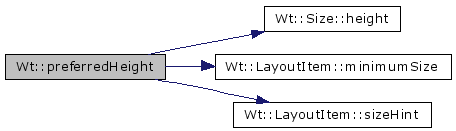

static int Wt::preferredHeight	(	const LayoutItem *	li,
		bool	expand
	)			`[static]`

Definition at line 64 of file cascadelayout.cpp.

References Wt::Size::height(), Wt::LayoutItem::minimumSize(), and Wt::LayoutItem::sizeHint().

Referenced by Wt::CascadeLayout::setGeometry().

00064                                                               {
00065     return (expand) ? li->sizeHint().height() : li->minimumSize().height();
00066 }

Here is the call graph for this function:

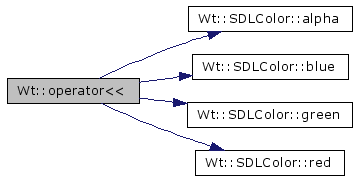

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Color &	c
	)

Operator for output streams.

Definition at line 561 of file color.cpp.

References Wt::SDLColor::alpha(), Wt::SDLColor::blue(), Wt::SDLColor::green(), and Wt::SDLColor::red().

00561                                                       {
00562     s << "(R"<< c.red() <<" G"<< c.green() <<" B"<< c.blue() <<" A"<< c.alpha() <<")";
00563     return s;
00564 }

Here is the call graph for this function:

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Font &	f
	)

Operator for output streams.

Definition at line 443 of file font.cpp.

References Wt::Font::description().

00443                                                      {
00444     s << f.description();
00445     return s;
00446 }

Here is the call graph for this function:

void Wt::adjust_cell_size	(	int	li_size,
		int	sum_size,
		int	cell_span,
		int	edge,
		std::vector< int > &	max_size
	)

Definition at line 26 of file gridlayout.cpp.

Referenced by Wt::GridLayout::validate().

00027                                                           {
00028     const int delta = li_size - sum_size;
00029     if (delta > 0) {
00030         // adjust all min width
00031         const int div = delta / cell_span;
00032         const int modulo = delta % cell_span;
00033
00034         for (int d = 0; d < cell_span; d++) {
00035             max_size[edge + d] += div + ((d < modulo) ? 1 : 0);
00036         }
00037     }
00038 }

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Object *	obj
	)

Definition at line 209 of file object.cpp.

References Wt::Object::name(), and Wt::Object::parent().

00209                                                          {
00210     const std::string& nm = (obj) ? obj->name() : "(null)";
00211     s << "object: " << nm << " ("
00212     << static_cast<const void *>(obj) << ") parent: ";
00213     const Object *parent = (obj) ? obj->parent() : 0;
00214     if (parent)
00215         s << parent->name() <<
00216         " (" << (void *) parent << ")";
00217     else
00218         s << "none (0)";
00219
00220     return s;
00221 }

Here is the call graph for this function:

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Object &	ref
	)

Definition at line 223 of file object.cpp.

00223                                                          {
00224     return s << &ref;
00225 }

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Event *	e
	)

Definition at line 227 of file object.cpp.

References Wt::Event::type().

00227                                                       {
00228     s << "Event " << static_cast<const void *>(e) << " type: " << e->type();
00229     return s;
00230 }

Here is the call graph for this function:

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Event &	e
	)

Definition at line 232 of file object.cpp.

00232                                                       {
00233     return s << &e;
00234 }

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Point &	p
	)

Print a point to a stream.

Definition at line 177 of file rect.cpp.

References Wt::Point::x(), and Wt::Point::y().

00177                                                       {
00178     s << "[" << p.x() << ", " << p.y() << "]";
00179     return s;
00180 }

Here is the call graph for this function:

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Size &	size
	)

Definition at line 182 of file rect.cpp.

References Wt::Size::height(), and Wt::Size::width().

00182                                                         {
00183     s << "[ " << size.width() << " x " << size.height() << " ]";
00184     return s;
00185 }

Here is the call graph for this function:

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Rect &	r
	)

Print a rectangle to a stream, formatted as (x,y,w,h).

Definition at line 187 of file rect.cpp.

References Wt::SDLRect::height(), Wt::SDLRect::width(), Wt::SDLRect::x(), and Wt::SDLRect::y().

00187                                                      {
00188     s << "(" << r.x() << "," << r.y() << "," << r.width() << "," << r.height() << ")";
00189     return s;
00190 }

Here is the call graph for this function:

std::ostream & Wt::operator<<	(	std::ostream &	s,
		const Region &	r
	)

stream region output for debugging

Definition at line 1006 of file region.cpp.

References Wt::Region::boundingRect(), and Wt::Region::rects().

01006                                                        {
01007     const RectArray& ra = r.rects();
01008     const int n = ra.size();
01009
01010     s << "Region extents: " << r.boundingRect() << std::endl;
01011     for (int i = 0; i < n; i++) {
01012         s << "  rect[" << i << "] = " << ra[i] << std::endl;
01013     }
01014     return s;
01015 }

Here is the call graph for this function:

static Mix_Chunk* Wt::clone_chunk ( const Mix_Chunk * chunk_p ) [static]

Definition at line 321 of file sdlmixer.cpp.

References trace.

Referenced by Wt::SDLMixer::Chunk::clone(), and Wt::SDLMixer::Chunk::detach().

00321                                                         {
00322     Mix_Chunk *new_chunk_p = static_cast<Mix_Chunk *>(malloc(sizeof(Mix_Chunk)));
00323     *new_chunk_p = *chunk_p;
00324     new_chunk_p->allocated = 0;
00325     trace("sdlmixer", "clone_chunk %p --> %p\n", chunk_p, new_chunk_p);
00326     return new_chunk_p;
00327 }

static SDL_Surface* Wt::deconst ( const SDLSurface src ) [static]

Definition at line 60 of file sdlsurface.cpp.

Referenced by Wt::SDLSurface::blit(), Wt::SDLSurface::blitAlphaCopy(), Wt::SDLSurface::clipRect(), and Wt::SDLSurface::scale_surface().

00060                                                   {
00061     //SDL breakage
00062     return const_cast<SDL_Surface *>
00063            (static_cast<const SDL_Surface *>(src));
00064 }

static int Wt::safe_blit	(	SDL_Surface *	src,
		SDL_Rect *	srcrect,
		SDL_Surface *	dst,
		SDL_Rect *	dstrect
	)			`[static]`

Definition at line 208 of file sdlsurface.cpp.

Referenced by Wt::SDLSurface::blit().

00209                                                           {
00210     int err;
00211     while ((err = SDL_BlitSurface(src, srcrect, dst, dstrect)) == -2) {
00212         while (SDL_LockSurface(src) < 0)
00213             //SDL_Delay(10);
00214             /// \todo Write image pixels to image->pixels
00215             SDL_UnlockSurface(src);
00216     }
00217     assert(!err);
00218     return err;
00219 }

static Uint32 Wt::timer_callback	(	Uint32	interval,
		void *	param
	)			`[static]`

Timer callback. Executed by timer (other) thread It is safe since we only pushing to SDL event queue. At that stage SDLTimer object is not dead. However it is possible (legal) for the SDLTimer to die after this callback invocation

Definition at line 35 of file sdltimer.cpp.

References Wt::SDLEvent::push(), Wt::SDLEvent::Time, and trace.

Referenced by Wt::SDLTimer::scheduleNext().

00035                                                            {
00036     SDL_Event event;
00037
00038     event.type = SDLEvent::Time;
00039     event.user.code = 0;
00040     event.user.data1 = new
00041                        SDLTimer::Event(* static_cast<SDLTimer::Event *>(param));
00042     event.user.data2 = 0;
00043
00044     trace("sdltimer", "timer_callback called\n");
00045
00046     SDLEvent::push(&event);
00047
00048     return interval;
00049 }

Here is the call graph for this function:

static void Wt::finished_chunk ( Audio::Chunk * c ) [static]

Definition at line 69 of file sound.cpp.

Referenced by Wt::Sound::play().

00069                                           {
00070     delete c;
00071 }

static int Wt::stderr_print	(	const char *	msg,
			...
	)			`[inline, static]`

Definition at line 48 of file trace.h.

00048                                                      {
00049     int ret;
00050     va_list ap;
00051     va_start(ap, msg);
00052     ret = vfprintf(stderr, msg, ap);
00053     va_end(ap);
00054     return ret;
00055 }

static void Wt::do_nothing	(	const char *	relay,
		const char *	msg,
			...
	)			`[inline, static]`

Definition at line 151 of file trace.h.

00151                                                                        {
00152     if (0 && relay && msg) {}
00153 }

static Trace& Wt::getTrace	(	const char *	filename,
		int	line
	)			`[inline, static]`

Definition at line 188 of file trace.h.

00188                                                               {
00189     static Trace trace_;
00190     trace_.setInfo(filename, line);
00191     return trace_;
00192 }

static bool Wt::isWidget ( Object * w ) [static]

Definition at line 77 of file widget.cpp.

Referenced by Wt::Widget::~Widget().

00077                                 {
00078     return w && dynamic_cast<Widget *>(w);
00079 }

template<typename ITERATOR>

static Widget* Wt::findNextWidget	(	ITERATOR	start,
		ITERATOR	finish
	)			`[static]`

Definition at line 699 of file widget.cpp.

References Wt::FocusEvent::Tab.

Referenced by Wt::Widget::focusNextPrevChild().

00699                                                                {
00700     for (ITERATOR it = start; it != finish; ++it) {
00701         Widget *w = dynamic_cast<Widget *>(*it);
00702         if (w && w->isFocusEnabled(FocusEvent::Tab))
00703             return w;
00704     }
00705     return 0;
00706 }

static void Wt::postLayoutHintEventRecursively ( Widget * w ) [static]

Definition at line 818 of file widget.cpp.

References Wt::Object::children(), and Wt::Application::postEvent().

Referenced by Wt::Widget::hiddenChanged().

00818                                                       {
00819     for (Object::List::const_iterator child(w->children().begin()),
00820             end(w->children().end()); child != end; ++child) {
00821         Widget* ww = dynamic_cast<Widget *>(*child);
00822         // guard against a non widget (e.g. layout) child.
00823         if (ww) {
00824             postLayoutHintEventRecursively(ww);
00825         }
00826     }
00827     Application::postEvent(w, new LayoutHintEvent());
00828 }

Here is the call graph for this function:

const unsigned char Wt::BultinFontData[] [static]

Definition at line 14 of file builtin_font.h.

Referenced by Wt::Font::open_default_font().

const unsigned int Wt::BultinFontDataSize [static]

Initial value:

    sizeof(BultinFontData) / sizeof(BultinFontData[0])

Definition at line 264 of file builtin_font.h.

Referenced by Wt::Font::open_default_font().


Classes
class	SingleShot
class	TimerBlock
class	VarBlock
class	Application
	Toplevel application class. More...
class	BaseFactory
class	Factory
class	Audio
	implementations e.g. NullAudio, SDLMixer etc More...
class	NullAudio
class	Box
class	HBox
class	VBox
class	ButtonGroup
class	Button
	Button Class. More...
class	Cascade
class	CascadeLayoutItemValue
class	CascadeLayoutIterator
class	CascadeLayout
class	Color
	using 8-bits per red, green, blue, and alpha channels More...
class	Time
	A time class to escape SDL's 2^32 ms epoch limitations. More...
class	Dialog
class	Display
class	Enum
	typesafe enumaration like class More...
class	Event
class	TimerEvent
class	PaintEvent
class	ResizeEvent
class	MoveEvent
class	LayoutHintEvent
class	ShowEvent
class	HideEvent
class	ChildEvent
class	CustomEvent
class	InputEvent
class	MouseEvent
class	WheelEvent
class	KeyEvent
class	FocusEvent
class	CloseEvent
class	FlagMap
	maps the flags of the underlying system to ours More...
class	W
class	FocusData
class	Font
class	Frame
class	Grid
class	MatrixLayoutItemValue
class	GridLayoutIterator
class	GridLayout
class	Label
	Display a text or pixmap message on screen. More...
class	LayoutIteratorInterface
class	NullLayoutIterator
class	LayoutIterator
class	LayoutItem
	all layoutItems should inherit from this. It's their interface More...
class	Layout
	handles the layout of widgets More...
class	NullClass
class	LayoutItemCompound
class	LayoutStdContainerIterator
class	LayoutStdContainer
class	BoxLayoutItemValue
class	BoxLayoutIterator
class	BoxLayout
class	HBoxLayout
class	VBoxLayout
class	Matrix
class	Object
class	Pen
class	Brush
class	Painter
	class that allows drawing graphics primitives onto a Pixmap More...
class	PixmapOf
	used as a base for the Pixmap and the Display More...
class	Pixmap
class	Point
	Class to handle x,y - points on the screen. More...
class	PushButton
	PushButton Class. More...
class	Rect
	Rectangle class. Has corners, fill, etc. More...
class	Region
	Region specifies a 'working area' of the screen. More...
class	RootWindow
class	SDLColor
class	SDLDisplay
	interface to the underlying SDL_VideoSurface More...
class	SDLEvent
class	SDLInput
	useful for transforming SDL events to normal Event More...
class	SDLMixer
	Wrapper class around the audio mixer. More...
class	SDLPalette
class	SDLPixelFormat
class	SDLRect
class	SDLSurface
class	SDLTimer
class	Singleton
class	Size
class	SizePolicy
class	Sound
class	Spacer
class	HSpacer
class	VSpacer
class	Timer
	Timer handles known events that must happen (fairly) regularly. More...
class	ToggleButton
	ToggleButton Class. More...
class	Trace
class	Widget
class	Window
class	Signal01
class	Signal012
class	Signal012M
class	WVarBase
	Watched variable avoids the need for get/set methods. More...
class	WVar
	read only More...
class	WVar< VARTYPE, WVarBase< int >::RW >
	read write specialization More...
Namespaces
namespace	SDL
Typedefs
typedef LayoutItemCompound< CascadeLayoutItemValue >	CascadeLayoutItemCompound
typedef std::list< CascadeLayoutItemCompound >	CascadeLayoutItemList
typedef LayoutStdContainer< CascadeLayoutItemList >	CascadeLayoutBase
typedef std::list< Widget * >	WidgetList
typedef LayoutItemCompound< MatrixLayoutItemValue >	MatrixLayoutItemCompound
typedef Matrix< MatrixLayoutItemCompound >	MatrixLayoutItemMatrix
typedef LayoutStdContainer< MatrixLayoutItemMatrix >	GridLayoutBase
typedef LayoutItemCompound< BoxLayoutItemValue >	BoxLayoutItemCompound
typedef std::list< BoxLayoutItemCompound >	BoxLayoutItemList
typedef LayoutStdContainer< BoxLayoutItemList >	BoxLayoutBase
typedef std::vector< Point >	PointArray
typedef std::vector< Rect >	RectArray
Enumerations
enum	AlignmentFlags { AlignAuto = 0, AlignLeft = 1 << 0, AlignRight = 1 << 1, AlignHCenter = 1 << 2, AlignJustify = 1 << 3, AlignTop = 1 << 4, AlignBottom = 1 << 5, AlignVCenter = 1 << 6, AlignCenter = AlignHCenter \| AlignVCenter, AlignHorizontal_Mask = (AlignJustify << 1) - 1, AlignVertical_Mask = (AlignVCenter << 1) - 1 & ~AlignHorizontal_Mask }
enum	BackgroundImageFlags { Unscaled = 0, Scaled = 1 << 0, Tiled = 1 << 1 }
enum	ButtonState { NoButton = 0, LeftButton = 1 << 0, RightButton = 1 << 1, MidButton = 1 << 2, ShiftButton = 1 << 3, ControlButton = 1 << 4, AltButton = 1 << 5, MetaButton = 1 << 6, Keypad = 1 << 7, MouseButtonMask = (MidButton << 1) - 1, KeyButtonMask = (Keypad << 1) - 1 & ~MouseButtonMask }
enum	Key { Key_AltBase = 500, Key_Unknown = SDLK_UNKNOWN, Key_Escape = SDLK_ESCAPE, Key_Tab = SDLK_TAB, Key_Backtab = Key_AltBase + SDLK_TAB, Key_Backspace = SDLK_BACKSPACE, Key_Return = SDLK_RETURN, Key_Enter = SDLK_RETURN, Key_Insert = SDLK_INSERT, Key_Delete = SDLK_DELETE, Key_Pause = SDLK_PAUSE, Key_Print = SDLK_PRINT, Key_SysReq = SDLK_SYSREQ, Key_Home = SDLK_HOME, Key_End = SDLK_END, Key_Left = SDLK_LEFT, Key_Up = SDLK_UP, Key_Right = SDLK_RIGHT, Key_Down = SDLK_DOWN, Key_Prior = SDLK_PAGEUP, Key_Next = SDLK_PAGEDOWN, Key_Shift = SDLK_LSHIFT, Key_Shift_L = SDLK_LSHIFT, Key_Shift_R = SDLK_RSHIFT, Key_Control = SDLK_LCTRL, Key_Control_L = SDLK_LCTRL, Key_Control_R = SDLK_RCTRL, Key_Alt = SDLK_LALT, Key_Alt_L = SDLK_LALT, Key_Alt_R = SDLK_RALT, Key_Meta = SDLK_LMETA, Key_Meta_L = SDLK_LMETA, Key_Meta_R = SDLK_RMETA, Key_CapsLock = SDLK_CAPSLOCK, Key_NumLock = SDLK_NUMLOCK, Key_ScrollLock = SDLK_SCROLLOCK, Key_Clear = SDLK_CLEAR, Key_F1 = SDLK_F1, Key_F2 = SDLK_F2, Key_F3 = SDLK_F3, Key_F4 = SDLK_F4, Key_F5 = SDLK_F5, Key_F6 = SDLK_F6, Key_F7 = SDLK_F7, Key_F8 = SDLK_F8, Key_F9 = SDLK_F9, Key_F10 = SDLK_F10, Key_F11 = SDLK_F11, Key_F12 = SDLK_F12, Key_F13 = SDLK_F13, Key_F14 = SDLK_F14, Key_F15 = SDLK_F15, Key_Super_L = SDLK_LSUPER, Key_Super_R = SDLK_RSUPER, Key_Menu = SDLK_MENU, Key_Help = SDLK_HELP, Key_Space = SDLK_SPACE, Key_Exclam = SDLK_EXCLAIM, Key_QuoteDbl = SDLK_QUOTEDBL, Key_NumberSign = SDLK_HASH, Key_Dollar = SDLK_DOLLAR, Key_Ampersand = SDLK_AMPERSAND, Key_Apostrophe = SDLK_QUOTE, Key_ParenLeft = SDLK_LEFTPAREN, Key_ParenRight = SDLK_RIGHTPAREN, Key_Asterisk = SDLK_ASTERISK, Key_Plus = SDLK_PLUS, Key_Comma = SDLK_COMMA, Key_Minus = SDLK_MINUS, Key_Period = SDLK_PERIOD, Key_Slash = SDLK_SLASH, Key_0 = SDLK_0, Key_1 = SDLK_1, Key_2 = SDLK_2, Key_3 = SDLK_3, Key_4 = SDLK_4, Key_5 = SDLK_5, Key_6 = SDLK_6, Key_7 = SDLK_7, Key_8 = SDLK_8, Key_9 = SDLK_9, Key_Colon = SDLK_COLON, Key_Semicolon = SDLK_SEMICOLON, Key_Less = SDLK_LESS, Key_Equal = SDLK_EQUALS, Key_Greater = SDLK_GREATER, Key_Question = SDLK_QUESTION, Key_At = SDLK_AT, Key_A = SDLK_a, Key_B = SDLK_b, Key_C = SDLK_c, Key_D = SDLK_d, Key_E = SDLK_e, Key_F = SDLK_f, Key_G = SDLK_g, Key_H = SDLK_h, Key_I = SDLK_i, Key_J = SDLK_j, Key_K = SDLK_k, Key_L = SDLK_l, Key_M = SDLK_m, Key_N = SDLK_n, Key_O = SDLK_o, Key_P = SDLK_p, Key_Q = SDLK_q, Key_R = SDLK_r, Key_S = SDLK_s, Key_T = SDLK_t, Key_U = SDLK_u, Key_V = SDLK_v, Key_W = SDLK_w, Key_X = SDLK_x, Key_Y = SDLK_y, Key_Z = SDLK_z, Key_BracketLeft = SDLK_LEFTBRACKET, Key_Backslash = SDLK_BACKSLASH, Key_BracketRight = SDLK_RIGHTBRACKET, Key_Underscore = SDLK_UNDERSCORE, Key_QuoteLeft = SDLK_BACKQUOTE, Key_KPBase = 1000, Key_KP_Period = Key_KPBase + SDLK_KP_PERIOD, Key_KP_Divide = Key_KPBase + SDLK_KP_DIVIDE, Key_KP_Multiply = Key_KPBase + SDLK_KP_MULTIPLY, Key_KP_Enter = Key_KPBase + SDLK_KP_ENTER, Key_KP_Equal = Key_KPBase + SDLK_KP_EQUALS, Key_KP_Minus = Key_KPBase + SDLK_KP_MINUS, Key_KP_Plus = Key_KPBase + SDLK_KP_PLUS, Key_KP_0 = Key_KPBase + SDLK_KP0, Key_KP_1 = Key_KPBase + SDLK_KP1, Key_KP_2 = Key_KPBase + SDLK_KP2, Key_KP_3 = Key_KPBase + SDLK_KP3, Key_KP_4 = Key_KPBase + SDLK_KP4, Key_KP_5 = Key_KPBase + SDLK_KP5, Key_KP_6 = Key_KPBase + SDLK_KP6, Key_KP_7 = Key_KPBase + SDLK_KP7, Key_KP_8 = Key_KPBase + SDLK_KP8, Key_KP_9 = Key_KPBase + SDLK_KP9 }
Functions
static int	preferredWidth (const LayoutItem *li, bool expand)
static int	preferredHeight (const LayoutItem *li, bool expand)
std::ostream &	operator<< (std::ostream &s, const Color &c)
	Operator for output streams.
std::ostream &	operator<< (std::ostream &s, const Font &f)
	Operator for output streams.
void	adjust_cell_size (int li_size, int sum_size, int cell_span, int edge, std::vector< int > &max_size)
std::ostream &	operator<< (std::ostream &s, const Object *obj)
std::ostream &	operator<< (std::ostream &s, const Object &ref)
std::ostream &	operator<< (std::ostream &s, const Event *e)
std::ostream &	operator<< (std::ostream &s, const Event &e)
std::ostream &	operator<< (std::ostream &s, const Point &p)
	Print a point to a stream.
std::ostream &	operator<< (std::ostream &s, const Size &size)
std::ostream &	operator<< (std::ostream &s, const Rect &p)
	Print a rectangle to a stream, formatted as (x,y,w,h).
std::ostream &	operator<< (std::ostream &s, const Region &r)
	stream region output for debugging
static Mix_Chunk *	clone_chunk (const Mix_Chunk *chunk_p)
static SDL_Surface *	deconst (const SDLSurface src)
static int	safe_blit (SDL_Surface src, SDL_Rect srcrect, SDL_Surface dst, SDL_Rect dstrect)
static Uint32	timer_callback (Uint32 interval, void *param)
static void	finished_chunk (Audio::Chunk *c)
static int	stderr_print (const char *msg,...)
static void	do_nothing (const char relay, const char msg,...)
static Trace &	getTrace (const char *filename, int line)
static bool	isWidget (Object *w)
template<typename ITERATOR>
static Widget *	findNextWidget (ITERATOR start, ITERATOR finish)
static void	postLayoutHintEventRecursively (Widget *w)
Variables
static const unsigned char	BultinFontData []
static const unsigned int	BultinFontDataSize

Wt Namespace Reference

Classes

Namespaces

Typedefs

Enumerations

Functions

Variables

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
