Wt::SDLSurface

Wt::SDLSurface Class Reference

#include <sdlsurface.h>

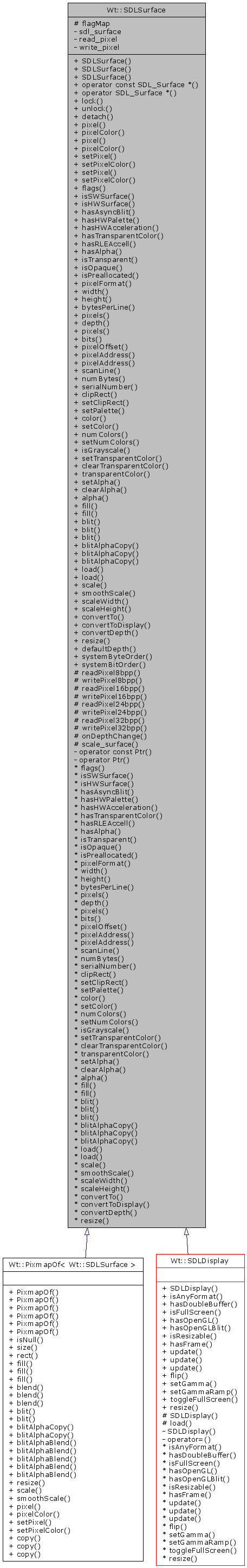

Inheritance diagram for Wt::SDLSurface:

Inheritance graph
[legend]

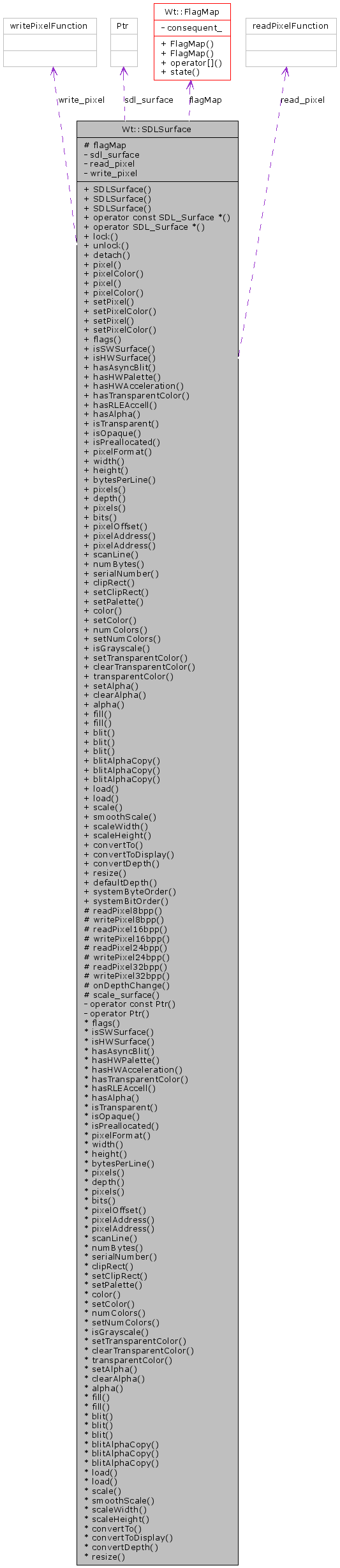

Collaboration diagram for Wt::SDLSurface:

Collaboration graph
[legend]
List of all members.

Public Types

 IgnoreEndian
 BigEndian = SDL_BIG_ENDIAN
 LittleEndian = SDL_LIL_ENDIAN
 ScaleFree
 ScaleMin
 ScaleMax
enum  Endian { IgnoreEndian, BigEndian = SDL_BIG_ENDIAN, LittleEndian = SDL_LIL_ENDIAN }
enum  ScaleMode { ScaleFree, ScaleMin, ScaleMax }

Public Member Functions

 SDLSurface (int w, int h, int depth=-1, int flags=0)
 constructor for a sized surface
 SDLSurface (SDL_Surface *surface=0)
 constructor from SDL_Surface. we take over ownership
 SDLSurface (const std::string &filename)
 constructor from file
 operator const SDL_Surface * () const
 operator SDL_Surface * ()
int lock ()
int unlock ()
void detach ()
int pixel (int pixel_offset) const
SDLColor pixelColor (int pixel_offset) const
int pixel (int x, int y) const
SDLColor pixelColor (int x, int y) const
void setPixel (int pixel_offset, int pixel_value)
void setPixelColor (int pixel_offset, const SDLColor &color)
void setPixel (int x, int y, int pixel_value)
void setPixelColor (int x, int y, const SDLColor &color)
Informative methods
int flags () const
bool isSWSurface () const
bool isHWSurface () const
bool hasAsyncBlit () const
bool hasHWPalette () const
bool hasHWAcceleration () const
bool hasTransparentColor () const
bool hasRLEAccell () const
bool hasAlpha () const
bool isTransparent () const
bool isOpaque () const
bool isPreallocated () const
const SDLPixelFormat pixelFormat () const
int width () const
int height () const
int bytesPerLine () const
const void * pixels () const
int depth () const
void * pixels ()
void * bits ()
int pixelOffset (int x, int y) const
void * pixelAddress (int pixel_offset) const
void * pixelAddress (int x, int y) const
void * scanLine (int y)
size_t numBytes () const
int serialNumber () const
Clipping Methods
SDLRect clipRect () const
SDLRect setClipRect (const SDLRect &rect)
Colors and transparency methods
void setPalette (const std::vector< SDLColor > &ca, int offset, int flags=SDLPalette::Logical|SDLPalette::Physical)
SDLColor color (int index) const
void setColor (int i, const SDLColor &c)
int numColors () const
void setNumColors (int ncolors)
bool isGrayscale () const
void setTransparentColor (const SDLColor &color=SDLColor())
void clearTransparentColor ()
SDLColor transparentColor () const
void setAlpha (int alpha=SDLColor::Transparent)
void clearAlpha ()
int alpha () const
Painting and blitting methods
int fill (int v)
int fill (const SDLRect &dst, int v)
int blit (const SDLSurface &src)
 full blit
int blit (int x, int y, const SDLSurface &src)
 blit to
int blit (int x, int y, const SDLSurface &src, const SDLRect &src_rect)
 blit to from
int blitAlphaCopy (const SDLSurface &src)
 copy to from src
int blitAlphaCopy (int x, int y, const SDLSurface &src)
 copy to from src
int blitAlphaCopy (int x, int y, const SDLSurface &src, const SDLRect &src_rect)
 copy to from src rect
bool load (const std::string &fileName)
 load an image from a file
bool load (const void *p, size_t size)
 load an image from mem
Scaling methods
SDLSurface scale (int w, int h, ScaleMode mode=ScaleFree) const
SDLSurface smoothScale (int w, int h, ScaleMode mode=ScaleFree) const
SDLSurface scaleWidth (int w) const
SDLSurface scaleHeight (int h) const
Surface conversion methods
int convertTo (const SDLSurface src)
int convertToDisplay ()
int convertDepth (int new_depth)
void resize (int x, int y)

Static Public Member Functions

static int defaultDepth ()
static int systemByteOrder ()
 Determines the byte order of the display hardware.
static int systemBitOrder ()
 Determines the bit order of the display hardware.

Protected Member Functions

int readPixel8bpp (int pixel_offset) const
void writePixel8bpp (int pixel_offset, int pixel_value)
int readPixel16bpp (int pixel_offset) const
void writePixel16bpp (int pixel_offset, int pixel_value)
int readPixel24bpp (int pixel_offset) const
void writePixel24bpp (int pixel_offset, int pixel_value)
int readPixel32bpp (int pixel_offset) const
void writePixel32bpp (int pixel_offset, int pixel_value)
void onDepthChange ()
SDLSurface scale_surface (int w, int h, bool smooth, ScaleMode mode) const

Static Protected Attributes

static const FlagMap flagMap

Private Types

typedef boost::shared_ptr<
SDL_Surface > 		Ptr
typedef int(SDLSurface::*) readPixelFunction (int) const
typedef void(SDLSurface::*) writePixelFunction (int, int)

Private Member Functions

 operator const Ptr () const
 operator Ptr ()

Private Attributes

Ptr sdl_surface
readPixelFunction read_pixel
writePixelFunction write_pixel

Classes

class  Deleter
 boost smart pointers with it More...

Detailed Description

Definition at line 41 of file sdlsurface.h.

Member Typedef Documentation

typedef boost::shared_ptr<SDL_Surface> Wt::SDLSurface::Ptr [private]

Definition at line 346 of file sdlsurface.h.

typedef int(SDLSurface::*) Wt::SDLSurface::readPixelFunction(int) const [private]

Definition at line 358 of file sdlsurface.h.

typedef void(SDLSurface::*) Wt::SDLSurface::writePixelFunction(int, int) [private]

Definition at line 359 of file sdlsurface.h.

Member Enumeration Documentation

enum Wt::SDLSurface::Endian

Enumerator:
IgnoreEndian
BigEndian
LittleEndian

Definition at line 44 of file sdlsurface.h.

00044                  {
00045         IgnoreEndian,
00046         BigEndian = SDL_BIG_ENDIAN,
00047         LittleEndian = SDL_LIL_ENDIAN
00048     } Endian;

enum Wt::SDLSurface::ScaleMode

Enumerator:
ScaleFree
ScaleMin
ScaleMax

Definition at line 50 of file sdlsurface.h.

00050                  {
00051         ScaleFree,
00052         ScaleMin,
00053         ScaleMax
00054     } ScaleMode;

Constructor & Destructor Documentation

Wt::SDLSurface::SDLSurface ( int  w,
int  h,
int  depth = -1,
int  flags = 0
)

constructor for a sized surface

Definition at line 66 of file sdlsurface.cpp.

References height(), onDepthChange(), trace, and width().

Referenced by convertDepth(), Wt::SDLDisplay::resize(), and scale_surface().

00067         : sdl_surface(
00068             SDL_CreateRGBSurface(flagMap.state(flags ? flags : static_cast<int>(W::DefaultPixmapFlags)),
00069                                  w, h, (depth > 0) ? depth : defaultDepth(),
00070                          0, 0, 0, 0), Deleter()) {
00071     trace("sdlsurface",
00072           "Creating new SDL_Surface %p [%d x %d]\n",
00073           static_cast<SDL_Surface *>(*this), width(), height());
00074     onDepthChange();
00075 }

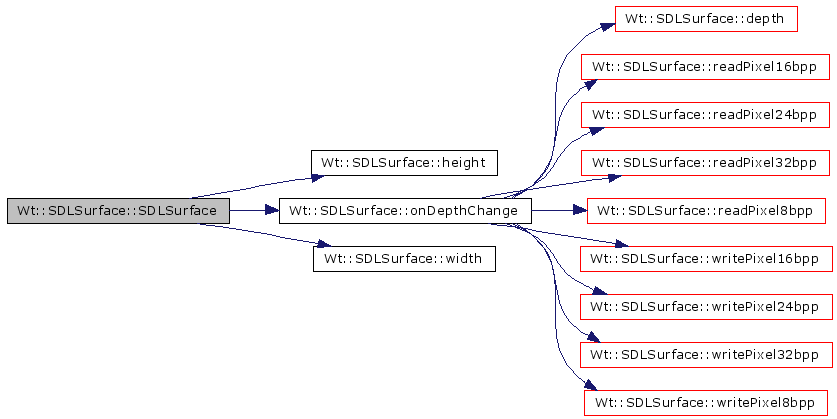

Here is the call graph for this function:

Wt::SDLSurface::SDLSurface ( SDL_Surface *  surface = 0  )

constructor from SDL_Surface. we take over ownership

Definition at line 77 of file sdlsurface.cpp.

References height(), onDepthChange(), trace, and width().

00078 : sdl_surface(surface, Deleter()) {
00079     if (surface) {
00080         trace("sdlsurface",
00081               "Creating from existing SDL_Surface %p [%d x %d]\n",
00082               static_cast<SDL_Surface *>(*this), width(), height());
00083     } else {
00084         trace("sdlsurface", "Creating NULL SDL_Surface %p\n", 0);
00085     }
00086     onDepthChange();
00087 }

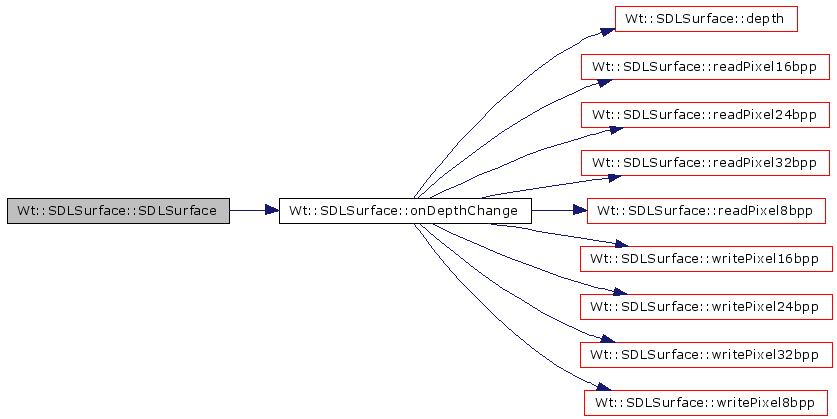

Here is the call graph for this function:

Wt::SDLSurface::SDLSurface ( const std::string &  filename  )

constructor from file

Definition at line 89 of file sdlsurface.cpp.

References Error, and onDepthChange().

00090         : sdl_surface(IMG_Load_RW(SDL_RWFromFile(
00091                               filename.c_str(), "rb"), 1), Deleter()) {
00092
00093     if(!*this) {
00094         Error("IMG_Load_RW: %s (%s)\n", IMG_GetError(), filename.c_str());
00095     }
00096
00097     onDepthChange();
00098 }

Here is the call graph for this function:

Member Function Documentation

int Wt::SDLSurface::alpha (  )  const [inline]

Definition at line 224 of file sdlsurface.h.

References Wt::SDLPixelFormat::alpha(), and pixelFormat().

Referenced by blitAlphaCopy(), isTransparent(), and setAlpha().

00224                       {
00225         return pixelFormat().alpha();
00226     }

Here is the call graph for this function:

void* Wt::SDLSurface::bits (  )  [inline]

Definition at line 162 of file sdlsurface.h.

References pixels().

00162                  {
00163         return pixels();
00164     }

Here is the call graph for this function:

int Wt::SDLSurface::blit ( int  x,
int  y,
const SDLSurface &  src,
const SDLRect &  src_rect
)

blit to from

SDL breakage

Definition at line 300 of file sdlsurface.cpp.

References Wt::deconst(), detach(), and Wt::safe_blit().

00301                                                                      {
00302     ///SDL breakage
00303     SDLRect s = src_rect;
00304     SDLRect dst(x, y, 0, 0);
00305     detach();
00306     return safe_blit(deconst(src), s, *this, dst);
00307 }

Here is the call graph for this function:

int Wt::SDLSurface::blit ( int  x,
int  y,
const SDLSurface &  src
)

blit to

Definition at line 294 of file sdlsurface.cpp.

References Wt::deconst(), detach(), and Wt::safe_blit().

00294                                                         {
00295     SDLRect dst(x, y, 0, 0);
00296     detach();
00297     return safe_blit(deconst(src), 0, *this, dst);
00298 }

Here is the call graph for this function:

int Wt::SDLSurface::blit ( const SDLSurface &  src  )

full blit

if (source surface has SDL_SRCALPHA set) { if (source surface has alpha channel (that is, format->Amask != 0)) blit using per-pixel alpha, ignoring any colour key else { if (source surface has SDL_SRCCOLORKEY set) blit using the colour key AND the per-surface alpha value else blit using the per-surface alpha value } } else { if (source surface has SDL_SRCCOLORKEY set) blit using the colour key else ordinary opaque rectangular blit }

Note: The per-surface alpha value of 128 is considered a special case and is optimised, so it's much faster than other per-surface values.

Alpha effects surface blitting in the following ways:

RGBA->RGB with SDL_SRCALPHA The source is alpha-blended with the destination, using the alpha channel. SDL_SRCCOLORKEY and the per-surface alpha are ignored.

RGBA->RGB without SDL_SRCALPHA The RGB data is copied from the source. The source alpha channel and the per-surface alpha value are ignored.

RGB->RGBA with SDL_SRCALPHA The source is alpha-blended with the destination using the per-surface alpha value. If SDL_SRCCOLORKEY is set, only the pixels not matching the colorkey value are copied. The alpha channel of the copied pixels is set to opaque.

RGB->RGBA without SDL_SRCALPHA The RGB data is copied from the source and the alpha value of the copied pixels is set to opaque. If SDL_SRCCOLORKEY is set, only the pixels not matching the colorkey value are copied.

RGBA->RGBA with SDL_SRCALPHA The source is alpha-blended with the destination using the source alpha channel. The alpha channel in the destination surface is left untouched. SDL_SRCCOLORKEY is ignored.

RGBA->RGBA without SDL_SRCALPHA The RGBA data is copied to the destination surface. If SDL_SRCCOLORKEY is set, only the pixels not matching the colorkey value are copied.

RGB->RGB with SDL_SRCALPHA The source is alpha-blended with the destination using the per-surface alpha value. If SDL_SRCCOLORKEY is set, only the pixels not matching the colorkey value are copied.

RGB->RGB without SDL_SRCALPHA The RGB data is copied from the source. If SDL_SRCCOLORKEY is set, only the pixels not matching the colorkey value are copied.

Note: Note that RGBA->RGBA blits (with SDL_SRCALPHA set) keep the alpha of the destination surface. This means that you cannot compose two arbitrary RGBA surfaces this way and get the result you would expect from "overlaying" them; the destination alpha will work as a mask.

Also note that per-pixel and per-surface alpha cannot be combined; the per-pixel alpha is always used if available

Definition at line 289 of file sdlsurface.cpp.

References Wt::deconst(), detach(), and Wt::safe_blit().

Referenced by blitAlphaCopy(), and convertDepth().

00289                                           {
00290     detach();
00291     return safe_blit(deconst(src), 0, *this, 0);
00292 }

Here is the call graph for this function:

int Wt::SDLSurface::blitAlphaCopy ( int  x,
int  y,
const SDLSurface &  src,
const SDLRect &  src_rect
)

copy to from src rect

Definition at line 377 of file sdlsurface.cpp.

References alpha(), blit(), Wt::deconst(), depth(), hasAlpha(), hasTransparentColor(), Wt::SDLColor::Opaque, pixelFormat(), and Wt::SDLPixelFormat::transparentPixelValue().

00378                                                        {
00379     assert(depth() == src.depth());
00380
00381     bool has_alpha = src.hasAlpha();
00382     bool has_colorkey = src.hasTransparentColor();
00383     int alpha = 0, pv = 0;
00384
00385     // note: we can't use set/clearAlpha beacuse of detach
00386     if (has_alpha) {
00387         alpha = src.alpha();
00388         SDL_SetAlpha(deconst(src), 0, SDLColor::Opaque);
00389     }
00390
00391     if (has_colorkey) {
00392         pv = src.pixelFormat().transparentPixelValue();
00393         SDL_SetColorKey(deconst(src), 0, 0);
00394     }
00395
00396     int status = blit(x, y, src, src_rect);
00397
00398     if (has_alpha) {
00399         SDL_SetAlpha(deconst(src), SDL_SRCALPHA, alpha);
00400     }
00401
00402     if (has_colorkey) {
00403         SDL_SetColorKey(deconst(src), SDL_SRCCOLORKEY | SDL_RLEACCEL, pv);
00404     }
00405     return status;
00406 }

Here is the call graph for this function:

int Wt::SDLSurface::blitAlphaCopy ( int  x,
int  y,
const SDLSurface &  src
)

copy to from src

Definition at line 412 of file sdlsurface.cpp.

References blitAlphaCopy(), height(), and width().

00412                                                                  {
00413     return blitAlphaCopy(x, y, src, SDLRect(0, 0, src.width(), src.height()));
00414 }

Here is the call graph for this function:

int Wt::SDLSurface::blitAlphaCopy ( const SDLSurface &  src  )

copy to from src

Definition at line 408 of file sdlsurface.cpp.

References height(), and width().

Referenced by blitAlphaCopy().

00408                                                    {
00409     return blitAlphaCopy(0, 0, src, SDLRect(0, 0, src.width(), src.height()));
00410 }

Here is the call graph for this function:

int Wt::SDLSurface::bytesPerLine (  )  const [inline]

Definition at line 146 of file sdlsurface.h.

References sdl_surface.

Referenced by numBytes(), pixelOffset(), and scanLine().

00146                              {
00147         return sdl_surface->pitch;
00148     }

void Wt::SDLSurface::clearAlpha (  )

Definition at line 192 of file sdlsurface.cpp.

References detach(), and Wt::SDLColor::Opaque.

00192                             {
00193     detach();
00194     SDL_SetAlpha(*this, 0, SDLColor::Opaque);
00195 }

Here is the call graph for this function:

void Wt::SDLSurface::clearTransparentColor (  )

Definition at line 182 of file sdlsurface.cpp.

References detach().

00182                                        {
00183     detach();
00184     SDL_SetColorKey(*this, 0, 0);
00185 }

Here is the call graph for this function:

SDLRect Wt::SDLSurface::clipRect (  )  const

Definition at line 112 of file sdlsurface.cpp.

References Wt::deconst(), and sdl_surface.

00112                                    {
00113     SDLRect r;
00114     SDL_GetClipRect(deconst(*this), r);
00115     assert(r == sdl_surface->clip_rect);
00116     return r;
00117 }

Here is the call graph for this function:

SDLColor Wt::SDLSurface::color ( int  index  )  const [inline]

Definition at line 205 of file sdlsurface.h.

References Wt::SDLPixelFormat::palette(), and pixelFormat().

Referenced by setPixelColor(), and setTransparentColor().

00205                                     {
00206         return pixelFormat().palette()[index];
00207     }

Here is the call graph for this function:

int Wt::SDLSurface::convertDepth ( int  new_depth  )

Definition at line 354 of file sdlsurface.cpp.

References blit(), height(), sdl_surface, SDLSurface(), and width().

00354                                           {
00355     SDLSurface dst = SDLSurface(width(), height(), new_depth);
00356     if (dst) {
00357         dst.blit(*this);
00358         sdl_surface = dst;
00359         return 0;
00360     }
00361     return -1;
00362 }

Here is the call graph for this function:

int Wt::SDLSurface::convertTo ( const SDLSurface  src  )

Definition at line 329 of file sdlsurface.cpp.

References flags(), pixelFormat(), and sdl_surface.

00329                                               {
00330     if (*this == src)
00331         return 0;
00332     /// \bug GCC bug. does not enfoce constness
00333     SDLPixelFormat f = src.pixelFormat();
00334     SDLSurface dst = SDL_ConvertSurface(*this, f, src.flags());
00335
00336     if (dst) {
00337         sdl_surface = dst;
00338         return 0;
00339     }
00340
00341     return -1;
00342 }

Here is the call graph for this function:

int Wt::SDLSurface::convertToDisplay (  )

Definition at line 344 of file sdlsurface.cpp.

References sdl_surface.

00344                                  {
00345     SDLSurface dst = SDL_DisplayFormatAlpha(*this);
00346     if (dst) {
00347         sdl_surface = dst;
00348         return 0;
00349     }
00350
00351     return -1;
00352 }

int Wt::SDLSurface::defaultDepth (  )  [static]

Definition at line 373 of file sdlsurface.cpp.

References Wt::Singleton< DERIVED >::instance().

00373                              {
00374     return SDLDisplay::instance()->depth();
00375 }

Here is the call graph for this function:

int Wt::SDLSurface::depth (  )  const [inline]

Definition at line 154 of file sdlsurface.h.

References Wt::SDLPixelFormat::bitsPerPixel(), and pixelFormat().

Referenced by blitAlphaCopy(), Wt::SDLDisplay::load(), and onDepthChange().

00154                       {
00155         return pixelFormat().bitsPerPixel();
00156     }

Here is the call graph for this function:

void Wt::SDLSurface::detach (  )

Definition at line 51 of file sdlsurface.cpp.

References flags(), pixelFormat(), and sdl_surface.

Referenced by blit(), clearAlpha(), clearTransparentColor(), fill(), lock(), setAlpha(), setClipRect(), setPalette(), setTransparentColor(), and unlock().

00051                         {
00052     //avoid detaching if we are the only client for this surface
00053     if (!sdl_surface.unique()) {
00054         /// \bug GCC bug. does not enfoce constness
00055         SDLPixelFormat f = pixelFormat();
00056         sdl_surface.reset(SDL_ConvertSurface(*this, f, flags()), Deleter());
00057     }
00058 }

Here is the call graph for this function:

int Wt::SDLSurface::fill ( const SDLRect &  dst,
int  v
)

Definition at line 202 of file sdlsurface.cpp.

References detach().

00202                                               {
00203     SDLRect r = dst;
00204     detach();
00205     return SDL_FillRect(*this, r, v);
00206 }

Here is the call graph for this function:

int Wt::SDLSurface::fill ( int  v  )

Definition at line 197 of file sdlsurface.cpp.

References detach().

00197                           {
00198     detach();
00199     return SDL_FillRect(*this, 0, v);
00200 }

Here is the call graph for this function:

int Wt::SDLSurface::flags (  )  const [inline]

Definition at line 77 of file sdlsurface.h.

References sdl_surface.

Referenced by convertTo(), detach(), Wt::SDLDisplay::hasDoubleBuffer(), Wt::SDLDisplay::hasFrame(), Wt::SDLDisplay::hasOpenGL(), Wt::SDLDisplay::hasOpenGLBlit(), Wt::SDLDisplay::isAnyFormat(), Wt::SDLDisplay::isFullScreen(), Wt::SDLDisplay::isResizable(), Wt::SDLDisplay::load(), resize(), Wt::SDLDisplay::resize(), and setPalette().

00077                       {
00078         return sdl_surface->flags;
00079     }

bool Wt::SDLSurface::hasAlpha (  )  const [inline]

Definition at line 109 of file sdlsurface.h.

References sdl_surface.

Referenced by blitAlphaCopy(), and isTransparent().

00109                           {
00110         return sdl_surface->flags & SDL_SRCALPHA;
00111     }

bool Wt::SDLSurface::hasAsyncBlit (  )  const [inline]

Definition at line 89 of file sdlsurface.h.

References sdl_surface.

00089                               {
00090         return sdl_surface->flags & SDL_ASYNCBLIT;
00091     }

bool Wt::SDLSurface::hasHWAcceleration (  )  const [inline]

Definition at line 97 of file sdlsurface.h.

References sdl_surface.

00097                                    {
00098         return sdl_surface->flags & SDL_HWACCEL;
00099     }

bool Wt::SDLSurface::hasHWPalette (  )  const [inline]

Definition at line 93 of file sdlsurface.h.

References sdl_surface.

00093                               {
00094         return sdl_surface->flags & SDL_HWPALETTE;
00095     }

bool Wt::SDLSurface::hasRLEAccell (  )  const [inline]

Definition at line 105 of file sdlsurface.h.

References sdl_surface.

00105                               {
00106         return sdl_surface->flags & SDL_RLEACCEL;
00107     }

bool Wt::SDLSurface::hasTransparentColor (  )  const [inline]

Definition at line 101 of file sdlsurface.h.

References sdl_surface.

Referenced by blitAlphaCopy(), and isTransparent().

00101                                      {
00102         return sdl_surface->flags & SDL_SRCCOLORKEY;
00103     }

int Wt::SDLSurface::height (  )  const [inline]

Definition at line 142 of file sdlsurface.h.

References sdl_surface.

Referenced by blitAlphaCopy(), convertDepth(), numBytes(), Wt::SDLDisplay::resize(), scale_surface(), scaleWidth(), and SDLSurface().

00142                        {
00143         return sdl_surface->h;
00144     }

bool Wt::SDLSurface::isGrayscale (  )  const

Definition at line 161 of file sdlsurface.cpp.

References numColors(), Wt::SDLPixelFormat::palette(), and pixelFormat().

00161                                    {
00162     SDLPalette pal = pixelFormat().palette();
00163     if (pal) {
00164         int n = numColors();
00165         for (int i = 0; i < n; i++) {
00166             SDLColor c = pal[i];
00167             if (c.red() != c.green() || c.green() != c.blue())
00168                 return false;
00169         }
00170         return true;
00171     } else {}
00172
00173     return false;
00174 }

Here is the call graph for this function:

bool Wt::SDLSurface::isHWSurface (  )  const [inline]

Definition at line 85 of file sdlsurface.h.

References sdl_surface.

00085                              {
00086         return sdl_surface->flags & SDL_HWSURFACE;
00087     }

bool Wt::SDLSurface::isOpaque (  )  const [inline]

Definition at line 126 of file sdlsurface.h.

References isTransparent().

00126                           {
00127         return !isTransparent();
00128     }

Here is the call graph for this function:

bool Wt::SDLSurface::isPreallocated (  )  const [inline]

Definition at line 130 of file sdlsurface.h.

References sdl_surface.

00130                                 {
00131         return sdl_surface->flags & SDL_PREALLOC;
00132     }

bool Wt::SDLSurface::isSWSurface (  )  const [inline]

Definition at line 81 of file sdlsurface.h.

References sdl_surface.

00081                              {
00082         return sdl_surface->flags & SDL_SWSURFACE;
00083     }

bool Wt::SDLSurface::isTransparent (  )  const [inline]

There are 3 mechanisms of transparency

Definition at line 120 of file sdlsurface.h.

References alpha(), hasAlpha(), hasTransparentColor(), Wt::SDLColor::Opaque, and pixelFormat().

Referenced by isOpaque().

00120                                {
00121         return (hasTransparentColor() ||
00122                 (hasAlpha() &&
00123                  (pixelFormat().alphaMask() || alpha() != SDLColor::Opaque)));
00124     }

Here is the call graph for this function:

bool Wt::SDLSurface::load ( const void *  p,
size_t  size
)

load an image from mem

Definition at line 319 of file sdlsurface.cpp.

References sdl_surface.

00319                                                 {
00320     SDLSurface dst = IMG_Load_RW(SDL_RWFromConstMem(p, size), 1);
00321
00322     if (dst) {
00323         sdl_surface = dst;
00324         return true;
00325     }
00326     return false;
00327 }

bool Wt::SDLSurface::load ( const std::string &  fileName  )

load an image from a file

Definition at line 309 of file sdlsurface.cpp.

References sdl_surface.

00309                                                {
00310     SDLSurface dst = IMG_Load_RW(SDL_RWFromFile(filename.c_str(), "rb"), 1);
00311
00312     if (dst) {
00313         sdl_surface = dst;
00314         return true;
00315     }
00316     return false;
00317 }

int Wt::SDLSurface::lock (  )

Definition at line 100 of file sdlsurface.cpp.

References detach().

00100                      {
00101     detach()
00102     ;
00103     return SDL_LockSurface(*this);
00104 }

Here is the call graph for this function:

size_t Wt::SDLSurface::numBytes (  )  const [inline]

Definition at line 182 of file sdlsurface.h.

References bytesPerLine(), Wt::SDLPixelFormat::bytesPerPixel(), height(), pixelFormat(), and width().

00182                             {
00183         //return height() * pitch();
00184         return (height() - 1) * bytesPerLine() +
00185                width() * pixelFormat().bytesPerPixel();
00186     }

Here is the call graph for this function:

int Wt::SDLSurface::numColors (  )  const

Definition at line 140 of file sdlsurface.cpp.

References Wt::SDLPixelFormat::palette(), pixelFormat(), and Wt::SDLPalette::size().

Referenced by isGrayscale(), and setNumColors().

00140                                 {
00141     SDLPalette pal = pixelFormat().palette();
00142     return (pal) ? pal.size() :  0;
00143 }

Here is the call graph for this function:

void Wt::SDLSurface::onDepthChange (  )  [protected]

Definition at line 469 of file sdlsurface.cpp.

References depth(), read_pixel, readPixel16bpp(), readPixel24bpp(), readPixel32bpp(), readPixel8bpp(), write_pixel, writePixel16bpp(), writePixel24bpp(), writePixel32bpp(), and writePixel8bpp().

Referenced by SDLSurface().

00469                                {
00470     // don't crash on NULL surfaces
00471     if (!*this)
00472         return;
00473     switch (depth()) {
00474     case 0:
00475         read_pixel = 0;
00476         write_pixel = 0;
00477         assert(0);
00478         break;
00479     case 8:
00480         read_pixel = &SDLSurface::readPixel8bpp;
00481         write_pixel = &SDLSurface::writePixel8bpp;
00482         break;
00483     case 16:
00484         read_pixel = &SDLSurface::readPixel16bpp;
00485         write_pixel = &SDLSurface::writePixel16bpp;
00486         break;
00487     case 24:
00488         read_pixel = &SDLSurface::readPixel24bpp;
00489         write_pixel = &SDLSurface::writePixel24bpp;
00490         break;
00491     case 32:
00492         read_pixel = &SDLSurface::readPixel32bpp;
00493         write_pixel = &SDLSurface::writePixel32bpp;
00494         break;
00495     default:
00496         assert(0);
00497         break;
00498     }
00499 }

Here is the call graph for this function:

Wt::SDLSurface::operator const Ptr (  )  const [inline, private]

Definition at line 350 of file sdlsurface.h.

References sdl_surface.

00350                                 {
00351         return sdl_surface;
00352     }

Wt::SDLSurface::operator const SDL_Surface * (  )  const [inline]

Definition at line 67 of file sdlsurface.h.

References sdl_surface.

00067                                          {
00068         return sdl_surface.get();
00069     }

Wt::SDLSurface::operator Ptr (  )  [inline, private]

Definition at line 354 of file sdlsurface.h.

References sdl_surface.

00354                      {
00355         return sdl_surface;
00356     }

Wt::SDLSurface::operator SDL_Surface * (  )  [inline]

Definition at line 71 of file sdlsurface.h.

References sdl_surface.

00071                               {
00072         return sdl_surface.get();
00073     }

int Wt::SDLSurface::pixel ( int  x,
int  y
) const [inline]

Definition at line 286 of file sdlsurface.h.

References pixel(), and pixelOffset().

00286                                   {
00287         return pixel(pixelOffset(x, y));
00288     }

Here is the call graph for this function:

int Wt::SDLSurface::pixel ( int  pixel_offset  )  const [inline]

Definition at line 278 of file sdlsurface.h.

References read_pixel.

Referenced by pixel(), pixelColor(), and readPixel24bpp().

00278                                       {
00279         return (this->*read_pixel)(pixel_offset);
00280     }

void* Wt::SDLSurface::pixelAddress ( int  x,
int  y
) const [inline]

Definition at line 174 of file sdlsurface.h.

References pixelOffset(), and pixels().

00174                                            {
00175         return (Uint8 *) pixels() + pixelOffset(x, y);
00176     }

Here is the call graph for this function:

void* Wt::SDLSurface::pixelAddress ( int  pixel_offset  )  const [inline]

Definition at line 170 of file sdlsurface.h.

References pixels().

Referenced by readPixel16bpp(), readPixel24bpp(), readPixel32bpp(), readPixel8bpp(), scanLine(), writePixel16bpp(), writePixel24bpp(), writePixel32bpp(), and writePixel8bpp().

00170                                                {
00171         return (Uint8 *) pixels() + pixel_offset;
00172     }

Here is the call graph for this function:

SDLColor Wt::SDLSurface::pixelColor ( int  x,
int  y
) const [inline]

Definition at line 290 of file sdlsurface.h.

References Wt::SDLPixelFormat::mapToColor(), pixel(), and pixelFormat().

00290                                             {
00291         return pixelFormat().mapToColor((pixel(x, y)));
00292     }

Here is the call graph for this function:

SDLColor Wt::SDLSurface::pixelColor ( int  pixel_offset  )  const [inline]

Definition at line 282 of file sdlsurface.h.

References Wt::SDLPixelFormat::mapToColor(), pixel(), and pixelFormat().

00282                                                 {
00283         return pixelFormat().mapToColor((pixel(pixel_offset)));
00284     }

Here is the call graph for this function:

const SDLPixelFormat Wt::SDLSurface::pixelFormat (  )  const [inline]

Definition at line 134 of file sdlsurface.h.

References sdl_surface.

Referenced by alpha(), blitAlphaCopy(), color(), convertTo(), depth(), detach(), isGrayscale(), isTransparent(), numBytes(), numColors(), pixelColor(), pixelOffset(), readPixel24bpp(), resize(), Wt::SDLDisplay::resize(), setNumColors(), setPixelColor(), setTransparentColor(), transparentColor(), and writePixel24bpp().

00134                                              {
00135         return sdl_surface->format;
00136     }

int Wt::SDLSurface::pixelOffset ( int  x,
int  y
) const [inline]

Definition at line 166 of file sdlsurface.h.

References bytesPerLine(), Wt::SDLPixelFormat::bytesPerPixel(), and pixelFormat().

Referenced by pixel(), pixelAddress(), and setPixel().

00166                                         {
00167         return y * bytesPerLine() + x * pixelFormat().bytesPerPixel();
00168     }

Here is the call graph for this function:

void* Wt::SDLSurface::pixels (  )  [inline]

Definition at line 158 of file sdlsurface.h.

References sdl_surface.

00158                    {
00159         return sdl_surface->pixels;
00160     }

const void* Wt::SDLSurface::pixels (  )  const [inline]

Definition at line 150 of file sdlsurface.h.

References sdl_surface.

Referenced by bits(), and pixelAddress().

00150                                {
00151         return sdl_surface->pixels;
00152     }

int Wt::SDLSurface::readPixel16bpp ( int  pixel_offset  )  const [protected]

Definition at line 424 of file sdlsurface.cpp.

References pixelAddress().

Referenced by onDepthChange().

00424                                                      {
00425     return * (Uint16 *) pixelAddress(pixel_offset);
00426 }

Here is the call graph for this function:

int Wt::SDLSurface::readPixel24bpp ( int  pixel_offset  )  const [protected]

Definition at line 432 of file sdlsurface.cpp.

References Wt::SDLPixelFormat::blueShift(), Wt::SDLPixelFormat::greenShift(), pixel(), pixelAddress(), pixelFormat(), and Wt::SDLPixelFormat::redShift().

Referenced by onDepthChange().

00432                                                      {
00433     Uint8* screen_loc = (Uint8 *) pixelAddress(pixel_offset);
00434     const SDLPixelFormat f = pixelFormat();
00435     Uint32 pixel = 0;
00436     int shift;
00437
00438     // I´m not sure on this, Karsten 01/1999
00439     shift = f.redShift();
00440     pixel = *(screen_loc + shift / 8) << shift;
00441     shift = f.greenShift();
00442     pixel |= *(screen_loc + shift / 8) << shift;
00443     shift = f.blueShift();
00444     pixel |= *(screen_loc + shift / 8) << shift;
00445     return pixel;
00446 }

Here is the call graph for this function:

int Wt::SDLSurface::readPixel32bpp ( int  pixel_offset  )  const [protected]

Definition at line 461 of file sdlsurface.cpp.

References pixelAddress().

Referenced by onDepthChange().

00461                                                      {
00462     return * (Uint32 *) pixelAddress(pixel_offset);
00463 }

Here is the call graph for this function:

int Wt::SDLSurface::readPixel8bpp ( int  pixel_offset  )  const [protected]

Definition at line 416 of file sdlsurface.cpp.

References pixelAddress().

Referenced by onDepthChange().

00416                                                     {
00417     return * (Uint8 *) pixelAddress(pixel_offset);
00418 }

Here is the call graph for this function:

void Wt::SDLSurface::resize ( int  x,
int  y
)

Reimplemented in Wt::SDLDisplay.

Definition at line 364 of file sdlsurface.cpp.

References Wt::SDLPixelFormat::alphaMask(), Wt::SDLPixelFormat::bitsPerPixel(), Wt::SDLPixelFormat::blueMask(), flags(), Wt::SDLPixelFormat::greenMask(), pixelFormat(), Wt::SDLPixelFormat::redMask(), and sdl_surface.

00364                                     {
00365     SDLPixelFormat f = pixelFormat();
00366     SDLSurface dst = SDL_CreateRGBSurface(flags(), x, y, f.bitsPerPixel(),
00367                                           f.redMask(), f.greenMask(),
00368                                           f.blueMask(), f.alphaMask());
00369     if (dst)
00370         sdl_surface = dst;
00371 }

Here is the call graph for this function:

SDLSurface Wt::SDLSurface::scale ( int  w,
int  h,
ScaleMode  mode = ScaleFree
) const

Definition at line 519 of file sdlsurface.cpp.

References scale_surface().

00519                                                                {
00520     return scale_surface(w, h, false, mode);
00521 }

Here is the call graph for this function:

SDLSurface Wt::SDLSurface::scale_surface ( int  w,
int  h,
bool  smooth,
ScaleMode  mode
) const [protected]

Definition at line 501 of file sdlsurface.cpp.

References Wt::deconst(), height(), ScaleFree, ScaleMax, ScaleMin, SDLSurface(), and width().

Referenced by scale(), scaleHeight(), scaleWidth(), and smoothScale().

00502                                                                         {
00503     if (mode != ScaleFree && (width() * h != height() * w)) {
00504         double r1 = static_cast<double>(width()) /
00505                     static_cast<double>(height());
00506         double r2 = static_cast<double>(w) /
00507                     static_cast<double>(h);
00508         if ( (mode == ScaleMin & (r2 > r1)) || (mode == ScaleMax & (r2 < r1)) )
00509             w = static_cast<int>(h * r1);
00510         if ( (mode == ScaleMin & (r2 < r1)) || (mode == ScaleMax & (r2 > r1)) )
00511             h = static_cast<int>(w / r1);
00512     }
00513     double zx =  static_cast<double>(w) / static_cast<double>(width());
00514     double zy =  static_cast<double>(h) / static_cast<double>(height());
00515
00516     return SDLSurface(zoomSurface(deconst(*this), zx, zy, smooth));
00517 }

Here is the call graph for this function:

SDLSurface Wt::SDLSurface::scaleHeight ( int  h  )  const

Definition at line 531 of file sdlsurface.cpp.

References scale_surface(), ScaleFree, and width().

00531                                               {
00532     return scale_surface(width(), h, false, ScaleFree);
00533 }

Here is the call graph for this function:

SDLSurface Wt::SDLSurface::scaleWidth ( int  w  )  const

Definition at line 527 of file sdlsurface.cpp.

References height(), scale_surface(), and ScaleFree.

00527                                              {
00528     return scale_surface(w, height(), false, ScaleFree);
00529 }

Here is the call graph for this function:

void* Wt::SDLSurface::scanLine ( int  y  )  [inline]

Definition at line 178 of file sdlsurface.h.

References bytesPerLine(), and pixelAddress().

00178                           {
00179         return pixelAddress(y * bytesPerLine());
00180     }

Here is the call graph for this function:

int Wt::SDLSurface::serialNumber (  )  const [inline]

Definition at line 188 of file sdlsurface.h.

00188                              {
00189         return reinterpret_cast<int>(
00190                    static_cast<const SDL_Surface *>(*this));
00191     }

void Wt::SDLSurface::setAlpha ( int  alpha = SDLColor::Transparent  )

Definition at line 187 of file sdlsurface.cpp.

References alpha(), and detach().

00187                                    {
00188     detach();
00189     SDL_SetAlpha(*this, SDL_SRCALPHA, alpha);
00190 }

Here is the call graph for this function:

SDLRect Wt::SDLSurface::setClipRect ( const SDLRect &  rect  )

Definition at line 119 of file sdlsurface.cpp.

References detach().

00119                                                    {
00120     SDLRect r = rect;
00121     detach();
00122     SDL_SetClipRect(*this, r);
00123     return r;
00124 }

Here is the call graph for this function:

void Wt::SDLSurface::setColor ( int  i,
const SDLColor &  c
)

Definition at line 135 of file sdlsurface.cpp.

References setPalette().

00135                                                   {
00136     std::vector<SDLColor> ca(1, c);
00137     setPalette(ca, i);
00138 }

Here is the call graph for this function:

void Wt::SDLSurface::setNumColors ( int  ncolors  )

Definition at line 145 of file sdlsurface.cpp.

References numColors(), Wt::SDLPixelFormat::palette(), pixelFormat(), and setPalette().

00145                                          {
00146     int old = numColors();
00147
00148     if (ncolors < old) {
00149         SDLPalette pal = pixelFormat().palette();
00150         std::vector<SDLColor> ca;
00151         ca.reserve(ncolors);
00152         for (int i = 0; i < ncolors; i++)
00153             ca[i] = pal[i];
00154         setPalette(ca, 0);
00155     } else if (ncolors > old) {
00156         std::vector<SDLColor> ca(ncolors - old, SDLColor());
00157         setPalette(ca, old);
00158     }
00159 }

Here is the call graph for this function:

void Wt::SDLSurface::setPalette ( const std::vector< SDLColor > &  ca,
int  offset,
int  flags = SDLPalette::Logical|SDLPalette::Physical
)

Definition at line 126 of file sdlsurface.cpp.

References detach(), and flags().

Referenced by setColor(), and setNumColors().

00127                                                    {
00128     //SDL breakage
00129     SDL_Color *colors = const_cast<SDL_Color *>(
00130                             reinterpret_cast<const SDL_Color *>(&ca[0]));
00131     detach();
00132     SDL_SetPalette(*this, flags, colors, offset, ca.size());
00133 }

Here is the call graph for this function:

void Wt::SDLSurface::setPixel ( int  x,
int  y,
int  pixel_value
) [inline]

Definition at line 302 of file sdlsurface.h.

References pixelOffset(), and setPixel().

00302                                                  {
00303         setPixel(pixelOffset(x, y), pixel_value);
00304     }

Here is the call graph for this function:

void Wt::SDLSurface::setPixel ( int  pixel_offset,
int  pixel_value
) [inline]

Definition at line 294 of file sdlsurface.h.

References write_pixel.

Referenced by setPixel(), and setPixelColor().

00294                                                      {
00295         (this->*write_pixel)(pixel_offset, pixel_value);
00296     }

void Wt::SDLSurface::setPixelColor ( int  x,
int  y,
const SDLColor &  color
) [inline]

Definition at line 306 of file sdlsurface.h.

References color(), pixelFormat(), and setPixel().

00306                                                             {
00307         setPixel(x, y, pixelFormat().mapToPixelValue(color));
00308     }

Here is the call graph for this function:

void Wt::SDLSurface::setPixelColor ( int  pixel_offset,
const SDLColor &  color
) [inline]

Definition at line 298 of file sdlsurface.h.

References color(), pixelFormat(), and setPixel().

00298                                                                 {
00299         setPixel(pixel_offset, pixelFormat().mapToPixelValue(color));
00300     }

Here is the call graph for this function:

void Wt::SDLSurface::setTransparentColor ( const SDLColor &  color = SDLColor()  )

Definition at line 176 of file sdlsurface.cpp.

References color(), detach(), and pixelFormat().

00176                                                           {
00177     detach();
00178     SDL_SetColorKey(*this, SDL_SRCCOLORKEY | SDL_RLEACCEL,
00179                     pixelFormat().mapToPixelValue(color));
00180 }

Here is the call graph for this function:

SDLSurface Wt::SDLSurface::smoothScale ( int  w,
int  h,
ScaleMode  mode = ScaleFree
) const

Definition at line 523 of file sdlsurface.cpp.

References scale_surface().

00523                                                                      {
00524     return scale_surface(w, h, true, mode);
00525 }

Here is the call graph for this function:

static int Wt::SDLSurface::systemBitOrder (  )  [inline, static]

Determines the bit order of the display hardware.

Definition at line 318 of file sdlsurface.h.

00318                                 {
00319         return SDL_BYTEORDER;
00320     }

static int Wt::SDLSurface::systemByteOrder (  )  [inline, static]

Determines the byte order of the display hardware.

Definition at line 313 of file sdlsurface.h.

00313                                  {
00314         return SDL_BYTEORDER;
00315     }

SDLColor Wt::SDLSurface::transparentColor (  )  const [inline]

Definition at line 218 of file sdlsurface.h.

References pixelFormat(), and Wt::SDLPixelFormat::transparentColor().

00218                                       {
00219         return pixelFormat().transparentColor();
00220     }

Here is the call graph for this function:

int Wt::SDLSurface::unlock (  )

Definition at line 106 of file sdlsurface.cpp.

References detach().

00106                        {
00107     detach();
00108     SDL_UnlockSurface(*this);
00109     return 0;
00110 }

Here is the call graph for this function:

int Wt::SDLSurface::width (  )  const [inline]

Definition at line 138 of file sdlsurface.h.

References sdl_surface.

Referenced by blitAlphaCopy(), convertDepth(), numBytes(), Wt::SDLDisplay::resize(), scale_surface(), scaleHeight(), and SDLSurface().

00138                       {
00139         return sdl_surface->w;
00140     }

void Wt::SDLSurface::writePixel16bpp ( int  pixel_offset,
int  pixel_value
) [protected]

Definition at line 428 of file sdlsurface.cpp.

References pixelAddress().

Referenced by onDepthChange().

00428                                                                   {
00429     * (Uint16 *) pixelAddress(pixel_offset) = pixel_value;
00430 }

Here is the call graph for this function:

void Wt::SDLSurface::writePixel24bpp ( int  pixel_offset,
int  pixel_value
) [protected]

Definition at line 448 of file sdlsurface.cpp.

References Wt::SDLPixelFormat::blueShift(), Wt::SDLPixelFormat::greenShift(), pixelAddress(), pixelFormat(), and Wt::SDLPixelFormat::redShift().

Referenced by onDepthChange().

00448                                                                   {
00449     Uint8* screen_loc = (Uint8 *) pixelAddress(pixel_offset);
00450     int shift;
00451     const SDLPixelFormat f = pixelFormat();
00452
00453     shift = f.redShift();
00454     *(screen_loc + shift / 8) =  pixel_value >> shift;
00455     shift = f.greenShift();
00456     *(screen_loc + shift / 8) =  pixel_value >> shift;
00457     shift = f.blueShift();
00458     *(screen_loc + shift / 8) =  pixel_value >> shift;
00459 }

Here is the call graph for this function:

void Wt::SDLSurface::writePixel32bpp ( int  pixel_offset,
int  pixel_value
) [protected]

Definition at line 465 of file sdlsurface.cpp.

References pixelAddress().

Referenced by onDepthChange().

00465                                                                   {
00466     * (Uint32 *) pixelAddress(pixel_offset) = pixel_value;
00467 }

Here is the call graph for this function:

void Wt::SDLSurface::writePixel8bpp ( int  pixel_offset,
int  pixel_value
) [protected]

Definition at line 420 of file sdlsurface.cpp.

References pixelAddress().

Referenced by onDepthChange().

00420                                                                  {
00421     * (Uint8 *) pixelAddress(pixel_offset) = pixel_value;
00422 }

Here is the call graph for this function:

Member Data Documentation

const FlagMap Wt::SDLSurface::flagMap [static, protected]

Initial value:

 boost::assign::map_list_of
                                    (W::SWSurface, SDL_SWSURFACE)
                                    (W::HWSurface, SDL_HWSURFACE)
                                    (W::AsyncBlit, SDL_ASYNCBLIT)
                                    (W::HWPalette, SDL_HWPALETTE)
                                    (W::HWAccel, SDL_HWACCEL)
                                    (W::AnyFormat, SDL_ANYFORMAT)
                                    (W::DoubleBuffer, SDL_DOUBLEBUF)
                                    (W::FullScreen, SDL_FULLSCREEN)
                                    (W::OpenGL, SDL_OPENGL)
                                    (W::OpenGLBlit, SDL_OPENGLBLIT)
                                    (W::Resizable, SDL_RESIZABLE)
                                    (W::NoFrame, SDL_NOFRAME)

Definition at line 336 of file sdlsurface.h.

Referenced by Wt::SDLDisplay::load().

readPixelFunction Wt::SDLSurface::read_pixel [private]

Definition at line 361 of file sdlsurface.h.

Referenced by onDepthChange(), and pixel().

Ptr Wt::SDLSurface::sdl_surface [private]

Definition at line 347 of file sdlsurface.h.

Referenced by bytesPerLine(), clipRect(), convertDepth(), convertTo(), convertToDisplay(), detach(), flags(), hasAlpha(), hasAsyncBlit(), hasHWAcceleration(), hasHWPalette(), hasRLEAccell(), hasTransparentColor(), height(), isHWSurface(), isPreallocated(), isSWSurface(), load(), operator const Ptr(), operator const SDL_Surface *(), operator Ptr(), operator SDL_Surface *(), pixelFormat(), pixels(), resize(), and width().

writePixelFunction Wt::SDLSurface::write_pixel [private]

Definition at line 362 of file sdlsurface.h.

Referenced by onDepthChange(), and setPixel().

The documentation for this class was generated from the following files:

Generated Fri Jul 28 19:32:56 2006.
Copyright © 1998-2003 by the respective authors.

This document is licensed under the terms of the GNU Free Documentation License and may be freely distributed under the conditions given by this license.
