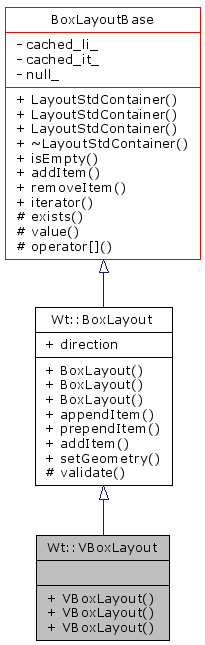

wt: Wt::VBoxLayout Class Reference

template<typename Container>

typedef Container::value_type Wt::LayoutStdContainer< Container >::Compound [inherited]

Definition at line 463 of file layout.h.

typedef std::list<Object*> Wt::Object::List [inherited]

Definition at line 47 of file object.h.

enum Wt::BoxLayout::Direction [inherited]

Enumerator:

LeftToRight
RightToLeft
TopToBottom
BottomToTop
Down
Up

Definition at line 573 of file layout.h.

00573                   {
00574         LeftToRight,
00575         RightToLeft,
00576         TopToBottom,
00577         BottomToTop,
00578         Down = TopToBottom,
00579         Up = BottomToTop
00580     } Direction;

Wt::VBoxLayout::VBoxLayout	(	Widget *	parent,
		int	margin = `0`,
		int	spacing = `-1`,
		const std::string &	name = `"VBoxLayout::anon"`
	)			`[inline]`

Definition at line 635 of file layout.h.

00636                                                          :
00637     BoxLayout(parent, Down, margin, spacing, name) {}

Wt::VBoxLayout::VBoxLayout	(	Layout *	parent_layout,
		int	margin = `0`,
		int	spacing = `-1`,
		const std::string &	name = `"VBoxLayout::anon"`
	)			`[inline]`

Definition at line 639 of file layout.h.

00640                                                          :
00641     BoxLayout(parent_layout, Down, margin, spacing, name) {}

Wt::VBoxLayout::VBoxLayout	(	int	spacing = `-1`,
		const std::string &	name = `"VBoxLayout::anon"`
	)			`[inline]`

Definition at line 643 of file layout.h.

00643                                                                            :
00644     BoxLayout(Down, spacing, name) {}

void Wt::BoxLayout::addItem ( LayoutItem * li ) [virtual, inherited]

Reimplemented from Wt::LayoutStdContainer< Container >.

Definition at line 441 of file layout.cpp.

References Wt::BoxLayout::appendItem(), Wt::BoxLayout::BottomToTop, Wt::BoxLayout::direction, Wt::BoxLayout::LeftToRight, Wt::BoxLayout::prependItem(), Wt::BoxLayout::RightToLeft, and Wt::BoxLayout::TopToBottom.

00441                                       {
00442     switch(direction) {
00443     case LeftToRight:
00444     case TopToBottom:
00445         appendItem(li);
00446         break;
00447     case RightToLeft:
00448     case BottomToTop:
00449         prependItem(li);
00450         break;
00451     default:
00452         break;
00453     }
00454 }

Here is the call graph for this function:

void Wt::Layout::adjustMaximumSize ( int margin ) [protected, inherited]

Definition at line 50 of file layout.cpp.

References Wt::Layout::margin, Wt::LayoutItem::maximumSize(), and Wt::LayoutItem::setMaximumSize().

Referenced by Wt::Layout::init().

00050                                          {
00051     setMaximumSize(maximumSize() >> margin);
00052 }

Here is the call graph for this function:

void Wt::BoxLayout::appendItem ( LayoutItem * li ) [virtual, inherited]

Definition at line 431 of file layout.cpp.

References Wt::Layout::addItem().

Referenced by Wt::BoxLayout::addItem().

00431                                          {
00432     Layout::addItem(li);
00433     push_back(li);
00434 }

Here is the call graph for this function:

virtual void Wt::Object::childEvent ( ChildEvent * ) [inline, protected, virtual, inherited]

event handling specialization

Reimplemented in Wt::Window::Frame.

Definition at line 146 of file object.h.

Referenced by Wt::Object::event().

00146 {}

List& Wt::Object::children ( ) [inline, inherited]

Definition at line 61 of file object.h.

References Wt::Object::children_.

00061                      {
00062         return children_;
00063     }

const List& Wt::Object::children ( ) const [inline, inherited]

Definition at line 57 of file object.h.

References Wt::Object::children_.

Referenced by Wt::RootWindow::blit_region_ex(), Wt::Widget::childAt(), Wt::Object::deleteAllChildren(), Wt::Object::deleteFirstChild(), Wt::Object::deleteLastChild(), Wt::Widget::focusNextPrevChild(), Wt::Widget::fontChange(), Wt::Widget::lower(), Wt::postLayoutHintEventRecursively(), and Wt::Widget::raise().

00057                                  {
00058         return children_;
00059     }

virtual void Wt::Object::customEvent ( CustomEvent * ) [inline, protected, virtual, inherited]

Definition at line 147 of file object.h.

Referenced by Wt::Object::event().

00147 {}

template<typename T>

void Wt::Object::deleteAllChildren ( ) [inline, inherited]

Definition at line 106 of file object.h.

References Wt::Object::children().

00106                              {
00107         List::iterator it(children().begin());
00108         List::iterator end(children().end());
00109
00110         while (it != end) {
00111             T *t = dynamic_cast<T *>(*it);
00112             // before iteration invalidation
00113             ++it;
00114             // this will invalidate the iterator
00115             if (t) {
00116                 delete t;
00117             }
00118         }
00119     }

Here is the call graph for this function:

template<typename T>

void Wt::Object::deleteFirstChild ( ) [inline, inherited]

Definition at line 72 of file object.h.

References Wt::Object::children().

00072                             {
00073         List::iterator it(children().begin());
00074         List::iterator end(children().end());
00075
00076         while (it != end) {
00077             T *t = dynamic_cast<T *>(*it);
00078             // before iteration invalidation
00079             ++it;
00080             // this will invalidate the iterator
00081             if (t) {
00082                 delete t;
00083                 break;
00084             }
00085         }
00086     }

Here is the call graph for this function:

template<typename T>

void Wt::Object::deleteLastChild ( ) [inline, inherited]

Definition at line 89 of file object.h.

References Wt::Object::children().

00089                            {
00090         List::reverse_iterator it(children().rbegin());
00091         List::reverse_iterator end(children().rend());
00092
00093         while (it != end) {
00094             T *t = dynamic_cast<T *>(*it);
00095             // before iteration invalidation
00096             ++it;
00097             // this will invalidate the iterator
00098             if (t) {
00099                 delete t;
00100                 break;
00101             }
00102         }
00103     }

Here is the call graph for this function:

void Wt::Layout::enforce ( ) [protected, inherited]

enforces the layout in the mainWidget() children and layouts

it can be only called if there is a main widget

Definition at line 336 of file layout.cpp.

References Wt::LayoutItem::geometry(), Wt::LayoutItem::invalidateRecursively(), Wt::Layout::mainWidget(), Wt::Layout::minimumSize(), Wt::Layout::setGeometry(), Wt::Layout::sizeHint(), and Wt::Widget::updateGeometry().

Referenced by Wt::Layout::eventFilter().

00336                      {
00337     const Rect rect = geometry();
00338     const Size min_size = minimumSize();
00339     const Size hint_size = sizeHint();
00340
00341     // top downn invalidate across one widget only
00342     invalidateRecursively();
00343     // calls the virtual reimplementations
00344     setGeometry(rect);
00345     // this will notify parent of mainWidget() if exists
00346     if (rect != geometry() ||
00347             hint_size != sizeHint() ||
00348             min_size != minimumSize()) {
00349         mainWidget()->updateGeometry();
00350     }
00351 }

Here is the call graph for this function:

bool Wt::Object::event ( Event * e ) [virtual, inherited]

event handling

Reimplemented in Wt::Application, and Wt::Widget.

Definition at line 173 of file object.cpp.

References Wt::Object::childEvent(), Wt::Event::ChildInserted, Wt::Event::ChildRemoved, Wt::Object::customEvent(), Wt::Object::filterEvent(), Wt::SDLTimer::scheduleNext(), Wt::Object::timer(), Wt::Event::Timer, Wt::Object::timerEvent(), Wt::Event::type(), and Wt::Event::User.

Referenced by Wt::Widget::event(), Wt::Application::notify(), and Wt::Application::postEvent().

00173                            {
00174     bool handled = true;
00175
00176     if (filterEvent(e))
00177         return true;
00178
00179     switch (e->type()) {
00180     case Event::Timer: {
00181             TimerEvent *te = static_cast<TimerEvent *>(e);
00182             int id = te->timerid();
00183             if (timer(id)) {
00184                 timerEvent(te);
00185             }
00186             // if it is signle shot it may have been killed
00187             // during eventhandling
00188             SDLTimer *t = timer(id);
00189             if (t)
00190                 t->scheduleNext();
00191         }
00192         break;
00193     case Event::ChildInserted:
00194     case Event::ChildRemoved:
00195         childEvent(static_cast<ChildEvent *>(e));
00196         break;
00197     default:
00198         if (e->type() >= Event::User) {
00199             customEvent(static_cast<CustomEvent *>(e));
00200         } else {
00201             handled = false;
00202         }
00203         break;
00204     }
00205
00206     return handled;
00207 }

Here is the call graph for this function:

bool Wt::Layout::eventFilter	(	Object *	obj,
		Event *	e
	)			`[virtual, inherited]`

we get events from the mainWidget only if exists. The type of events are:

ChildEvent (Inserted or ChildRemoved)
ResizeEvent
LayoutHintEvent

The following uses cases has to be covered:

case 1: A widget w deep in the hierarchy changes something (sizeHint, minimumSize, sizePolicy etc..)
case 2: insert/remove layout item
case 3: add remove child in a widget with a tll
case 4: parent widget gets resized

    // we monitor the managed widgets
    // top level layout grabs it (if tll exists)
    Layout::eventFilter() {
        // on layoutHint event calls
        Layout::enforce();

        // on resize calls
        Layout::setGeometry(r);

        // on child insert / remove in mainWidget
        // this implies enforce called in the next event processing
            Application::postEvent(mainWidget(), new LayoutHintEvent());
    }

Note:

if there is no top level layout then layout is not automatically enforced
use cases 1,2,3,4 are working if we assume the presence of a tll
we do a lot of invalidateRecursively()
widgets can only have one layout child (setLayout(), layout()) and no more
a widget cannot tell if it is managed or not
Layout::setGeometry() reimplementations must call base class implementation

Reimplemented from Wt::Object.

Definition at line 228 of file layout.cpp.

References Wt::Layout::addItem(), Wt::Layout::autoAdd, Wt::ChildEvent::child(), Wt::Event::ChildInserted, Wt::Event::ChildRemoved, Wt::Layout::enforce(), Wt::Object::eventFilter(), Wt::LayoutItem::geometry(), Wt::Event::LayoutHint, Wt::Event::Move, Wt::Layout::removeItem(), Wt::Event::Resize, Wt::LayoutItem::setGeometry(), Wt::Layout::setGeometry(), trace, and Wt::Event::type().

00228                                               {
00229     Widget *w;
00230
00231     switch (e->type()) {
00232     case Event::ChildInserted:
00233         if (autoAdd) {
00234             ChildEvent *ce = static_cast<ChildEvent *>(e);
00235             Object *child = ce->child();
00236             // It is not possible to add other widgets layout. They will
00237             // be toplevels and that means we are dead
00238             LayoutItem *li = dynamic_cast<LayoutItem *>(child);
00239
00240             //assert(li == this);
00241             // we can only insert Widget items as childs of our mainWidget
00242             const bool is_window_frame = dynamic_cast<Window::Frame *>(child);
00243             const Window *wnd = dynamic_cast<Window *>(child);
00244             const bool is_frameless_window = wnd &&
00245                                              !dynamic_cast<Window::Frame *>(wnd->parent());
00246             if (li != this && !is_window_frame && !is_frameless_window
00247                     && (w = dynamic_cast<Widget *>(child))) {
00248                 trace("layout") << "Inserting to layout "
00249                 << this << " child " << w << std::endl;
00250                 addItem(w);
00251             }
00252         }
00253         break;
00254     case Event::ChildRemoved: {
00255             // we have to handle the reparenting case.
00256             // delete is handled gracefully. Problem is we don't
00257             // know if it is deleted. But if it is deleted it will
00258             // have been already removed. So we use static_cast to
00259             // go up and down the inheritance tree. It is also possible
00260             // that we don't manage this child.
00261             ChildEvent *ce = static_cast<ChildEvent *>(e);
00262             w = static_cast<Widget *>(ce->child());
00263             LayoutItem *li = static_cast<LayoutItem *>(w);
00264             // if item is already dead (removed) removeItem will do nothing
00265             removeItem(li);
00266         }
00267         break;
00268     case Event::Resize:
00269         w = dynamic_cast<Widget *>(obj);
00270         trace("layout") << "Widget Resize: " << w
00271         << " caused layout resize" << std::endl;
00272         setGeometry(w->geometry());
00273         break;
00274     case Event::Move:
00275         w = dynamic_cast<Widget *>(obj);
00276         trace("layout") << "Widget move: " << w
00277         << " caused layout move" << std::endl;
00278         LayoutItem::setGeometry(w->geometry());
00279         break;
00280     case Event::LayoutHint:
00281         enforce();
00282         break;
00283     default:
00284         break;
00285     }
00286
00287     return Object::eventFilter(obj, e);
00288 }

Here is the call graph for this function:

template<typename Container>

virtual bool Wt::LayoutStdContainer< Container >::exists ( const LayoutItem * li ) const [inline, protected, virtual, inherited]

Implements Wt::Layout.

Definition at line 514 of file layout.h.

Referenced by Wt::GridLayout::addItem(), and Wt::Box::setStretchFactor().

00514                                                     {
00515         typename Container::const_iterator end = Container::end();
00516         typename Container::const_iterator p = find(Container::begin(), end, li);
00517         return (p != end);
00518     }

virtual SizePolicy::ExpandData Wt::LayoutItem::expanding ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 170 of file layout.h.

References Wt::SizePolicy::expandData, and Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::expanding().

00170                                                    {
00171         return size_policy_.expandData;
00172     }

bool Wt::Layout::expandingPrimally ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 410 of file layout.cpp.

References Wt::SizePolicy::expandingHorizontally(), Wt::SizePolicy::expandingVertically(), and Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00410                                                          {
00411     return (width_as_primary_length) ?
00412            sp.expandingHorizontally() : sp.expandingVertically();
00413 }

Here is the call graph for this function:

bool Wt::Object::filterEvent ( Event * ) [protected, inherited]

Definition at line 164 of file object.cpp.

References Wt::Object::eventFilters_.

Referenced by Wt::Object::event(), and Wt::Application::event().

00164                                  {
00165     for (List::iterator filter(eventFilters_.begin()),
00166             end(eventFilters_.end()); filter != end; ++filter) {
00167         if ((*filter)->eventFilter(this, e))
00168             return true;
00169     }
00170     return false;
00171 }

virtual const Rect& Wt::LayoutItem::geometry ( ) const [inline, virtual, inherited]

return the widget's geometry relative to its parent

Definition at line 175 of file layout.h.

References Wt::LayoutItem::geometry_rect_.

Referenced by Wt::Label::drawContents(), Wt::Layout::enforce(), Wt::Layout::eventFilter(), Wt::Window::frameGeometry(), Wt::Widget::height(), Wt::Widget::mapFromGlobal(), Wt::Widget::mapFromParent(), Wt::Widget::mapToGlobal(), Wt::Widget::mapToParent(), Wt::Window::Frame::mousePressEvent(), Wt::Widget::move(), Wt::Widget::resize(), Wt::Widget::setGeometry(), Wt::BoxLayout::setGeometry(), Wt::GridLayout::setGeometry(), Wt::CascadeLayout::setGeometry(), Wt::Widget::size(), Wt::Widget::width(), and Wt::Widget::~Widget().

00175                                          {
00176         return geometry_rect_;
00177     }

Point Wt::Layout::getPoint	(	int	primary_offset,
		int	secondary_offset
	)			const `[protected, inherited]`

Definition at line 376 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00376                                                                      {
00377     return (width_as_primary_length) ?
00378            Point(primary_offset, secondary_offset) :
00379            Point(secondary_offset, primary_offset);
00380 }

Rect Wt::Layout::getRect	(	int	primary_offset,
		int	secondary_offset,
		int	primary_size,
		int	secondary_size
	)			const `[protected, inherited]`

Definition at line 388 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

00389                                                                  {
00390     return (width_as_primary_length) ?
00391            Rect(primary_offset, secondary_offset, primary_size, secondary_size) :
00392            Rect(secondary_offset, primary_offset, secondary_size, primary_size);
00393 }

Size Wt::Layout::getSize	(	int	primary,
		int	secondary
	)			const `[protected, inherited]`

Definition at line 382 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00382                                                      {
00383     return (width_as_primary_length) ?
00384            Size(primary, secondary) :
00385            Size(secondary, primary);
00386 }

virtual bool Wt::LayoutItem::hasHeightForWidth ( ) const [inline, virtual, inherited]

Definition at line 192 of file layout.h.

00192                                            {
00193         return false;
00194     }

virtual int Wt::LayoutItem::heightForWidth ( int ) const [inline, virtual, inherited]

Definition at line 195 of file layout.h.

00195                                           {
00196         return -1;
00197     }

void Wt::Object::insertChild ( Object * obj ) [virtual, inherited]

Definition at line 81 of file object.cpp.

References Wt::Event::ChildInserted, Wt::Object::children_, Wt::Object::parent_, and Wt::Application::postEvent().

Referenced by Wt::Object::Object(), and Wt::Object::reparent().

00081                                     {
00082     children_.push_back(obj);
00083     obj->parent_ = this;
00084     Event *child_event = new ChildEvent(Event::ChildInserted, obj);
00085     Application::postEvent(this, child_event);
00086 }

Here is the call graph for this function:

void Wt::Object::installEventFilter ( const Object * filterObj ) [inherited]

Definition at line 124 of file object.cpp.

References Wt::Object::destroyed, Wt::Object::eventFilters_, and Wt::Object::removeEventFilter().

Referenced by Wt::Widget::setLayout().

00124                                                        {
00125     // we have to deconstify here. We cannot deliver event to const objects
00126     Object *obj = const_cast<Object *>(filterObj);
00127     eventFilters_.push_back(obj);
00128     obj->destroyed.connect(sigc::slot1<void, const Object *>(
00129                                sigc::mem_fun(*this, &Object::removeEventFilter)));
00130 }

Here is the call graph for this function:

bool Wt::LayoutItem::invalidated ( ) const [inline, protected, inherited]

Definition at line 227 of file layout.h.

References Wt::LayoutItem::invalidated_.

Referenced by Wt::Layout::minimumSize(), and Wt::Layout::sizeHint().

00227                              {
00228         return invalidated_;
00229     }

void Wt::LayoutItem::invalidateRecursively ( ) [protected, inherited]

Definition at line 28 of file layout.cpp.

References Wt::LayoutIterator::finish(), Wt::LayoutItem::invalidated_, Wt::LayoutItem::isNonEmpty(), Wt::LayoutItem::iterator(), Wt::LayoutIterator::start(), and trace.

Referenced by Wt::Layout::enforce().

00028                                        {
00029     // if null means empty item. don't bother (used on Grid)
00030     // we can't handle it in isEmpty() because it is virtual
00031     // and the null dereference crashes
00032     trace("layout") << "Trying to invalidate " << this
00033     << " == "  << dynamic_cast<Object *>(this) << std::endl;
00034     if (isNonEmpty()) {
00035         trace("layout") << "Invalidating " << this << std::endl;
00036         LayoutIterator it = iterator();
00037         invalidated_ = true;
00038         for (it.start(); !it.finish(); it++) {
00039             LayoutItem *li = *it;
00040             li->invalidateRecursively();
00041         }
00042         trace("layout") << "Invalidation finished " << this << std::endl;
00043     }
00044 }

Here is the call graph for this function:

template<typename TEST_TYPE>

bool Wt::LayoutItem::is ( ) const [inline, inherited]

Definition at line 209 of file layout.h.

Referenced by Wt::Cascade::pop(), and Wt::Layout::removeItem().

00209                     {
00210         return (type<TEST_TYPE>() != 0);
00211     }

bool Wt::Layout::isDeleted ( LayoutItem * li ) const [inline, protected, inherited]

Definition at line 314 of file layout.h.

References Wt::Layout::deleted_li_.

Referenced by Wt::Layout::removeItem().

00314                                          {
00315         return deleted_li_ == li;
00316     }

bool Wt::Object::isDescendant ( const Object * p ) const [inherited]

Definition at line 67 of file object.cpp.

References Wt::Object::parent().

Referenced by Wt::SDLInput::EventInfo::EventInfo(), and Wt::SDLInput::handleKeyEvent().

00067                                                {
00068     if (!p)
00069         return false;
00070
00071     const Object *q = this;
00072
00073     do {
00074         if (p == q)
00075             return true;
00076     } while ((q = q->parent()));
00077
00078     return false;
00079 }

Here is the call graph for this function:

template<typename Container>

virtual bool Wt::LayoutStdContainer< Container >::isEmpty ( ) const [inline, virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 490 of file layout.h.

00490                                  {
00491         return Container::empty();
00492     }

bool Wt::LayoutItem::isNonEmpty ( ) const [inline, inherited]

Definition at line 188 of file layout.h.

References Wt::LayoutItem::isEmpty().

Referenced by Wt::LayoutItem::invalidateRecursively().

00188                             {
00189         return (this) ? !isEmpty() : false;
00190     }

Here is the call graph for this function:

bool Wt::Layout::isTopLevel ( ) const [inherited]

Definition at line 129 of file layout.cpp.

References Wt::Layout::mainWidget(), and Wt::Object::parent().

Referenced by Wt::Layout::onAboutToChangeAutoAdd(), and Wt::Layout::setGeometry().

00129                               {
00130     return (parent() && mainWidget() == parent());
00131 }

Here is the call graph for this function:

bool Wt::Layout::isWidthPrimaryLength ( ) const [inline, protected, inherited]

Definition at line 321 of file layout.h.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::GridLayout::calcEdge(), Wt::GridLayout::expandingPrimally(), Wt::GridLayout::mayGrowPrimally(), Wt::GridLayout::primaryCellItemLength(), Wt::GridLayout::primaryCellLength(), Wt::GridLayout::primaryHintLength(), Wt::GridLayout::primaryMinLength(), Wt::GridLayout::secondaryEdges(), Wt::GridLayout::secondaryEffectiveStretch(), Wt::GridLayout::secondaryExtraSpace(), Wt::GridLayout::secondaryStretch(), and Wt::Box::setStretchFactor().

00321                                       {
00322         return width_as_primary_length;
00323     }

template<typename Container>

virtual LayoutIterator Wt::LayoutStdContainer< Container >::iterator ( ) [inline, virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 509 of file layout.h.

00509                                       {
00510         return LayoutIterator(new LayoutStdContainerIterator<Container>(*this));
00511     }

void Wt::Object::killTimer ( int id ) [inherited]

Definition at line 145 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Timer::stop().

00145                              {
00146     delete timers_[id];
00147     timers_.erase(id);
00148 }

void Wt::Object::killTimers ( ) [inherited]

Definition at line 150 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Object::~Object().

00150                         {
00151     uint n = timers_.size() + 1;
00152     for (uint i = 1; i < n; i++) {
00153         delete timers_[i];
00154     }
00155     timers_.clear();
00156 }

Widget * Wt::Layout::mainWidget ( ) const [inherited]

Definition at line 118 of file layout.cpp.

References Wt::Object::parent().

Referenced by Wt::Layout::enforce(), Wt::Layout::isTopLevel(), Wt::Layout::postLayoutHintEvent(), Wt::BoxLayout::setGeometry(), Wt::Layout::setGeometry(), Wt::GridLayout::setGeometry(), and Wt::CascadeLayout::setGeometry().

00118                                  {
00119     const Object *p = this;
00120     while ((p = p->parent())) {
00121         Widget *w = dynamic_cast<Widget *>(const_cast<Object *>(p));
00122         if (w) {
00123             return w;
00124         }
00125     }
00126     return 0;
00127 }

Here is the call graph for this function:

void Wt::Layout::markDeleted ( LayoutItem * li ) [inline, protected, inherited]

Definition at line 311 of file layout.h.

References Wt::Layout::deleted_li_.

Referenced by Wt::Layout::on_wobject_item_death(), and Wt::Layout::~Layout().

00311                                      {
00312         deleted_li_ = li;
00313     }

virtual Size Wt::LayoutItem::maximumSize ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 155 of file layout.h.

References Wt::LayoutItem::maximum_size_.

Referenced by Wt::Layout::adjustMaximumSize(), Wt::Widget::maximumSize(), and Wt::Layout::setGeometry().

00155                                      {
00156         return maximum_size_;
00157     }

bool Wt::Layout::mayGrowPrimally ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 400 of file layout.cpp.

References Wt::SizePolicy::mayGrowHorizontally(), Wt::SizePolicy::mayGrowVertically(), and Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00400                                                        {
00401     return (width_as_primary_length) ?
00402            sp.mayGrowHorizontally() : sp.mayGrowVertically();
00403 }

Here is the call graph for this function:

bool Wt::Layout::mayShrinkPrimally ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 405 of file layout.cpp.

References Wt::SizePolicy::mayShrinkHorizontally(), Wt::SizePolicy::mayShrinkVertically(), and Wt::Layout::width_as_primary_length.

00405                                                          {
00406     return (width_as_primary_length) ?
00407            sp.mayShrinkHorizontally() : sp.mayShrinkVertically();
00408 }

Here is the call graph for this function:

Size Wt::Layout::minimumSize ( ) const [virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 415 of file layout.cpp.

References Wt::LayoutItem::invalidated(), and Wt::LayoutItem::minimumSize().

Referenced by Wt::GridLayout::calcEdge(), Wt::Layout::enforce(), Wt::Widget::minimumSize(), Wt::BoxLayout::setGeometry(), and Wt::Layout::setGeometry().

00415                                {
00416     if (invalidated()) {
00417         Layout &self(*const_cast<Layout *>(this));
00418         self.validate();
00419     }
00420     return LayoutItem::minimumSize();
00421 }

Here is the call graph for this function:

const std::string& Wt::Object::name ( ) const [inline, inherited]

Definition at line 124 of file object.h.

References Wt::Object::name_.

Referenced by Wt::operator<<(), Wt::Application::parseArgs(), and Wt::PushButton::setButtonSize().

00124                                   {
00125         return name_;
00126     }

bool Wt::Layout::onAboutToChangeAutoAdd ( bool auto_add ) [protected, virtual, inherited]

Definition at line 133 of file layout.cpp.

References Wt::Layout::isTopLevel().

Referenced by Wt::Layout::init().

00133                                                  {
00134     return (auto_add && !isTopLevel());
00135 }

Here is the call graph for this function:

int Wt::Layout::onSpacingOverride ( int spacing ) [protected, virtual, inherited]

Definition at line 46 of file layout.cpp.

References Wt::Layout::margin.

Referenced by Wt::Layout::init().

00046                                     {
00047     return (sp == -1) ? static_cast<int>(margin) : sp;
00048 }

template<typename Container>

Compound::LayoutItemValue& Wt::LayoutStdContainer< Container >::operator[] ( const LayoutItem * li ) [inline, protected, inherited]

Definition at line 528 of file layout.h.

00528                                                                        {
00529         return value(li);
00530     }

Object* Wt::Object::parent ( ) const [inline, inherited]

Definition at line 53 of file object.h.

References Wt::Object::parent_.

Referenced by Wt::Widget::event(), Wt::Widget::focusNextPrevChild(), Wt::Window::Frame::Frame(), Wt::Widget::is_hidden(), Wt::Object::isDescendant(), Wt::Layout::isTopLevel(), Wt::Layout::Layout(), Wt::Widget::lower(), Wt::Layout::mainWidget(), Wt::operator<<(), Wt::Widget::paintEvent(), Wt::Widget::parentWidget(), Wt::Application::postEvent(), Wt::Widget::raise(), Wt::Widget::updateGeometry(), Wt::Widget::Widget(), Wt::Window::Window(), Wt::Layout::~Layout(), and Wt::Widget::~Widget().

00053                            {
00054         return parent_;
00055     };

void Wt::Layout::postLayoutHintEvent ( ) [protected, inherited]

Definition at line 137 of file layout.cpp.

References Wt::Layout::mainWidget(), and Wt::Application::postEvent().

Referenced by Wt::Layout::addItem(), Wt::Layout::init(), Wt::CascadeLayout::init(), Wt::Layout::removeItem(), Wt::GridLayout::setColStretch(), and Wt::GridLayout::setRowStretch().

00137                                  {
00138     if (mainWidget()) {
00139         Application::postEvent(mainWidget(), new LayoutHintEvent());
00140     }
00141 }

Here is the call graph for this function:

int Wt::Layout::preferredLength	(	const LayoutItem *	li,
		bool	expand
	)			const `[protected, inherited]`

Definition at line 357 of file layout.cpp.

References Wt::LayoutItem::minimumSize(), Wt::Layout::primaryLength(), and Wt::LayoutItem::sizeHint().

Referenced by Wt::BoxLayout::setGeometry().

00357                                                                    {
00358     return primaryLength((expand) ? li->sizeHint() : li->minimumSize());
00359 }

Here is the call graph for this function:

void Wt::BoxLayout::prependItem ( LayoutItem * li ) [virtual, inherited]

Definition at line 436 of file layout.cpp.

References Wt::Layout::addItem().

Referenced by Wt::BoxLayout::addItem().

00436                                           {
00437     Layout::addItem(li);
00438     push_front(li);
00439 }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::primaryLength ( const TYPE & t ) const [inline, protected, inherited]

Definition at line 326 of file layout.h.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::GridLayout::calcEdge(), Wt::Layout::preferredLength(), Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00326                                            {
00327         return (width_as_primary_length) ? t.width() : t.height();
00328     }

template<typename TYPE>

int Wt::Layout::primaryOffset ( const TYPE & t ) const [protected, inherited]

Definition at line 367 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00367                                              {
00368     return (width_as_primary_length) ? t.left() : t.top();
00369 }

int Wt::Layout::primaryStretch ( const SizePolicy & sp ) const [protected, inherited]

Definition at line 395 of file layout.cpp.

References Wt::SizePolicy::horizontalStretch, Wt::SizePolicy::verticalStretch, and Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00395                                                      {
00396     return (width_as_primary_length) ?
00397            sp.horizontalStretch : sp.verticalStretch;
00398 }

void Wt::Object::removeChild ( Object * obj ) [virtual, inherited]

Definition at line 88 of file object.cpp.

References Wt::Event::ChildRemoved, Wt::Object::children_, Wt::Object::parent_, and Wt::Application::postEvent().

Referenced by Wt::Object::reparent(), and Wt::Object::~Object().

00088                                     {
00089     List::iterator end = children_.end();
00090     List::iterator p = find(children_.begin(), end, obj);
00091
00092     if (p != end) {
00093         children_.erase(p);
00094         obj->parent_ = 0;
00095         Event *child_event = new ChildEvent(Event::ChildRemoved, obj);
00096         Application::postEvent(this, child_event);
00097     }
00098 }

Here is the call graph for this function:

void Wt::Object::removeEventFilter ( const Object * obj ) [inherited]

Definition at line 132 of file object.cpp.

References Wt::Object::eventFilters_.

Referenced by Wt::Object::installEventFilter().

00132                                                 {
00133     List::iterator p, end(eventFilters_.end());
00134     p = find(eventFilters_.begin(), end, obj);
00135     if (p != end)
00136         eventFilters_.erase(p);
00137 }

template<typename Container>

virtual bool Wt::LayoutStdContainer< Container >::removeItem ( LayoutItem * li ) [inline, virtual, inherited]

returns true if a layoutitem is actually removed

Reimplemented from Wt::Layout.

Definition at line 500 of file layout.h.

Referenced by Wt::GridLayout::addItem(), and Wt::Cascade::pop().

00500                                             {
00501         bool exist = Layout::removeItem(li);
00502         if (exist) {
00503             Container::remove
00504                 (li);
00505         }
00506         return exist;
00507     }

void Wt::Object::reparent ( Object * new_parent ) [inherited]

Definition at line 100 of file object.cpp.

References Wt::Object::insertChild(), Wt::Object::parent_, Wt::Object::removeChild(), and trace.

Referenced by Wt::Layout::addItem(), Wt::Widget::reparent(), and Wt::Widget::setLayout().

00100                                         {
00101     if (parent_ == new_parent)
00102         return;
00103     trace("obj") << "Reparenting " <<  this << std::endl;
00104
00105     if (parent_) {
00106         trace("obj") << "   Leaving parent " <<  parent_ << std::endl;
00107         parent_->removeChild(this);
00108     }
00109     if (new_parent) {
00110         trace("obj") << "   Going to new parent " <<  new_parent << std::endl;
00111         new_parent->insertChild(this);
00112     }
00113     parent_ = new_parent;
00114 }

Here is the call graph for this function:

template<typename TYPE>

int Wt::Layout::secondaryLength ( const TYPE & t ) const [protected, inherited]

Definition at line 362 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry(), and Wt::BoxLayout::validate().

00362                                                {
00363     return (width_as_primary_length) ? t.height() : t.width();
00364 }

template<typename TYPE>

int Wt::Layout::secondaryOffset ( const TYPE & t ) const [protected, inherited]

Definition at line 372 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::BoxLayout::setGeometry().

00372                                                {
00373     return (width_as_primary_length) ? t.top() : t.left();
00374 }

void Wt::BoxLayout::setGeometry ( const Rect & r ) [virtual, inherited]

fixup all managed widgets geometry

Todo:: find biggest offender not the first one

Reimplemented from Wt::Layout.

Definition at line 490 of file layout.cpp.

References Wt::Rect::align(), Wt::Layout::expandingPrimally(), Wt::LayoutStdContainerIterator< Container >::finish(), Wt::LayoutItem::geometry(), Wt::Layout::getPoint(), Wt::Layout::getSize(), Wt::Size::height(), Wt::Layout::mainWidget(), Wt::Layout::margin, Wt::Layout::mayGrowPrimally(), Wt::Layout::minimumSize(), Wt::Layout::preferredLength(), Wt::Layout::primaryLength(), Wt::Layout::primaryOffset(), Wt::Layout::primaryStretch(), Wt::Layout::secondaryLength(), Wt::Layout::secondaryOffset(), Wt::Layout::setGeometry(), Wt::Layout::sizeHint(), Wt::Layout::spacing, Wt::LayoutStdContainerIterator< Container >::start(), trace, Wt::LayoutStdContainer< Container >::value(), and Wt::Size::width().

00490                                          {
00491     BoxLayoutIterator it(*this);
00492     trace("layout") << this << " BoxLayout::setGeometry()" << r << std::endl;
00493
00494     // store geometry first
00495     Layout::setGeometry(r);
00496     // if smaller than the minSize it is possible that
00497     // we have to reacquire the size to perform the layout
00498     Rect rect = LayoutItem::geometry() >> margin;
00499
00500     // obvious optimization. If they are empty do nothing
00501     bool empty = true;
00502     for (it.start(); !it.finish(); it++) {
00503         LayoutItem *li = *it;
00504         if (!li->isEmpty()) {
00505             empty = false;
00506             break;
00507         }
00508     }
00509     if (empty)
00510         return;
00511
00512     int expansion = primaryLength(rect) - primaryLength(sizeHint());
00513     bool expand = expansion >= 0;
00514
00515     if (!expand) {
00516         expansion = primaryLength(rect) - primaryLength(minimumSize());
00517     }
00518
00519     // we have to expand
00520     int stretch_sum = 0;
00521     int may_grow_num;
00522     int unclaimed_space;
00523
00524     // initialize effective stretch to zero
00525     for (it.start(); !it.finish(); it++) {
00526         LayoutItem *li = *it;
00527         value(li).stretch = 0;
00528     }
00529
00530     // first check if there are any stretch values
00531     may_grow_num = 0;
00532     unclaimed_space = 0;
00533     for (it.start(); !it.finish(); it++) {
00534         LayoutItem *li = *it;
00535         int li_stretch = primaryStretch(li->sizePolicy());
00536         if (!li->isEmpty() && li_stretch &&
00537                 mayGrowPrimally(li->sizePolicy())) {
00538             unclaimed_space += preferredLength(li, expand);
00539             stretch_sum += li_stretch;
00540             value(li).stretch = li_stretch;
00541             may_grow_num++;
00542         }
00543     }
00544
00545     // check if we have to split the extra space among expanding
00546     if (!stretch_sum) {
00547         may_grow_num = 0;
00548         unclaimed_space = 0;
00549         for (it.start(); !it.finish(); it++) {
00550             LayoutItem *li = *it;
00551             if (!li->isEmpty() && expandingPrimally(li->sizePolicy())) {
00552                 unclaimed_space += preferredLength(li, expand);
00553                 value(li).stretch = 1;
00554                 may_grow_num++;
00555             }
00556         }
00557         stretch_sum = may_grow_num;
00558     }
00559
00560     // check if we have to split the extra space among may Grow simply (preffered)
00561     if (!may_grow_num) {
00562         unclaimed_space = 0;
00563         for (it.start(); !it.finish(); it++) {
00564             LayoutItem *li = *it;
00565             if (!li->isEmpty() && mayGrowPrimally(li->sizePolicy())) {
00566                 unclaimed_space += preferredLength(li, expand);
00567                 value(li).stretch = 1;
00568                 may_grow_num++;
00569             }
00570         }
00571         stretch_sum = may_grow_num;
00572     }
00573
00574     // none of the fuckers grows -- all fixed size
00575     if (!may_grow_num) {
00576         unclaimed_space = 0;
00577         for (it.start(); !it.finish(); it++) {
00578             LayoutItem *li = *it;
00579             if (!li->isEmpty()) {
00580                 unclaimed_space += preferredLength(li, expand);
00581                 value(li).stretch = 1;
00582                 may_grow_num++;
00583             }
00584         }
00585         stretch_sum = may_grow_num;
00586     }
00587
00588     // Now we will remove offenders until we can distribute evenly
00589     int available_space;
00590     int claimed_space;
00591 restart:
00592     /// \todo find biggest offender not the first one
00593     available_space = expansion + unclaimed_space;
00594     claimed_space = 0;
00595     for (it.start(); !it.finish(); it++) {
00596         LayoutItem *li = *it;
00597         if (!li->isEmpty() && value(li).stretch) {
00598             int li_p = (value(li).stretch *
00599                         available_space) / stretch_sum;
00600             if (li_p < preferredLength(li, expand)) {
00601                 // problem: offender found, remove him
00602                 trace("layout", "Removing offender %p with "
00603                       "stretch %d stretch_sum %d\n",
00604                       li, value(li).stretch, stretch_sum);
00605                 unclaimed_space -= preferredLength(li, expand);
00606                 stretch_sum -= value(li).stretch;
00607                 value(li).stretch = 0;
00608                 may_grow_num--;
00609                 goto restart;
00610             }
00611             claimed_space += li_p;
00612         }
00613     }
00614
00615     // now we have to distribute evenly the difference
00616     // that got truncated in the integer division
00617     int rest_space = available_space - claimed_space;
00618     int div = 0;
00619     int modulo = 0;
00620     if (may_grow_num) {
00621         div = rest_space / may_grow_num;
00622         modulo = rest_space % may_grow_num;
00623     }
00624
00625     int count = 0;
00626     for (it.start(); !it.finish(); it++) {
00627         LayoutItem *li = *it;
00628         if (value(li).stretch) {
00629             value(li).extra_space = div + (count < modulo) ? 1 : 0;
00630         } else {
00631             value(li).extra_space = 0;
00632         }
00633         count++;
00634     }
00635
00636     // finally place them
00637     int covered = primaryOffset(rect);
00638     int sp = spacing;
00639     for (it.start(); !it.finish(); it++) {
00640         LayoutItem *li = *it;
00641
00642         if (li->isEmpty())
00643             continue;
00644
00645         int space = ( (value(li).stretch) ?
00646                       (value(li).stretch * available_space) / stretch_sum :
00647                       preferredLength(li, expand) ) + value(li).extra_space;
00648         const Size& container_size = getSize(space,
00649                                              secondaryLength(rect));
00650         const Size& hint_size = li->sizeHint();
00651         const Size& min_size = li->minimumSize();
00652         const int w = (li->sizePolicy().mayGrowHorizontally())
00653                       ? container_size.width()
00654                       : (hint_size.width() <= container_size.width())
00655                       ? hint_size.width()
00656                       : min_size.width();
00657         const int h = (li->sizePolicy().mayGrowVertically())
00658                       ? container_size.height()
00659                       : (hint_size.height() <= container_size.height())
00660                       ? hint_size.height()
00661                       : min_size.height();
00662         const Size& cell_size = Size(w, h);
00663
00664         trace("layout", "BoxLayout:: Allocating space %d for layoutItem %p\n", space, li);
00665         trace("layout") <<  "BoxLayout:: Container size: "
00666         << container_size << " cell_size " << cell_size << std::endl;
00667         li->setGeometry(
00668             Rect::align(Rect(mainWidget()->mapFromParent(getPoint(covered,
00669                              secondaryOffset(rect))), container_size),
00670                         cell_size, li->alignment));
00671         covered += space + sp;
00672     }
00673 }

Here is the call graph for this function:

virtual void Wt::LayoutItem::setMaximumSize ( const Size & size ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 158 of file layout.h.

References Wt::LayoutItem::maximum_size_.

Referenced by Wt::Layout::adjustMaximumSize(), and Wt::Widget::setMaximumSize().

00158                                                   {
00159         maximum_size_ = size;
00160     }

virtual void Wt::LayoutItem::setMinimumSize ( const Size & size ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 151 of file layout.h.

References Wt::LayoutItem::minimum_size_.

Referenced by Wt::Widget::setMinimumSize(), Wt::BoxLayout::validate(), Wt::GridLayout::validate(), and Wt::CascadeLayout::validate().

00151                                                   {
00152         minimum_size_ = size;
00153     }

virtual void Wt::LayoutItem::setSizeHint ( const Size & size ) [inline, protected, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 231 of file layout.h.

References Wt::LayoutItem::size_hint_.

Referenced by Wt::Widget::setSizeHint(), Wt::BoxLayout::validate(), Wt::GridLayout::validate(), and Wt::CascadeLayout::validate().

00231                                                {
00232         size_hint_ = size;
00233     }

virtual void Wt::LayoutItem::setSizePolicy ( const SizePolicy & size_policy ) [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 166 of file layout.h.

References Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::setSizePolicy().

00166                                                               {
00167         size_policy_ = size_policy;
00168     }

void Wt::Layout::setWidthasPrimaryLength ( bool width = true ) [protected, inherited]

Definition at line 353 of file layout.cpp.

References Wt::Layout::width_as_primary_length.

Referenced by Wt::GridLayout::calcEdge().

00353                                                {
00354     width_as_primary_length = width;
00355 }

Size Wt::Layout::sizeHint ( ) const [virtual, inherited]

Reimplemented from Wt::LayoutItem.

Definition at line 423 of file layout.cpp.

References Wt::LayoutItem::invalidated(), and Wt::LayoutItem::sizeHint().

Referenced by Wt::GridLayout::calcEdge(), Wt::Layout::enforce(), Wt::BoxLayout::setGeometry(), Wt::Layout::setGeometry(), Wt::CascadeLayout::setGeometry(), and Wt::Widget::sizeHint().

00423                             {
00424     if (invalidated()) {
00425         Layout &self(*const_cast<Layout *>(this));
00426         self.validate();
00427     }
00428     return LayoutItem::sizeHint();
00429 }

Here is the call graph for this function:

virtual SizePolicy Wt::LayoutItem::sizePolicy ( ) const [inline, virtual, inherited]

Reimplemented in Wt::Widget.

Definition at line 162 of file layout.h.

References Wt::LayoutItem::size_policy_.

Referenced by Wt::Widget::sizePolicy().

00162                                           {
00163         return size_policy_;
00164     }

int Wt::Object::startTimer ( int interval ) [inherited]

Definition at line 139 of file object.cpp.

References Wt::Object::timers_.

Referenced by Wt::Timer::start().

00139                                    {
00140     int id = timers_.size() + 1;
00141     timers_[id] = new SDLTimer(this, id, interval);
00142     return id;
00143 }

virtual void Wt::Object::timerEvent ( TimerEvent * ) [inline, protected, virtual, inherited]

Reimplemented in Wt::Timer.

Definition at line 148 of file object.h.

Referenced by Wt::Object::event(), and Wt::Timer::timerEvent().

00148 {}

Object * Wt::Object::topParent ( ) const [inherited]

returns top level parent: it may return itself

Definition at line 116 of file object.cpp.

References Wt::Object::parent_.

Referenced by Wt::Widget::topParentWidget().

00116                                 {
00117     const Object *p = this;
00118     while (p->parent_) {
00119         p = p->parent_;
00120     }
00121     return const_cast<Object *>(p);
00122 }

template<typename TEST_TYPE>

TEST_TYPE Wt::LayoutItem::type ( ) const [inline, inherited]

Definition at line 204 of file layout.h.

Referenced by Wt::Layout::addItem().

00204                            {
00205         return dynamic_cast<TEST_TYPE>(const_cast<LayoutItem *>(this));
00206     }

void Wt::BoxLayout::validate ( ) [protected, virtual, inherited]

let's calc again sizeHint, minimumSize etc

Reimplemented from Wt::LayoutItem.

Definition at line 457 of file layout.cpp.

References Wt::LayoutStdContainerIterator< Container >::finish(), Wt::Layout::getSize(), Wt::Layout::primaryLength(), Wt::Layout::secondaryLength(), Wt::LayoutItem::setMinimumSize(), Wt::LayoutItem::setSizeHint(), Wt::Layout::spacing, Wt::LayoutStdContainerIterator< Container >::start(), trace, and Wt::LayoutItem::validate().

00457                          {
00458     int hint_p = 0, hint_s = 0;
00459     int min_p = 0, min_s = 0;
00460     int count = 0;
00461     int sp;
00462
00463     trace("layout") << this << " BoxLayout::invalidate()" << std::endl;
00464
00465     BoxLayoutIterator it(*this);
00466     for (it.start(); !it.finish(); it++) {
00467         LayoutItem *li = *it;
00468         if (!li->isEmpty()) {
00469             min_p += primaryLength(li->minimumSize());
00470             min_s = std::max(min_s, secondaryLength(li->minimumSize()));
00471             hint_p += primaryLength(li->sizeHint());
00472             hint_s = std::max(hint_s, secondaryLength(li->sizeHint()));
00473             trace("layout", "Up to item %d (%p) min_size %d hint_size %d\n", count, li, min_p, hint_p);
00474             count++;
00475         }
00476     }
00477     // don't forget spacing
00478     sp = spacing;
00479     if (count) {
00480         min_p += (count - 1) * sp;
00481         hint_p += (count - 1) * sp;
00482     }
00483
00484     setSizeHint(getSize(hint_p, hint_s));
00485     setMinimumSize(getSize(min_p, min_s));
00486     Layout::validate();
00487 }

Here is the call graph for this function:

template<typename Container>

Compound::LayoutItemValue& Wt::LayoutStdContainer< Container >::value ( const LayoutItem * li ) [inline, protected, inherited]

Definition at line 520 of file layout.h.

Referenced by Wt::GridLayout::addItem(), Wt::GridLayout::insert(), and Wt::BoxLayout::setGeometry().

00520                                                                   {
00521         if (li != cached_li_) {
00522             cached_li_ = li;
00523             cached_it_ = find(Container::begin(), Container::end(), li);
00524         }
00525         return (cached_it_ != Container::end()) ? *cached_it_ : null_;
00526     }

friend class Box [friend, inherited]

Definition at line 571 of file layout.h.

WVar<int> Wt::LayoutItem::alignment [inherited]

Reimplemented in Wt::Label.

Definition at line 218 of file layout.h.

Referenced by Wt::PushButton::drawButtonLabel(), Wt::CascadeLayout::init(), Wt::Cascade::setAlignment(), Wt::Widget::setBackgroundPixmap(), Wt::Widget::setBackgroundPixmapFlags(), and Wt::CascadeLayout::setGeometry().

WVar<bool> Wt::Layout::autoAdd [inherited]

Definition at line 304 of file layout.h.

Referenced by Wt::Box::Box(), Wt::Cascade::Cascade(), Wt::Layout::eventFilter(), Wt::Grid::Grid(), and Wt::Layout::init().

const int Wt::LayoutItem::default_hint_size = 100 [static, inherited]

Definition at line 216 of file layout.h.

const int Wt::LayoutItem::default_max_size = ((int) ((unsigned int) (~0) >> 1)) [static, inherited]

Definition at line 214 of file layout.h.

const int Wt::LayoutItem::default_min_size = 30 [static, inherited]

Definition at line 215 of file layout.h.

Signal01<void, const Object *> Wt::Object::destroyed [inherited]

signals

Definition at line 139 of file object.h.

Referenced by Wt::Layout::addItem(), Wt::Object::installEventFilter(), and Wt::Object::~Object().

Direction Wt::BoxLayout::direction [inherited]

Definition at line 606 of file layout.h.

Referenced by Wt::BoxLayout::addItem().

WVar<int> Wt::Layout::margin [inherited]

Definition at line 302 of file layout.h.

Referenced by Wt::Layout::adjustMaximumSize(), Wt::Layout::init(), Wt::Widget::maximumSize(), Wt::Widget::minimumSize(), Wt::Frame::onLayoutChange(), Wt::Layout::onSpacingOverride(), Wt::BoxLayout::setGeometry(), Wt::Layout::setGeometry(), Wt::GridLayout::setGeometry(), Wt::CascadeLayout::setGeometry(), Wt::Widget::setMaximumSize(), Wt::Widget::setMinimumSize(), and Wt::Widget::sizeHint().

WVar<int> Wt::Layout::spacing [inherited]

Definition at line 303 of file layout.h.

Referenced by Wt::Layout::init(), Wt::Frame::onLayoutChange(), Wt::BoxLayout::setGeometry(), Wt::GridLayout::setGeometry(), Wt::BoxLayout::validate(), and Wt::GridLayout::validate().

Wt::VBoxLayout Class Reference

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation


Public Types
	LeftToRight
	RightToLeft
	TopToBottom
	BottomToTop
	Down = TopToBottom
	Up = BottomToTop
enum	Direction { LeftToRight, RightToLeft, TopToBottom, BottomToTop, Down = TopToBottom, Up = BottomToTop }
typedef Container::value_type	Compound
typedef std::list< Object * >	List
Public Member Functions
	VBoxLayout (Widget *parent, int margin=0, int spacing=-1, const std::string &name="VBoxLayout::anon")
	VBoxLayout (Layout *parent_layout, int margin=0, int spacing=-1, const std::string &name="VBoxLayout::anon")
	VBoxLayout (int spacing=-1, const std::string &name="VBoxLayout::anon")
virtual void	appendItem (LayoutItem *li)
virtual void	prependItem (LayoutItem *li)
virtual void	addItem (LayoutItem *li)
virtual void	setGeometry (const Rect &r)
	fixup all managed widgets geometry
virtual bool	isEmpty () const
virtual bool	removeItem (LayoutItem *li)
	returns true if a layoutitem is actually removed
virtual LayoutIterator	iterator ()
Widget *	mainWidget () const
bool	isTopLevel () const
virtual Size	sizeHint () const
virtual Size	minimumSize () const
virtual bool	eventFilter (Object , Event )
Object *	parent () const
const List &	children () const
List &	children ()
bool	isDescendant (const Object *p) const
virtual void	insertChild (Object *obj)
virtual void	removeChild (Object *obj)
void	reparent (Object *new_parent)
template<typename T>
void	deleteFirstChild ()
template<typename T>
void	deleteLastChild ()
template<typename T>
void	deleteAllChildren ()
Object *	topParent () const
	returns top level parent: it may return itself
const std::string &	name () const
void	installEventFilter (const Object *filterObj)
void	removeEventFilter (const Object *obj)
int	startTimer (int interval)
void	killTimer (int id)
void	killTimers ()
virtual bool	event (Event *e)
	event handling
virtual void	setMinimumSize (const Size &size)
virtual Size	maximumSize () const
virtual void	setMaximumSize (const Size &size)
virtual SizePolicy	sizePolicy () const
virtual void	setSizePolicy (const SizePolicy &size_policy)
virtual SizePolicy::ExpandData	expanding () const
virtual const Rect &	geometry () const
	return the widget's geometry relative to its parent
bool	isNonEmpty () const
virtual bool	hasHeightForWidth () const
virtual int	heightForWidth (int) const
template<typename TEST_TYPE>
TEST_TYPE	type () const
template<typename TEST_TYPE>
bool	is () const
Public Attributes
Direction	direction
WVar< int >	margin
WVar< int >	spacing
WVar< bool >	autoAdd
Signal01< void, const Object * >	destroyed
	signals
WVar< int >	alignment
Static Public Attributes
static const int	default_max_size = ((int) ((unsigned int) (~0) >> 1))
static const int	default_min_size = 30
static const int	default_hint_size = 100
Protected Member Functions
virtual void	validate ()
	let's calc again sizeHint, minimumSize etc
virtual bool	exists (const LayoutItem *li) const
Compound::LayoutItemValue &	value (const LayoutItem *li)
Compound::LayoutItemValue &	operator[] (const LayoutItem *li)
virtual bool	onAboutToChangeAutoAdd (bool auto_add)
virtual int	onSpacingOverride (int spacing)
void	adjustMaximumSize (int margin)
void	markDeleted (LayoutItem *li)
bool	isDeleted (LayoutItem *li) const
void	enforce ()
	enforces the layout in the mainWidget() children and layouts
void	postLayoutHintEvent ()
void	setWidthasPrimaryLength (bool width=true)
bool	isWidthPrimaryLength () const
template<typename TYPE>
int	primaryLength (const TYPE &t) const
int	preferredLength (const LayoutItem *li, bool expand) const
template<typename TYPE>
int	secondaryLength (const TYPE &t) const
template<typename TYPE>
int	primaryOffset (const TYPE &t) const
template<typename TYPE>
int	secondaryOffset (const TYPE &t) const
Point	getPoint (int primary_offset, int secondary_offset) const
Size	getSize (int primary, int secondary) const
Rect	getRect (int primary_offset, int secondary_offset, int primary_size, int secondary_size) const
int	primaryStretch (const SizePolicy &sp) const
bool	mayGrowPrimally (const SizePolicy &sp) const
bool	mayShrinkPrimally (const SizePolicy &sp) const
bool	expandingPrimally (const SizePolicy &sp) const
virtual void	childEvent (ChildEvent *)
	event handling specialization
virtual void	customEvent (CustomEvent *)
virtual void	timerEvent (TimerEvent *)
bool	filterEvent (Event *)
void	invalidateRecursively ()
bool	invalidated () const
virtual void	setSizeHint (const Size &size)
Friends
class	Box
