Wt::Color

Wt::Color Class Reference

using 8-bits per red, green, blue, and alpha channels More...

#include <color.h>

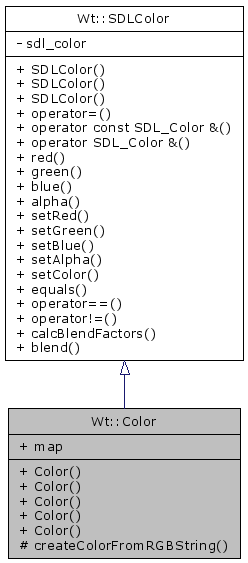

Inheritance diagram for Wt::Color:

Inheritance graph
[legend]

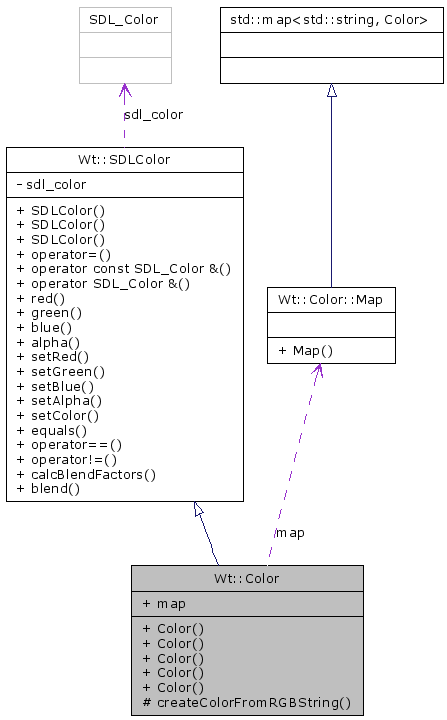

Collaboration diagram for Wt::Color:

Collaboration graph
[legend]
List of all members.

Public Types

 Transparent = SDL_ALPHA_TRANSPARENT
 Opaque = SDL_ALPHA_OPAQUE
enum  { Transparent = SDL_ALPHA_TRANSPARENT, Opaque = SDL_ALPHA_OPAQUE }
 The alpha channel values for transparent and opaque. More...

Public Member Functions

 Color ()
 Color (Uint8 red, Uint8 green, Uint8 blue, Uint8 alpha=Opaque)
 Construct from a triple/quadruple. (R, G, B, A).
 Color (const SDLColor &color)
 constructor from SDLColor for implicit conversions
 Color (const std::string &name)
 Construct a named color (as find()).
 Color (const char *name)
 same thing, so compiler will autocreate temporaries from "foo"
 operator const SDL_Color & () const
 operator SDL_Color & ()
int red () const
int green () const
int blue () const
int alpha () const
void setRed (int red)
void setGreen (int green)
void setBlue (int blue)
void setAlpha (int alpha)
void setColor (int red, int green, int blue, int alpha)
bool equals (const SDLColor &other) const
 Compares colors (without alpha channel !).
bool operator== (const SDLColor &other) const
bool operator!= (const SDLColor &other) const
 Inequality comparison.

Static Public Member Functions

static void calcBlendFactors (int factor, int &new_factor, int &old_factor)
static SDLColor blend (const SDLColor &old_color, int old_factor, const SDLColor &new_color, int new_factor, int new_alpha_factor=Transparent, int old_alpha_factor=Opaque)

Static Public Attributes

static Map map

Static Protected Member Functions

static Color createColorFromRGBString (const std::string &rgb)

Classes

class  Map

Detailed Description

using 8-bits per red, green, blue, and alpha channels

Definition at line 31 of file color.h.

Member Enumeration Documentation

anonymous enum [inherited]

The alpha channel values for transparent and opaque.

Enumerator:
Transparent
Opaque

Definition at line 111 of file sdlcolor.h.

00111          {
00112         Transparent = SDL_ALPHA_TRANSPARENT,
00113         Opaque = SDL_ALPHA_OPAQUE
00114     };

Constructor & Destructor Documentation

Wt::Color::Color (  )  [inline]

Definition at line 33 of file color.h.

Referenced by createColorFromRGBString(), and Wt::Color::Map::Map().

00033             : SDLColor() {
00034         assert(sizeof(Color) == sizeof(SDLColor));
00035     }

Wt::Color::Color ( Uint8  red,
Uint8  green,
Uint8  blue,
Uint8  alpha = Opaque
) [inline]

Construct from a triple/quadruple. (R, G, B, A).

Definition at line 38 of file color.h.

00039             : SDLColor(red, green, blue, alpha) {
00040         assert(sizeof(Color) == sizeof(SDLColor));
00041     }

Wt::Color::Color ( const SDLColor &  color  )  [inline]

constructor from SDLColor for implicit conversions

Definition at line 44 of file color.h.

00044                                  : SDLColor(color) {
00045         assert(sizeof(Color) == sizeof(SDLColor));
00046     }

Wt::Color::Color ( const std::string &  name  )

Construct a named color (as find()).

Definition at line 542 of file color.cpp.

References createColorFromRGBString().

00542                                   {
00543     assert(sizeof(Color) == sizeof(SDLColor));
00544     Map::iterator it = map.find(name);
00545     if (it != map.end())
00546         *this = map[name];
00547     else
00548         *this = createColorFromRGBString(name);
00549 }

Here is the call graph for this function:

Wt::Color::Color ( const char *  name  )

same thing, so compiler will autocreate temporaries from "foo"

Definition at line 551 of file color.cpp.

References createColorFromRGBString().

00551                              {
00552     assert(sizeof(Color) == sizeof(SDLColor));
00553     Map::iterator it = map.find(name);
00554     if (it != map.end())
00555         *this = it->second;
00556     else
00557         *this = createColorFromRGBString(std::string(name));
00558 }

Here is the call graph for this function:

Member Function Documentation

int Wt::SDLColor::alpha (  )  const [inline, inherited]

Definition at line 83 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::blend(), Wt::PixmapOf< Wt::SDLSurface >::blitAlphaBlend(), Wt::Painter::drawText(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), Wt::SDLColor::SDLColor(), Wt::SDLColor::setAlpha(), and Wt::SDLColor::setColor().

00083                       {
00084         return sdl_color.unused;
00085     }

static SDLColor Wt::SDLColor::blend ( const SDLColor &  old_color,
int  old_factor,
const SDLColor &  new_color,
int  new_factor,
int  new_alpha_factor = Transparent,
int  old_alpha_factor = Opaque
) [inline, static, inherited]

Definition at line 140 of file sdlcolor.h.

References Wt::SDLColor::alpha(), Wt::SDLColor::blue(), Wt::SDLColor::green(), Wt::SDLColor::red(), and Wt::SDLColor::SDLColor().

Referenced by Wt::PixmapOf< Wt::SDLSurface >::blend(), and Wt::PixmapOf< Wt::SDLSurface >::blitAlphaBlend().

00142                                                                                              {
00143
00144         return SDLColor((new_factor * new_color.red() + old_factor * old_color.red()) / 255,
00145                         (new_factor * new_color.green() + old_factor * old_color.green()) / 255,
00146                         (new_factor * new_color.blue() + old_factor * old_color.blue()) / 255,
00147                         (new_alpha_factor * new_color.alpha() + old_alpha_factor * old_color.alpha()) / 255);
00148     }

Here is the call graph for this function:

int Wt::SDLColor::blue (  )  const [inline, inherited]

Definition at line 79 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::blend(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), Wt::SDLColor::SDLColor(), Wt::SDLColor::setBlue(), and Wt::SDLColor::setColor().

00079                      {
00080         return sdl_color.b;
00081     }

static void Wt::SDLColor::calcBlendFactors ( int  factor,
int &  new_factor,
int &  old_factor
) [inline, static, inherited]

Definition at line 132 of file sdlcolor.h.

References Wt::SDLColor::Opaque.

Referenced by Wt::PixmapOf< Wt::SDLSurface >::blend(), and Wt::PixmapOf< Wt::SDLSurface >::blitAlphaBlend().

00132                                                                                {
00133         // it won't work in previous SDL
00134         assert(Opaque);
00135         // transparent == 0
00136         new_factor = factor;
00137         old_factor = Opaque - new_factor;
00138     }

Color Wt::Color::createColorFromRGBString ( const std::string &  rgb  )  [static, protected]

Definition at line 527 of file color.cpp.

References Color(), Wt::SDLColor::Opaque, and Warn.

Referenced by Color().

00527                                                           {
00528     unsigned int r, g, b, a;
00529     const int conversions = sscanf(rgb.c_str(),
00530                                    "%u %u %u %u", &r, &g, &b, &a);
00531
00532     if (conversions == 4)
00533         return Color(r,g,b,a);
00534
00535     if (conversions == 3)
00536         return Color(r,g,b);
00537
00538     Warn("Resource: error parsing Colorvalue: '%s'\n", rgb.c_str());
00539     return Color(0, 0, 255, Opaque);
00540 }

Here is the call graph for this function:

bool Wt::SDLColor::equals ( const SDLColor &  other  )  const [inline, inherited]

Compares colors (without alpha channel !).

Definition at line 117 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

00117                                              {
00118         return sdl_color.r == other.sdl_color.r &&
00119                sdl_color.g == other.sdl_color.g &&
00120                sdl_color.b == other.sdl_color.b;
00121     }

int Wt::SDLColor::green (  )  const [inline, inherited]

Definition at line 75 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::blend(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), Wt::SDLColor::SDLColor(), Wt::SDLColor::setColor(), and Wt::SDLColor::setGreen().

00075                       {
00076         return sdl_color.g;
00077     }

Wt::SDLColor::operator const SDL_Color & (  )  const [inline, inherited]

Definition at line 63 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

00063                                        {
00064         return sdl_color;
00065     }

Wt::SDLColor::operator SDL_Color & (  )  [inline, inherited]

Definition at line 67 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

00067                             {
00068         return sdl_color;
00069     }

bool Wt::SDLColor::operator!= ( const SDLColor &  other  )  const [inline, inherited]

Inequality comparison.

Definition at line 128 of file sdlcolor.h.

00128                                                  {
00129         return !(*this == other);
00130     }

bool Wt::SDLColor::operator== ( const SDLColor &  other  )  const [inline, inherited]

Definition at line 123 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

00123                                                  {
00124         return (memcmp(&sdl_color, &other.sdl_color, sizeof(SDL_Color)) == 0);
00125     }

int Wt::SDLColor::red (  )  const [inline, inherited]

Definition at line 71 of file sdlcolor.h.

References Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::blend(), Wt::SDLPixelFormat::mapToPixelValue(), Wt::operator<<(), Wt::SDLColor::SDLColor(), Wt::SDLColor::setColor(), and Wt::SDLColor::setRed().

00071                     {
00072         return sdl_color.r;
00073     }

void Wt::SDLColor::setAlpha ( int  alpha  )  [inline, inherited]

Definition at line 99 of file sdlcolor.h.

References Wt::SDLColor::alpha(), and Wt::SDLColor::sdl_color.

Referenced by Wt::PushButton::drawButton(), and Wt::SDLColor::setColor().

00099                              {
00100         sdl_color.unused = alpha;
00101     }

Here is the call graph for this function:

void Wt::SDLColor::setBlue ( int  blue  )  [inline, inherited]

Definition at line 95 of file sdlcolor.h.

References Wt::SDLColor::blue(), and Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::setColor().

00095                            {
00096         sdl_color.b = blue;
00097     }

Here is the call graph for this function:

void Wt::SDLColor::setColor ( int  red,
int  green,
int  blue,
int  alpha
) [inline, inherited]

Definition at line 103 of file sdlcolor.h.

References Wt::SDLColor::alpha(), Wt::SDLColor::blue(), Wt::SDLColor::green(), Wt::SDLColor::red(), Wt::SDLColor::setAlpha(), Wt::SDLColor::setBlue(), Wt::SDLColor::setGreen(), and Wt::SDLColor::setRed().

Referenced by Wt::SDLColor::SDLColor().

00103                                                            {
00104         setRed(red);
00105         setGreen(green);
00106         setBlue(blue);
00107         setAlpha(alpha);
00108     }

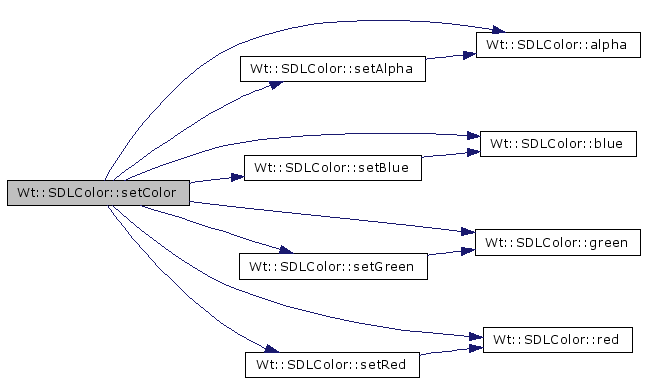

Here is the call graph for this function:

void Wt::SDLColor::setGreen ( int  green  )  [inline, inherited]

Definition at line 91 of file sdlcolor.h.

References Wt::SDLColor::green(), and Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::setColor().

00091                              {
00092         sdl_color.g = green;
00093     }

Here is the call graph for this function:

void Wt::SDLColor::setRed ( int  red  )  [inline, inherited]

Definition at line 87 of file sdlcolor.h.

References Wt::SDLColor::red(), and Wt::SDLColor::sdl_color.

Referenced by Wt::SDLColor::setColor().

00087                          {
00088         sdl_color.r = red;
00089     }

Here is the call graph for this function:

Member Data Documentation

Color::Map Wt::Color::map [static]

Definition at line 60 of file color.h.

The documentation for this class was generated from the following files:
